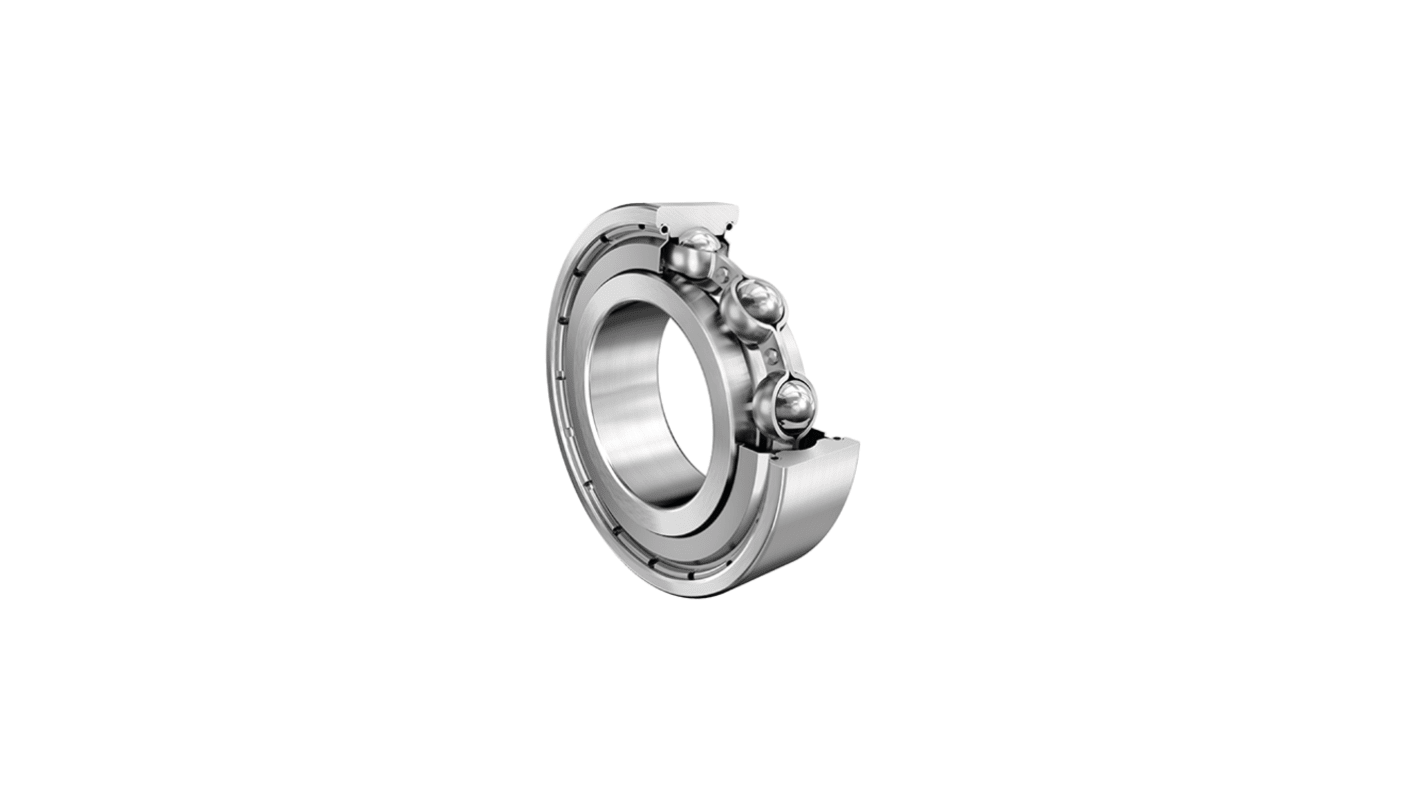

FAG 6314-Z-C3 1 Row Ball Bearing - 70 mm ID, 150 mm OD
- RS Stock No.:
- 312-887
- Mfr. Part No.:
- 6314-Z-C3
- Brand:
- FAG
Subtotal (1 unit)*
£134.82
(exc. VAT)
£161.78
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 17 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £134.82 |
*price indicative
- RS Stock No.:
- 312-887
- Mfr. Part No.:
- 6314-Z-C3
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Product Type | Ball Bearing | |
| Inside Diameter | 70mm | |
| Outside Diameter | 150mm | |
| Race Width | 35mm | |
| Race Material | Steel | |
| Ball Material | Steel | |
| Cage Material | Steel | |
| End Type | Shielded | |
| Number of Rows | 1 | |
| Static Load Rating | 69000N | |
| Internal Clearance | C3 | |
| Dynamic Load Rating | 115000N | |
| Bore Type | Cylindrical | |
| Standards/Approvals | DIN 625-1 | |
| Series | 63 | |
| Limiting Speed | 6800rpm | |
| Flange Outside Diameter | 150mm | |
| Race Type | Deep Grooved | |
| Bearing Type | Deep Groove | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Product Type Ball Bearing | ||
Inside Diameter 70mm | ||
Outside Diameter 150mm | ||
Race Width 35mm | ||
Race Material Steel | ||
Ball Material Steel | ||
Cage Material Steel | ||
End Type Shielded | ||
Number of Rows 1 | ||
Static Load Rating 69000N | ||
Internal Clearance C3 | ||
Dynamic Load Rating 115000N | ||
Bore Type Cylindrical | ||
Standards/Approvals DIN 625-1 | ||
Series 63 | ||
Limiting Speed 6800rpm | ||
Flange Outside Diameter 150mm | ||
Race Type Deep Grooved | ||
Bearing Type Deep Groove | ||
The FAG Deep Groove Ball Bearing is engineered for reliability and high performance in demanding operational conditions. Designed specifically for a broad range of applications, the bearing offers superior load capabilities while maintaining operational efficiency. Its non-contact shield design greatly minimises contamination, ensuring longevity and optimal functionality.
Lightweight design contributes to improved efficiency in machinery operations
Radial internal clearance larger than standard for better tolerance management
Provides a basic dynamic load rating suitable for various applications
Designed to handle significant speeds without compromising performance
