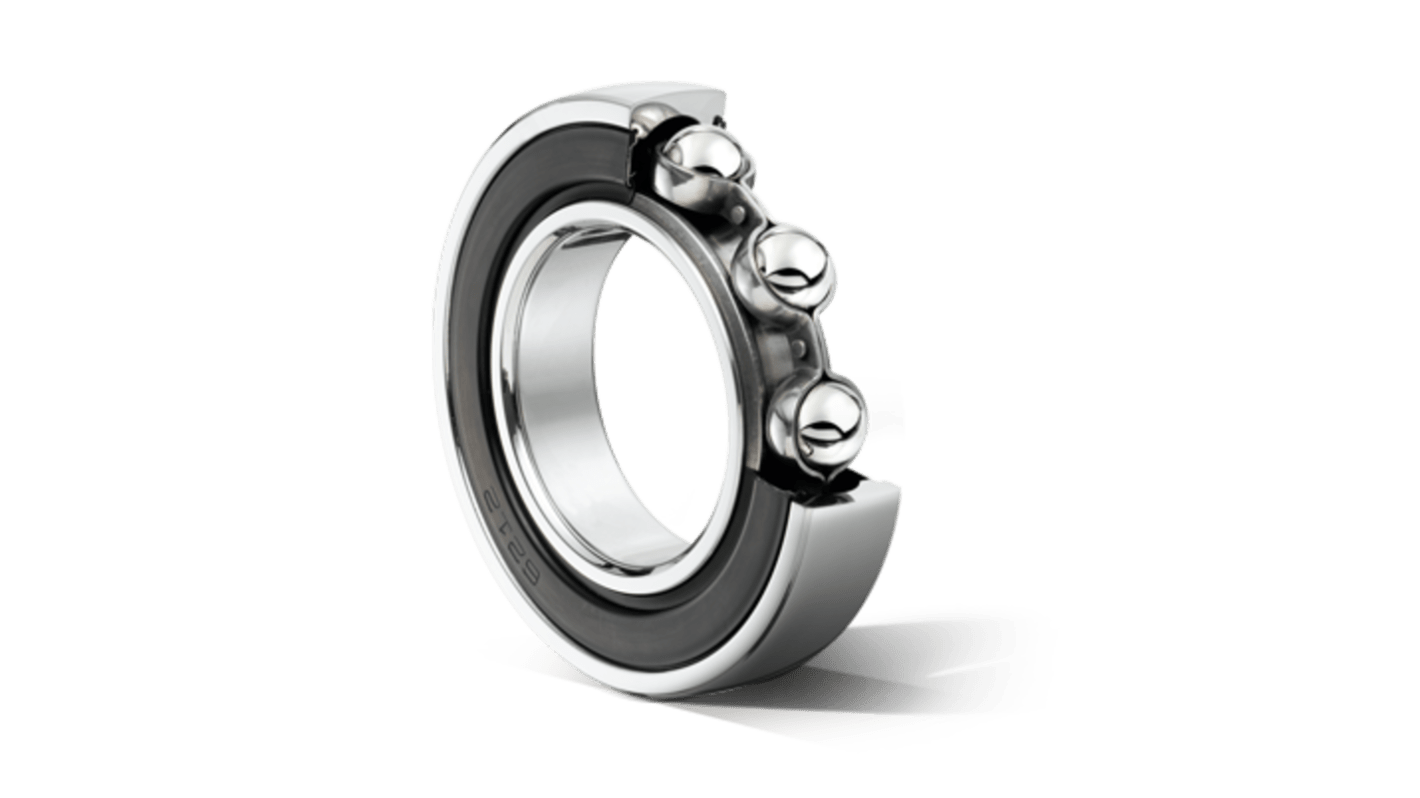

SNR 6203ZZC3 1 Row Ball Bearing - 17 mm ID, 40 mm OD
- RS Stock No.:
- 146-243
- Mfr. Part No.:
- 6203ZZC3
- Brand:
- SNR
Subtotal (1 unit)*
£3.93
(exc. VAT)
£4.72
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 28 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £3.93 |
*price indicative
- RS Stock No.:
- 146-243
- Mfr. Part No.:
- 6203ZZC3
- Brand:
- SNR
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SNR | |
| Inside Diameter | 17 mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 40 mm | |
| Race Width | 12mm | |
| Cage Material | Steel | |
| Number of Rows | 1 | |
| Static Load Rating | 4.8kN | |
| Internal Clearance | C3 | |
| Dynamic Load Rating | 10.1kN | |
| Series | 6203ZZC3 | |
| Standards/Approvals | No | |
| Bore Type | Radial | |
| Limiting Speed | 23000rpm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Select all | ||
|---|---|---|
Brand SNR | ||
Inside Diameter 17 mm | ||
Product Type Ball Bearing | ||
Outside Diameter 40 mm | ||
Race Width 12mm | ||
Cage Material Steel | ||
Number of Rows 1 | ||
Static Load Rating 4.8kN | ||
Internal Clearance C3 | ||
Dynamic Load Rating 10.1kN | ||
Series 6203ZZC3 | ||
Standards/Approvals No | ||
Bore Type Radial | ||
Limiting Speed 23000rpm | ||
Bearing Type Single Row Deep Groove Ball | ||
- COO (Country of Origin):
- CN
The SNR Single Row Deep Groove Ball Bearings are designed for radial contact, ensuring efficient load distribution and smooth operation. This single row deep groove ball bearing is the most popular bearing.
Pressed steel cage
Shields on both sides
