- RS Stock No.:
- 146-186
- Mfr. Part No.:
- 6208FT150
- Brand:
- SNR
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SNR | |
| Product Type | Ball Bearing | |
| Inside Diameter | 40 mm | |
| Outside Diameter | 80 mm | |
| Race Width | 18mm | |
| Cage Material | Steel | |
| Static Load Rating | 17.9kN | |
| Standards/Approvals | RoHS | |
| Bearing Type | Single Row Deep Groove | |
| Select all | ||
|---|---|---|
Brand SNR | ||
Product Type Ball Bearing | ||
Inside Diameter 40 mm | ||
Outside Diameter 80 mm | ||
Race Width 18mm | ||
Cage Material Steel | ||
Static Load Rating 17.9kN | ||
Standards/Approvals RoHS | ||
Bearing Type Single Row Deep Groove | ||
- COO (Country of Origin):
- TR

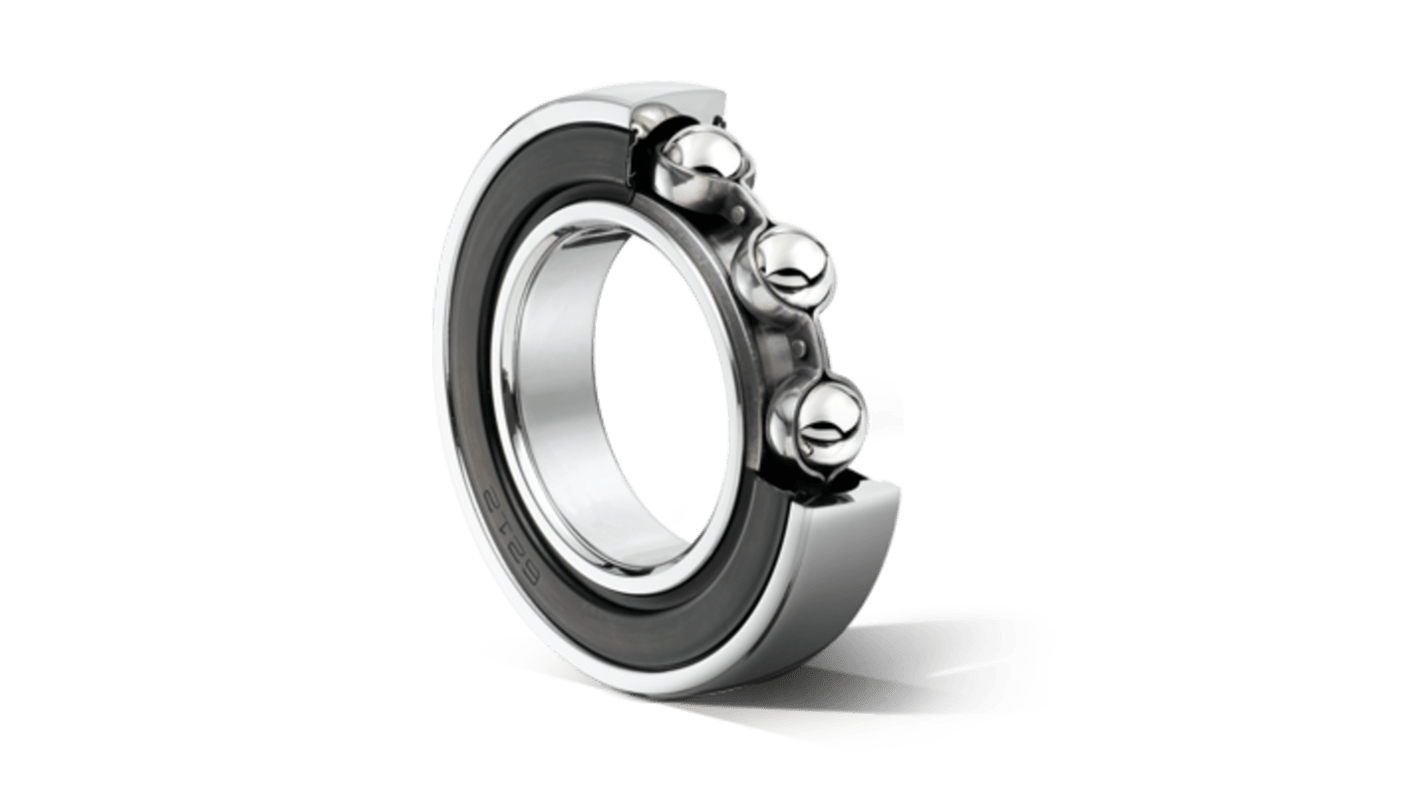

The SNR Single Row Deep Groove Ball Bearings are engineered for high temperature applications, capable of operating effectively at temperatures up to 150°C. The single row deep groove ball bearing is the most popular bearing.
Radial contact
Pressed steel cage
Contact seals on both sides
