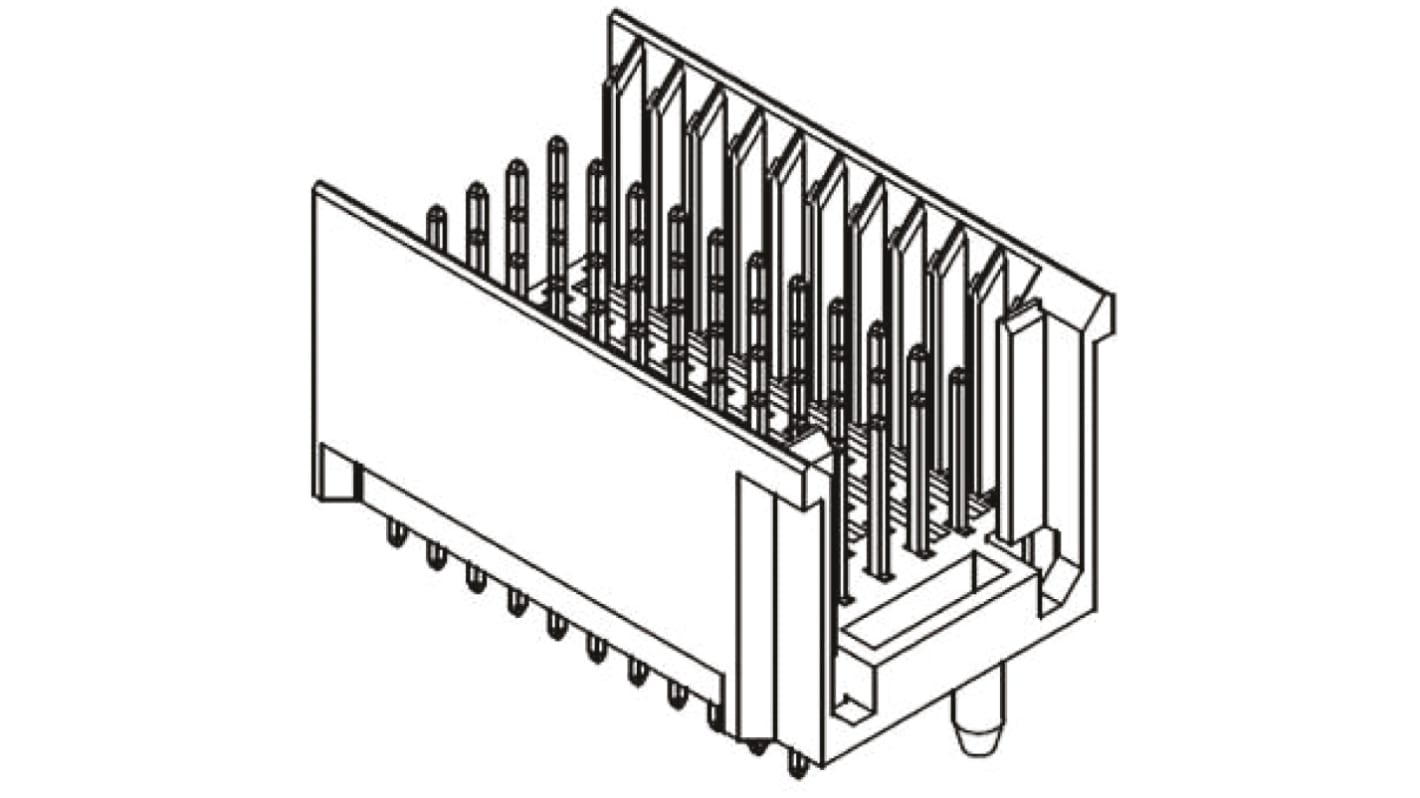

Harting, har-bus HM 2mm Pitch Hard Metric Type C Backplane Connector, Male, Straight, 5 Row, 55 Way
- RS Stock No.:
- 740-7382
- Mfr. Part No.:
- 17030552202
- Brand:
- HARTING
15 In stock - FREE next working day delivery available
Added
Price Each
£5.06
(exc. VAT)
£6.07
(inc. VAT)
| Units | Per unit |
| 1 - 19 | £5.06 |
| 20 - 74 | £4.84 |
| 75 - 299 | £4.23 |
| 300 - 599 | £3.53 |
| 600 + | £3.44 |
- RS Stock No.:
- 740-7382
- Mfr. Part No.:
- 17030552202
- Brand:
- HARTING
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Har-Bus HM Hard Metric Connectors
The IEC 61076-4-101 connector has been designed to meet high speed applications. This modular 2mm interconnection system uses increments of 25mm, with 5 rows of signal contacts, and the option of 2 additional rows for outer shielding.
For compact PCI/VME bus and proprietary applications
32//64 Bit Transfer Rates
Number of contacts range from 55 way up to 308 way
Pre-installed upper shields on the sockets
32//64 Bit Transfer Rates
Number of contacts range from 55 way up to 308 way
Pre-installed upper shields on the sockets
Specifications
Attribute | Value |
|---|---|
| Backplane Connector Type | Hard Metric Type C |
| Gender | Male |
| Number of Contacts | 55 |
| Number of Rows | 5 |
| Body Orientation | Straight |
| Housing Material | Glass Fibre Reinforced Thermoplastic |
| Pitch | 2mm |
| Contact Material | Copper Alloy |
| Contact Plating | Gold, Nickel, Palladium Nickel |
| Current Rating | 1A |
| Termination Method | Press-In |
| Series | har-bus HM |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
