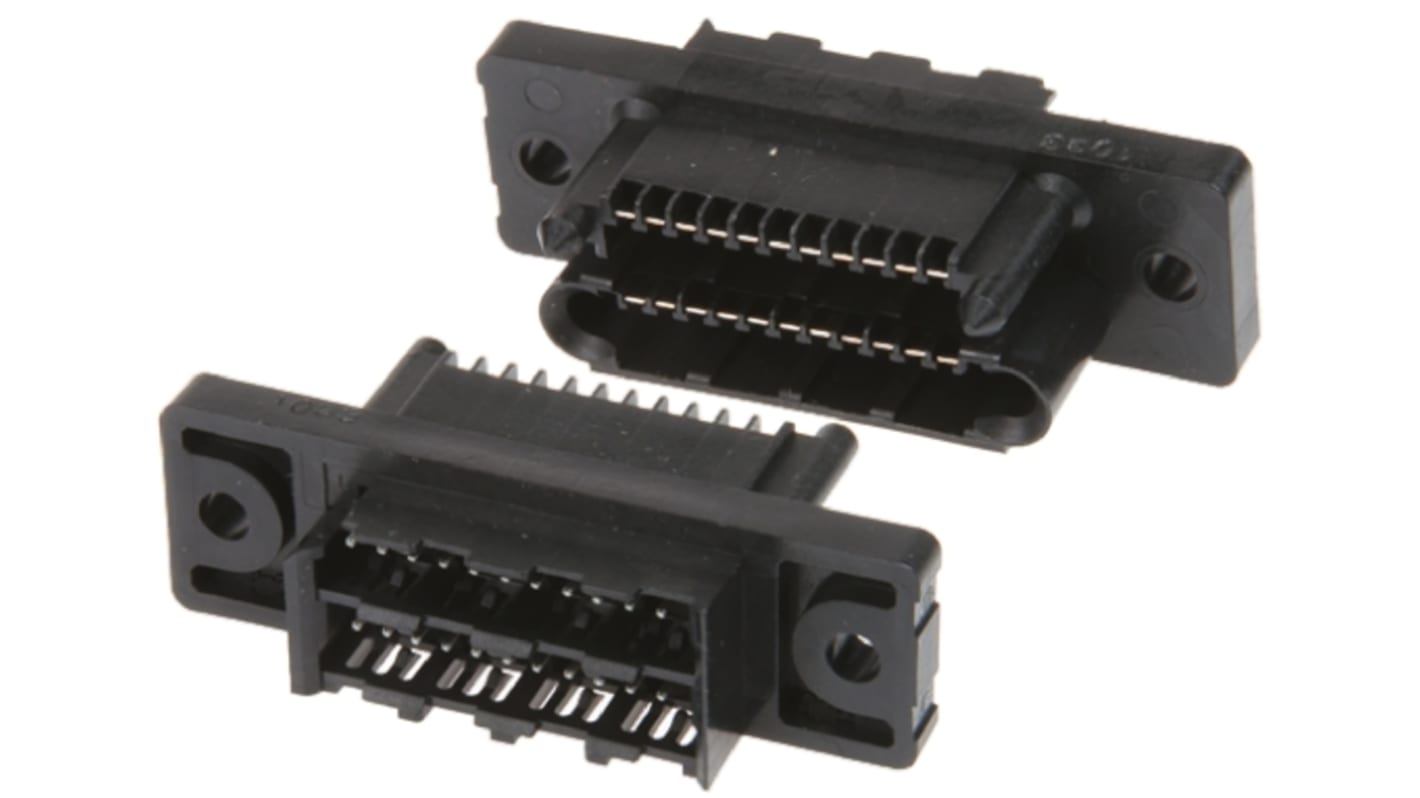

TE Connectivity, Mini-Drawer 2mm Pitch Backplane Connector, Straight, 2 Row, 22 Way
- RS Stock No.:
- 720-2411P
- Mfr. Part No.:
- 292178-1
- Brand:
- TE Connectivity
Subtotal 1 unit (supplied in a box)*
£10.74
(exc. VAT)
£12.89
(inc. VAT)
FREE delivery for orders over £50.00
Being discontinued
- Final 4 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 + | £10.74 |
*price indicative
- RS Stock No.:
- 720-2411P
- Mfr. Part No.:
- 292178-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Number of Contacts | 22 | |
| Number of Rows | 2 | |
| Body Orientation | Straight | |
| Pitch | 2mm | |
| Mounting Type | Through Hole | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Gold | |
| Termination Method | Solder | |
| Series | Mini-Drawer | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Number of Contacts 22 | ||
Number of Rows 2 | ||
Body Orientation Straight | ||
Pitch 2mm | ||
Mounting Type Through Hole | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold | ||
Termination Method Solder | ||
Series Mini-Drawer | ||
TE Connectivity 2.0mm Mini-Drawer CT Header Connector
Mini-Drawer plug style panel mount shrouded header connector with a 2mm centreline. This Mini-Drawer plug style header has a black thermoplastic housing and gold plated nickel pin contacts
TE Connectivity 2.00mm CT Interconnection System
AMP CT 2 mm miniature interconnection system for use in wire to board and wire to wire applications with proven wire harness capability. The AMP CT 2 mm connector system consists of boxed and shrouded PCB headers and mating crimp or MT (Mass Terminated) cable mounting housings. The MT housings are loaded with IDC contacts.
