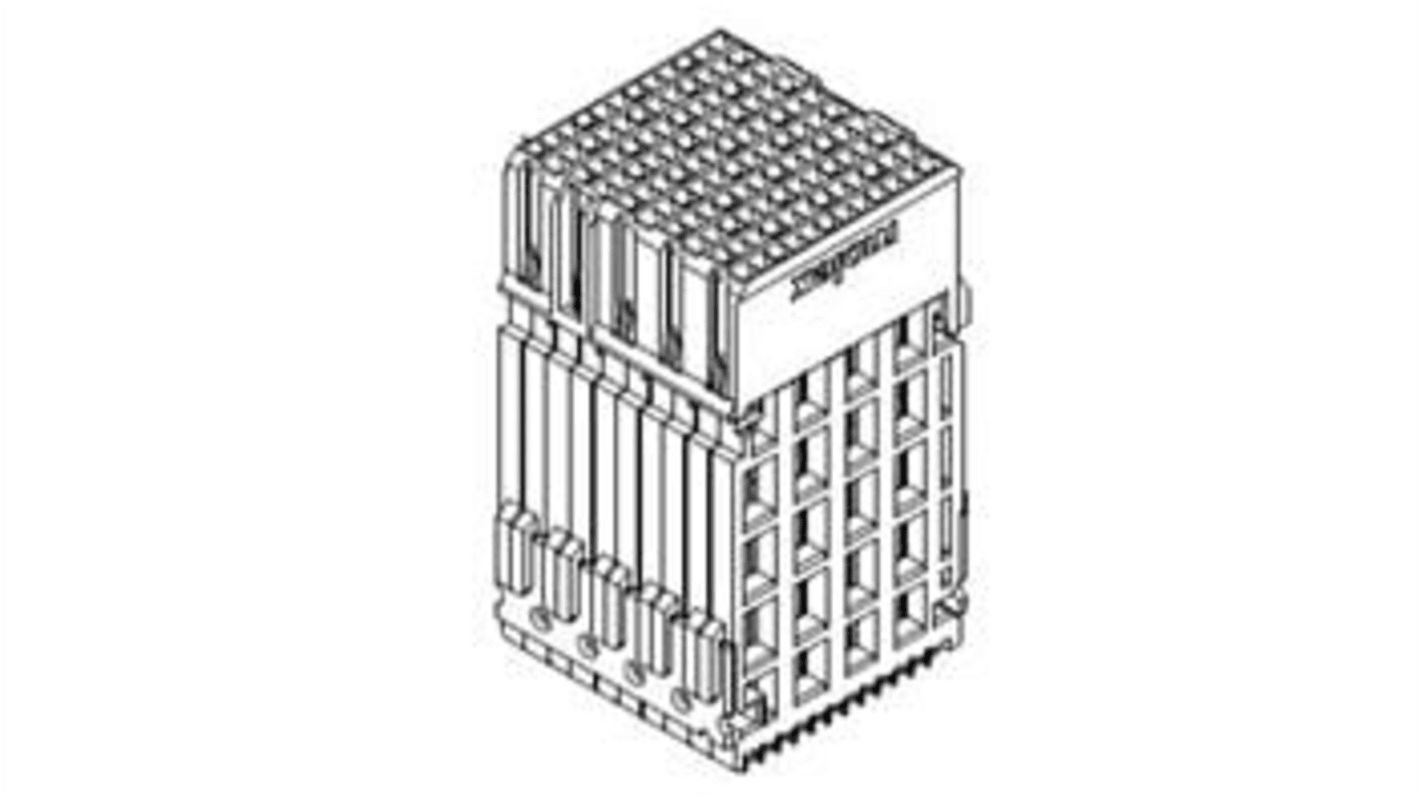

Molex 1.35mm Pitch Connector Backplane Connector, Receptacle, Vertical, 16 Column, 12 Row, 192 Way, 170390

View all Backplane Connectors

Subtotal (1 tray of 4 units)*

£166.32

(exc. VAT)

£199.58

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible
Tray(s)
Per Tray
Per unit*
1 +£166.32£41.58

*price indicative

RS Stock No.:
684-510
Mfr. Part No.:
170390-1006
Brand:
Molex
Find similar products by selecting one or more attributes.
Select all

Brand

Molex

Backplane Connector Type

Connector

Gender

Receptacle

Number of Contacts

192

Number of Columns

16

Number of Rows

12

Body Orientation

Vertical

Pitch

1.35mm

Series Number

170390

COO (Country of Origin):
SG
The Molex Impact 85 Ohm Plus 4 Pair Mezzanine Receptacle is engineered for exceptional connectivity in modern backplane applications. With a compact stack height of 18.00 mm and capability for 192 circuits across 16 columns, this lead-free receptacle ensures reliable performance without compromising on space. Designed specifically for mezzanine applications, it provides outstanding data transmission rates of up to 25 Gbps. Its robust construction and high-performance alloy materials enhance durability, making it a dependable choice for demanding environments. Additionally, the receptacle meets key industry compliance standards, ensuring its suitability across a range of electronic applications.

High performance design suitable for backplane connectors
Supports up to 192 circuits, offering extensive connectivity options
Lead free design compliant with industry regulations for safety
Durable construction allows for up to 200 mating cycles, enhancing longevity
Robust high performance alloy and thermoplastic materials ensure reliability
Vertical orientation and various pitch options improve installation versatility
PCB thickness compatibility of 1 mm for optimal integration
Meets critical compliance standards including EU RoHS and REACH
