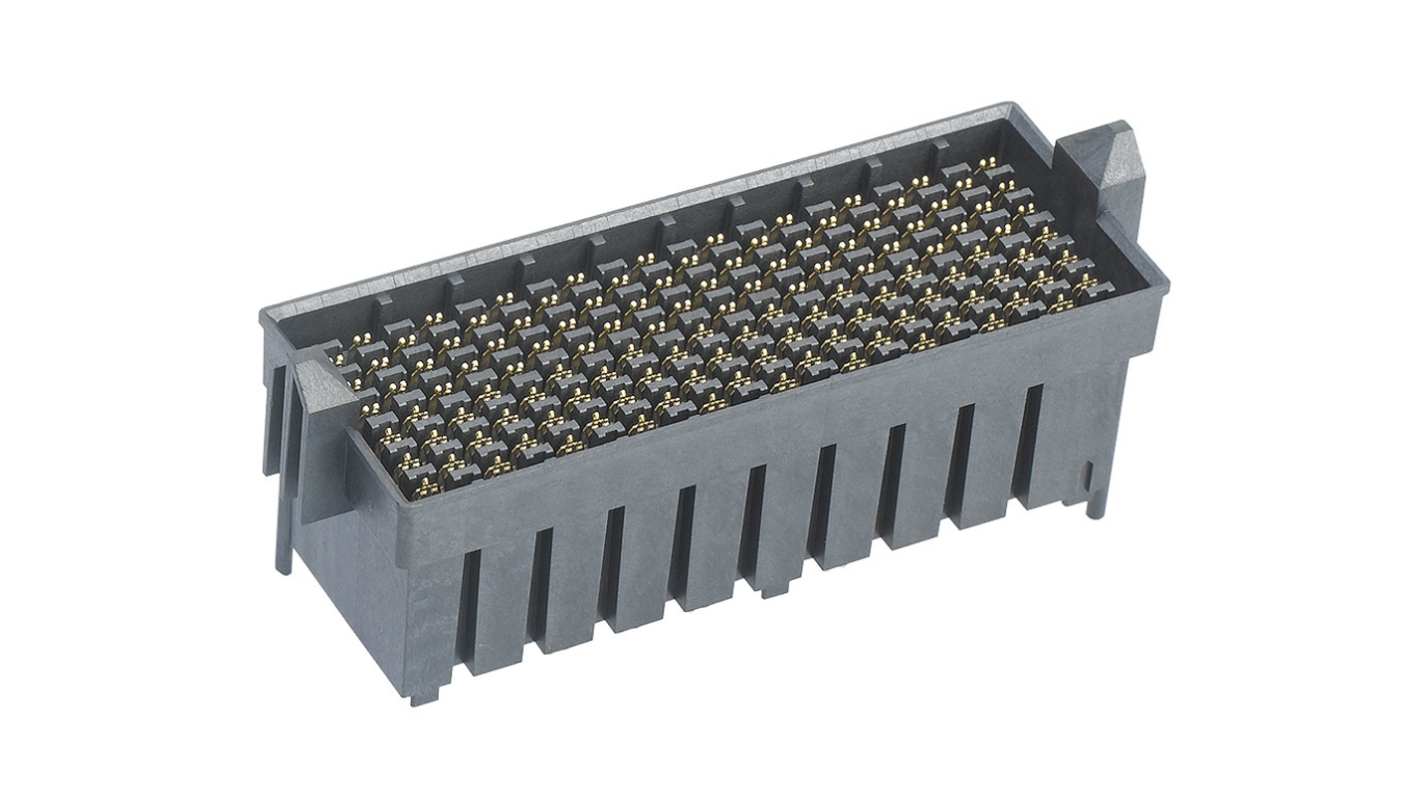

Molex 2.8mm Pitch Connector Backplane Connector, Receptacle, Vertical, 6 Row, 216 Way, 170814
- RS Stock No.:
- 683-814
- Mfr. Part No.:
- 170814-2008
- Brand:
- Molex
Subtotal (1 tray of 4 units)*
£199.02
(exc. VAT)
£238.82
(inc. VAT)
Stock information currently inaccessible
Tray(s) | Per Tray | Per unit* |
---|---|---|
1 + | £199.02 | £49.755 |
*price indicative
- RS Stock No.:
- 683-814
- Mfr. Part No.:
- 170814-2008
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Molex | |
Backplane Connector Type | Connector | |
Gender | Receptacle | |
Number of Contacts | 216 | |
Number of Rows | 6 | |
Body Orientation | Vertical | |
Pitch | 2.8mm | |
Series Number | 170814 | |
Select all | ||
---|---|---|
Brand Molex | ||
Backplane Connector Type Connector | ||
Gender Receptacle | ||
Number of Contacts 216 | ||
Number of Rows 6 | ||
Body Orientation Vertical | ||
Pitch 2.8mm | ||
Series Number 170814 | ||
- COO (Country of Origin):
- SG
The Molex NeoScale High-Speed Mezzanine Receptacle designed to facilitate seamless board to board applications with its robust construction and reliable performance. Featuring a 2.80mm pitch layout and accommodating up to 216 circuits this product is ideal for high-density applications requiring efficient signal transmission. With a maximum voltage rating of 30V AC and a current capacity of 1.0A per contact it ensures dependable connectivity in various operating environments. Crafted from high-performance materials including liquid crystal polymer and gold-plated contacts this receptacle delivers exceptional durability and compliance with industry standards making it a preferred choice for engineers and developers seeking quality and reliability in their electronic assemblies.
Supports high-speed signal integrity for advanced board to board connectivity
Accommodates 216 circuits maximising connectivity in compact applications
Durable construction offers a mating cycle longevity of up to 100 cycles
Vertical orientation simplifies installation and optimises space efficiency
Utilises high-performance alloy for metal components which ensuring reliability
Low-halogen material adheres to environmental safety standards
PCB retention feature enhances stability and prevents disconnection
Compatible with both solder and weld termination interface styles
Complies with EU RoHS and REACH standards which ensuring environmentally friendly use
Accommodates 216 circuits maximising connectivity in compact applications
Durable construction offers a mating cycle longevity of up to 100 cycles
Vertical orientation simplifies installation and optimises space efficiency
Utilises high-performance alloy for metal components which ensuring reliability
Low-halogen material adheres to environmental safety standards
PCB retention feature enhances stability and prevents disconnection
Compatible with both solder and weld termination interface styles
Complies with EU RoHS and REACH standards which ensuring environmentally friendly use
