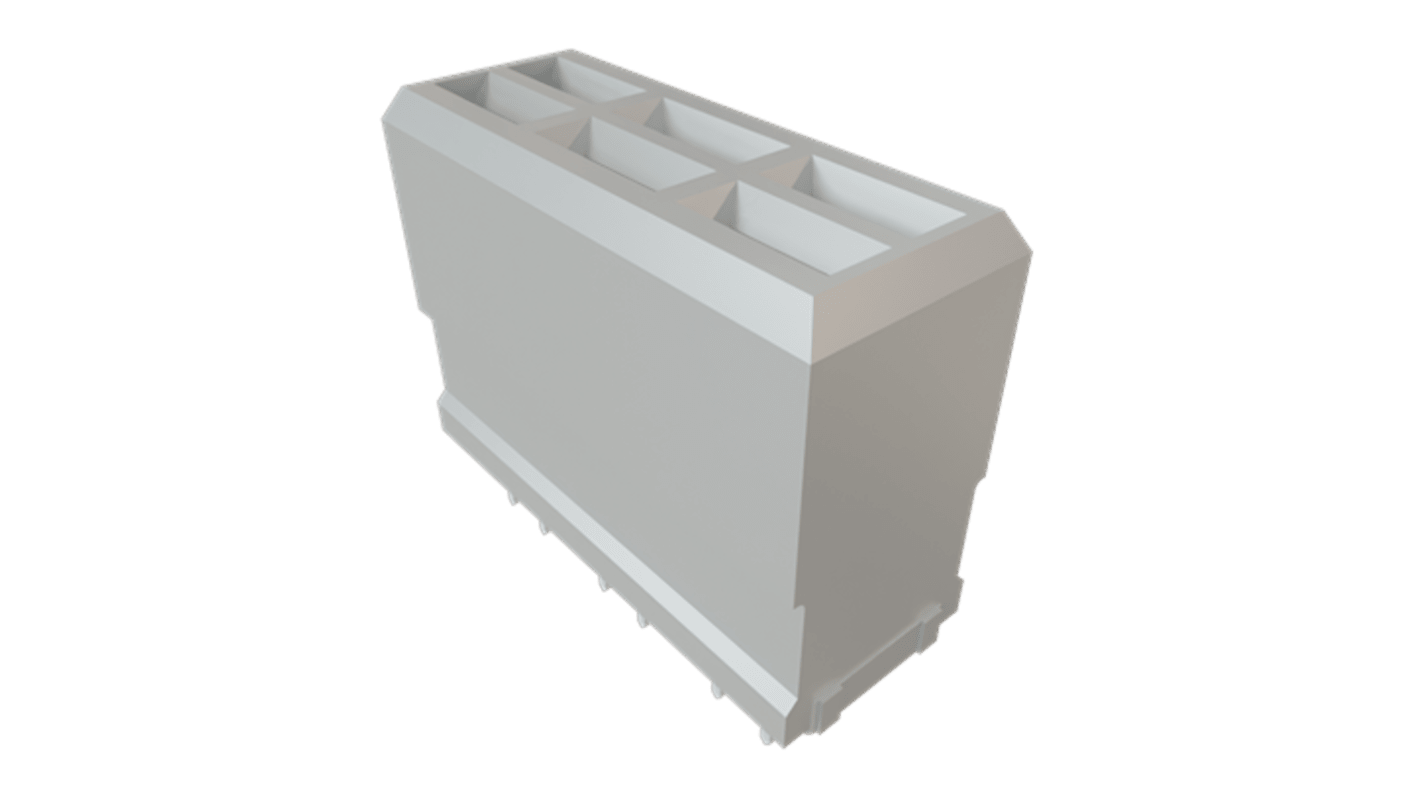

Samtec, HPTS-4-S-D-VT 1.8 mm Pitch High Density Backplane Connector, Vertical Female, 8 Column, 2 Row, 4 Way
- RS Stock No.:
- 644-472
- Mfr. Part No.:
- HPTS-4-S-D-VT
- Brand:
- Samtec
Subtotal (1 unit)*
£10.85
(exc. VAT)
£13.02
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 24 unit(s) shipping from 20 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £10.85 |
*price indicative
- RS Stock No.:
- 644-472
- Mfr. Part No.:
- HPTS-4-S-D-VT
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Backplane Connector Type | High Density | |
| Product Type | Backplane Connector | |
| Current | 10A | |
| Number of Contacts | 4 | |
| Orientation | Vertical | |
| Number of Columns | 8 | |
| Connector Gender | Female | |
| Number of Rows | 2 | |
| Voltage | 68V | |
| Housing Material | Liquid Crystal Polymer | |
| Pitch | 1.8mm | |
| Contact Material | Copper Alloy | |
| Mount Type | Press Fit | |
| Contact Plating | Gold, Tin | |
| Termination Type | Press Fit | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Contact Gender | Female | |
| Standards/Approvals | RoHS | |
| Series | HPTS-4-S-D-VT | |
| Select all | ||
|---|---|---|
Brand Samtec | ||
Backplane Connector Type High Density | ||
Product Type Backplane Connector | ||
Current 10A | ||
Number of Contacts 4 | ||
Orientation Vertical | ||
Number of Columns 8 | ||
Connector Gender Female | ||
Number of Rows 2 | ||
Voltage 68V | ||
Housing Material Liquid Crystal Polymer | ||
Pitch 1.8mm | ||
Contact Material Copper Alloy | ||
Mount Type Press Fit | ||
Contact Plating Gold, Tin | ||
Termination Type Press Fit | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Contact Gender Female | ||
Standards/Approvals RoHS | ||
Series HPTS-4-S-D-VT | ||
The Samtec High density power module socket designed for compact backplane applications. It features press-fit tails for secure mounting and offers a current rating of up to 10 A per blade with a voltage rating of 48 VAC / 68 VDC. The socket mounts individually to the backplane and is available in various body heights to match signal module pair counts, making it suitable for space-constrained environments. It mates with the HPTT Right-Angle Power Module Terminal. This modular design allows for flexible configurations, integrating power modules, guidance, keying, and side walls for increased durability.
Vertical Mount
Mounts individually to backplane
Variety of body heights to match signal module pair count
