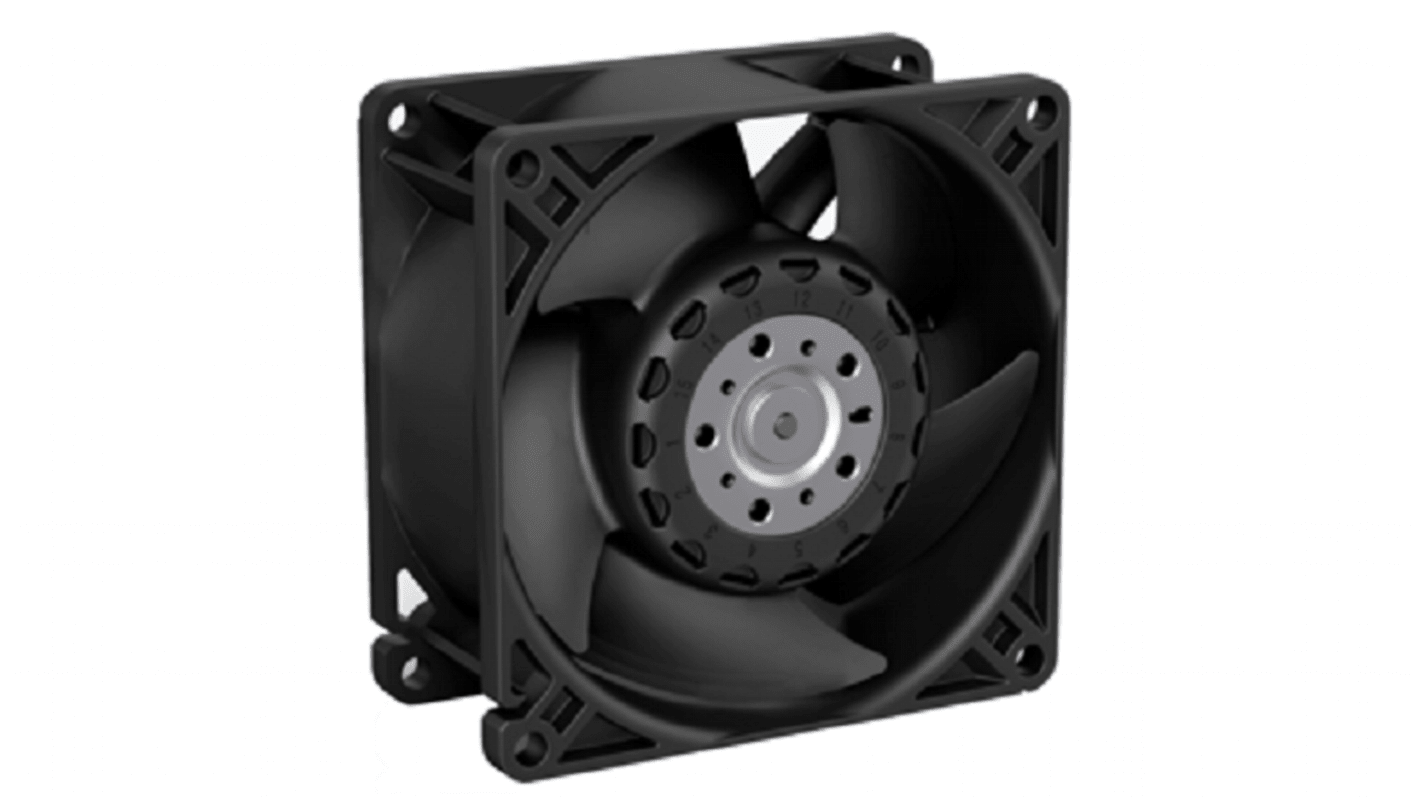

ebm-papst Axial Fan, 24 V dc, DC Operation, 178m³/h, 25W, 1.04A Max, 80 x 80 x 38mm
- RS Stock No.:
- 238-8853
- Distrelec Article No.:
- 302-20-608
- Mfr. Part No.:
- AF80-00137 24V P/2 13.200
- Brand:
- ebm-papst
Bulk discount available
Subtotal (1 unit)*
£56.28
(exc. VAT)
£67.54
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 13 unit(s) shipping from 22 October 2025
- Plus 20 unit(s) shipping from 22 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £56.28 |
10 - 24 | £55.15 |
25 - 49 | £52.90 |
50 + | £47.84 |
*price indicative
- RS Stock No.:
- 238-8853
- Distrelec Article No.:
- 302-20-608
- Mfr. Part No.:
- AF80-00137 24V P/2 13.200
- Brand:
- ebm-papst
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ebm-papst | |
Supply Voltage | 24 V dc | |
AC or DC Operation | DC | |
Height | 80mm | |
Width | 80mm | |
Power Consumption | 25W | |
Maximum Current | 1.04A | |
Depth | 38mm | |
Dimensions | 80 x 80 x 38mm | |
Air Flow | 178m³/h | |
Sensor Type | PWM, Tachometer | |
Select all | ||
---|---|---|
Brand ebm-papst | ||
Supply Voltage 24 V dc | ||
AC or DC Operation DC | ||
Height 80mm | ||
Width 80mm | ||
Power Consumption 25W | ||
Maximum Current 1.04A | ||
Depth 38mm | ||
Dimensions 80 x 80 x 38mm | ||
Air Flow 178m³/h | ||
Sensor Type PWM, Tachometer | ||
The ebm-papst DC axial fan is a direct-current drive operated general fan motor with developed geometry and provides smooth rotation using three phase motor concept which generates less extra heat in the rotor and stator.
Air flow direction exhaust over struts
Rotational direction counter clockwise, looking towards rotor
Material housing plastic (PBT)
Material impeller plastic (PA)
PWM control input
Rotational direction counter clockwise, looking towards rotor
Material housing plastic (PBT)
Material impeller plastic (PA)
PWM control input
