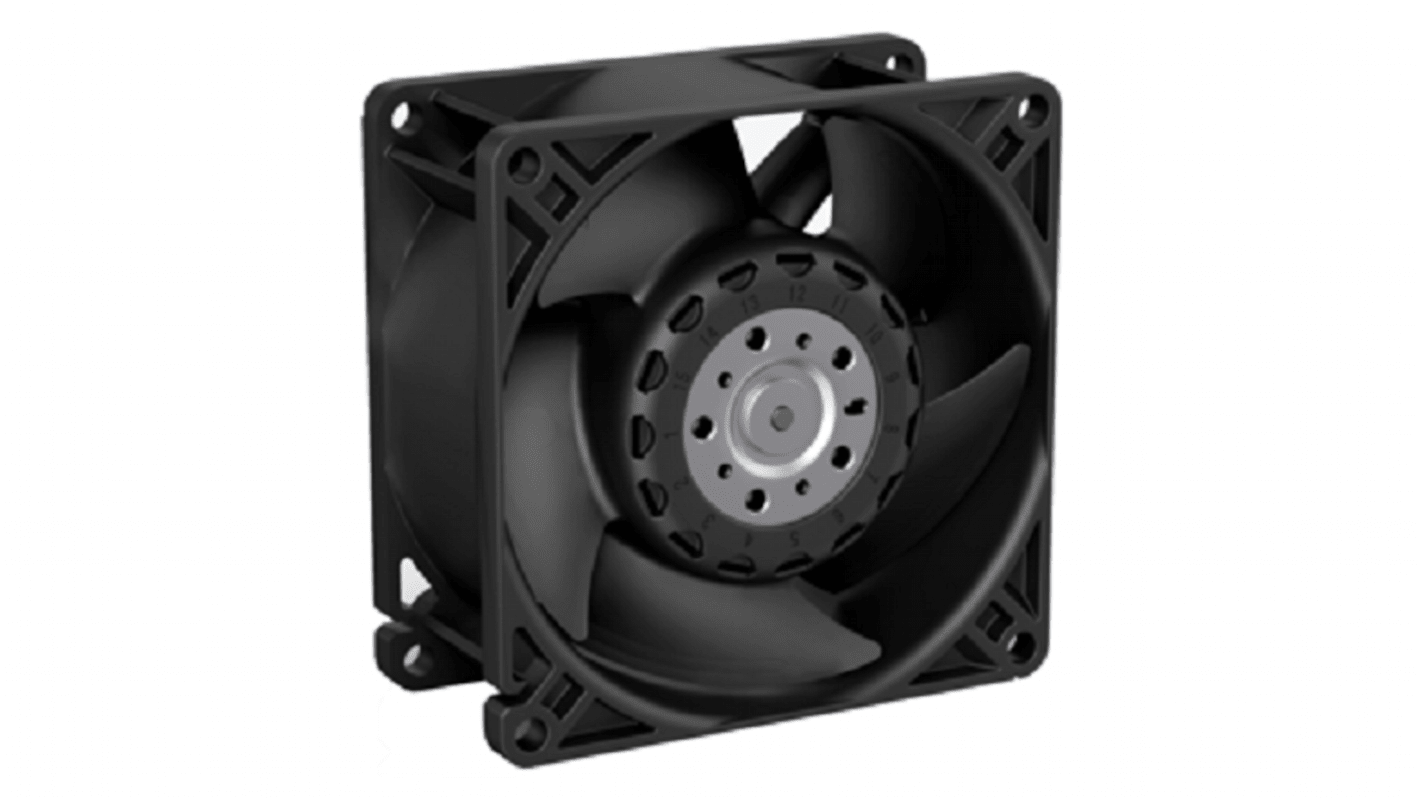

ebm-papst AxiForce 80 Series Axial Fan, 24V dc, 220 m³/h, 46.5 W, 1.93 A Max 80 mm 80mm 38 mm
- RS Stock No.:
- 238-8850
- Distrelec Article No.:
- 302-20-605
- Mfr. Part No.:
- AF80-00134 24V P/2 16.500
- Brand:
- ebm-papst
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£61.04
(exc. VAT)
£73.25
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 84 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £61.04 |
| 10 - 24 | £59.82 |
| 25 - 49 | £57.38 |
| 50 + | £51.89 |
*price indicative
- RS Stock No.:
- 238-8850
- Distrelec Article No.:
- 302-20-605
- Mfr. Part No.:
- AF80-00134 24V P/2 16.500
- Brand:
- ebm-papst
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ebm-papst | |
| Product Type | Axial Fan | |
| Supply Voltage | 24V dc | |
| Power Consumption | 46.5W | |
| Maximum Current | 1.93A | |
| Air Flow | 220m³/h | |
| Noise Level | 5dB | |
| External Depth | 38mm | |
| Bearing Type | Ball | |
| Fan Frame Size | 80 x 80 mm | |
| Depth | 38mm | |
| Height | 80mm | |
| Series | AxiForce 80 | |
| Width | 80mm | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand ebm-papst | ||
Product Type Axial Fan | ||
Supply Voltage 24V dc | ||
Power Consumption 46.5W | ||
Maximum Current 1.93A | ||
Air Flow 220m³/h | ||
Noise Level 5dB | ||
External Depth 38mm | ||
Bearing Type Ball | ||
Fan Frame Size 80 x 80 mm | ||
Depth 38mm | ||
Height 80mm | ||
Series AxiForce 80 | ||
Width 80mm | ||
Standards/Approvals No | ||
The ebm-papst DC axial fan is a direct-current drive operated general fan motor with developed geometry and provides smooth rotation using three phase motor concept which generates less extra heat in the rotor and stator.
Air flow direction exhaust over struts
Rotational direction counter clockwise, looking towards rotor
Material housing plastic (PBT)
Material impeller plastic (PA)
PWM control input
