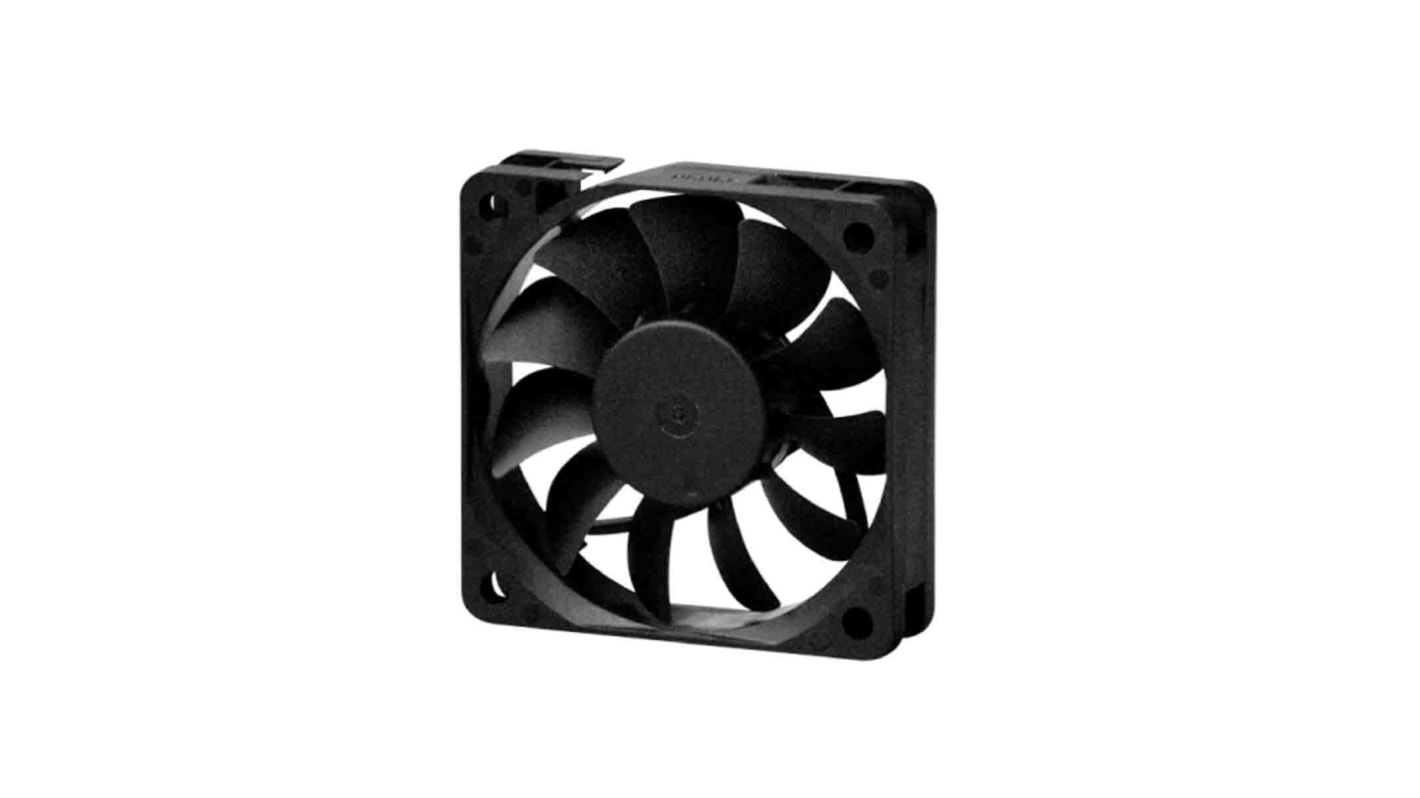

Sunon MF Series Axial Fan, 12V dc, 30.4 cfm, 2.22 W, 213 mA Max, IP20 60 mm 60mm 15 mm
- RS Stock No.:
- 202-5421
- Distrelec Article No.:
- 301-29-667
- Mfr. Part No.:
- MF60151VX-1000U-A99
- Brand:
- Sunon
Bulk discount available
Subtotal (1 unit)*
£5.36
(exc. VAT)
£6.43
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 63 unit(s) ready to ship
- Plus 960 unit(s) ready to ship from another location
- Plus 200 unit(s) shipping from 27 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £5.36 |
| 5 - 9 | £4.93 |
| 10 - 24 | £4.72 |
| 25 - 49 | £4.40 |
| 50 + | £3.87 |
*price indicative
- RS Stock No.:
- 202-5421
- Distrelec Article No.:
- 301-29-667
- Mfr. Part No.:
- MF60151VX-1000U-A99
- Brand:
- Sunon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sunon | |
| Product Type | Axial Fan | |
| Supply Voltage | 12V dc | |
| Power Consumption | 2.22W | |
| Maximum Current | 213mA | |
| Air Flow | 30.4cfm | |
| Noise Level | 36.2dB | |
| Fan Speed | 5400rpm | |
| Direction of Curve | Forward | |
| Terminal Type | Wire | |
| External Depth | 15mm | |
| Bearing Type | Vapo | |
| Fan Frame Type | Square | |
| Fan Frame Size | 60 mm | |
| Series | MF | |
| Width | 60mm | |
| Standards/Approvals | UL, TUV, cUR, CE | |
| Height | 60mm | |
| Depth | 15mm | |
| IP Rating | IP20 | |
| Select all | ||
|---|---|---|
Brand Sunon | ||
Product Type Axial Fan | ||
Supply Voltage 12V dc | ||
Power Consumption 2.22W | ||
Maximum Current 213mA | ||
Air Flow 30.4cfm | ||
Noise Level 36.2dB | ||
Fan Speed 5400rpm | ||
Direction of Curve Forward | ||
Terminal Type Wire | ||
External Depth 15mm | ||
Bearing Type Vapo | ||
Fan Frame Type Square | ||
Fan Frame Size 60 mm | ||
Series MF | ||
Width 60mm | ||
Standards/Approvals UL, TUV, cUR, CE | ||
Height 60mm | ||
Depth 15mm | ||
IP Rating IP20 | ||
- COO (Country of Origin):
- CN
The Sunon MagLev motor fan has precise vapo bearing system . It also has counter clockwise rotation viewed from front of the fan blade.
Automatic restart
Polarity protection
