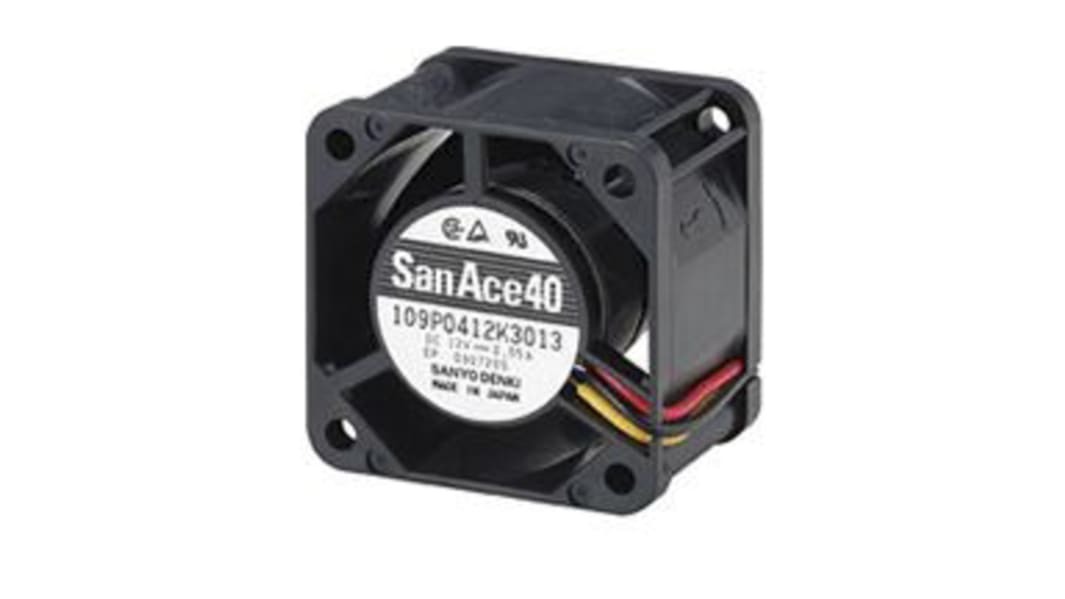

Sanyo Denki San Ace 40 Series Axial Fan, 24 V dc, DC Operation, 19.2m³/h, 2.28W, 90mA Max, 40 x 40 x 28mm
- RS Stock No.:
- 181-0493
- Distrelec Article No.:
- 301-54-341
- Mfr. Part No.:
- 109P0424H3013
- Brand:
- Sanyo Denki
Bulk discount available
Subtotal (1 unit)*
£14.94
(exc. VAT)
£17.93
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 305 unit(s) shipping from 06 October 2025
- Plus 64 unit(s) shipping from 06 October 2025
- Plus 100 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £14.94 |
5 - 9 | £14.37 |
10 - 24 | £13.84 |
25 - 49 | £13.40 |
50 + | £12.94 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£14.69
(exc. VAT)
£17.63
(inc. VAT)
- RS Stock No.:
- 181-0493
- Distrelec Article No.:
- 301-54-341
- Mfr. Part No.:
- 109P0424H3013
- Brand:
- Sanyo Denki
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Sanyo Denki | |
Supply Voltage | 24 V dc | |
AC or DC Operation | DC | |
Height | 28mm | |
Power Consumption | 2.28W | |
Width | 40mm | |
Maximum Current | 90mA | |
Depth | 40mm | |
Air Flow | 19.2m³/h | |
Termination Type | Lead Wire | |
Dimensions | 40 x 40 x 28mm | |
Noise Level | 37dB(A) | |
Fan Speed | 8700rpm | |
Sensor Type | Pulse | |
Bearing Type | Ball | |
Select all | ||
---|---|---|
Brand Sanyo Denki | ||
Supply Voltage 24 V dc | ||
AC or DC Operation DC | ||
Height 28mm | ||
Power Consumption 2.28W | ||
Width 40mm | ||
Maximum Current 90mA | ||
Depth 40mm | ||
Air Flow 19.2m³/h | ||
Termination Type Lead Wire | ||
Dimensions 40 x 40 x 28mm | ||
Noise Level 37dB(A) | ||
Fan Speed 8700rpm | ||
Sensor Type Pulse | ||
Bearing Type Ball | ||
- COO (Country of Origin):
- PH
Sanyo Denki Axial Fan, 24V DC, 8700rpm - San Ace 109P Series - 109P0424H3013
This axial fan from Sanyo Denki helps to cool your sensitive components and protect them against overheating. It has an air flow rate of up to 19.2m³/h for effective cooling. Thanks to its built-in ball bearing, the device promotes smooth operation and reduced friction for efficient performance at high speeds. The fan generates low sound levels of just 37dB, making it suitable for use in quiet workplaces. For enhanced electrical safety, this fan features reverse polarity protection.
Features & Benefits
• High rotation speed of 8700rpm for fast cooling
• Compact dimensions of 40 (length) x 40 (width) x 28mm (depth) for increased space efficiency in cabinets and enclosures
• Consumes just 2.28W of power for energy-efficient operation
• Durable plastic frame and impellers are resistant to impact, corrosion and wear
• Broad operating temperature range of -20°C to +70°C for use in demanding environments
• Compact dimensions of 40 (length) x 40 (width) x 28mm (depth) for increased space efficiency in cabinets and enclosures
• Consumes just 2.28W of power for energy-efficient operation
• Durable plastic frame and impellers are resistant to impact, corrosion and wear
• Broad operating temperature range of -20°C to +70°C for use in demanding environments
Applications
• Electrical cabinets
• HVAC systems
• Server management
• Automation industry
• HVAC systems
• Server management
• Automation industry
How long will this fan last?
When used at a temperature of +60°C, this fan has a robust service life of around 60,000 hours for long-lasting performance.
