San Ace GA series low power DC fans are a highly power efficient solution to a range of fan requirements. Featuring high air flow, high static pressure and low noise.

Low power high performance fans offering 15% to 38% energy saving over conventional fans
Improved impeller, guided vanes, reduced mass, reduced noise by between 2dB and 6dB
PWM control to further optimise power consumption and noise level (except 60 x 60 x10 mm frame size which have tachometer output only)
High static pressure and high airflow
Static pressure optimised at inflection point where fan operated for high impedance applications
30,000 to 60,000 hour life fans @ 60 Degree C
Permanently lubricated dual ball bearing system

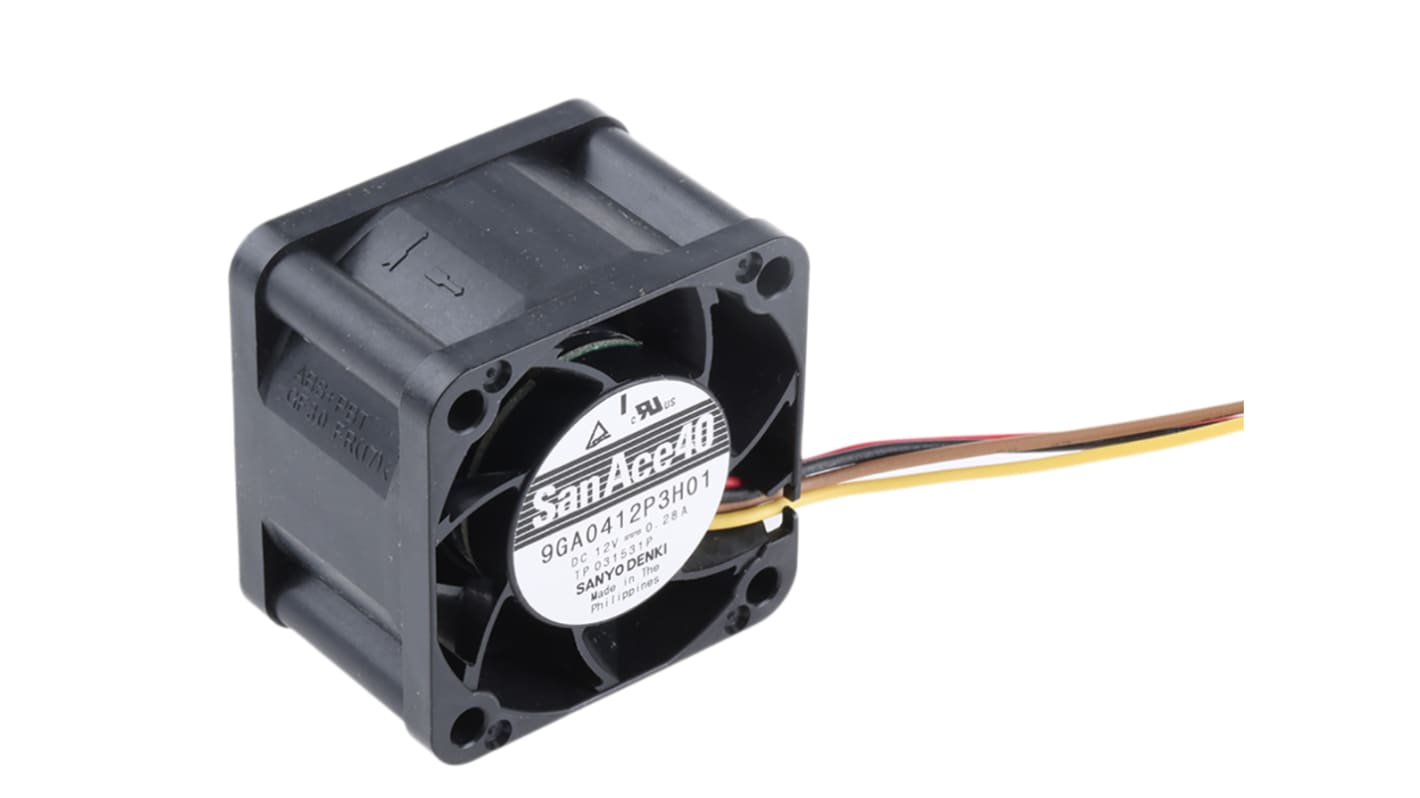

Keep your systems cool with this axial fan from Sanyo Denki. The frame has compact dimensions of 40 (length) x 40 (width) x 28mm (depth), so it can fit inside enclosures where space is limited. The unit has a high speed of 14,500rpm to circulate air at a quick flow rate of 32.4m³/h for efficient cooling. The PWM (pulse-width modulation) control helps reduce this fan's power consumption to just 3.36W, making it an energy-efficient option. You can use this fan to prevent your equipment from overheating.

• Wide operating temperature range between -20°C and +70°C for use in demanding environments
• Low noise level of 50dB for quiet operation
• Reverse polarity and burnout protections to safeguard the fan motor against damage
• Colour-coded wires for ease of set-up
• Permanently lubricated dual ball bearing system for maintenance-free operation

• Server rooms and data centres
• Computing tasks
• Power distribution

This axial fan has a long expected lifespan of 40,000 hours, so it won't need to be replaced frequently.
