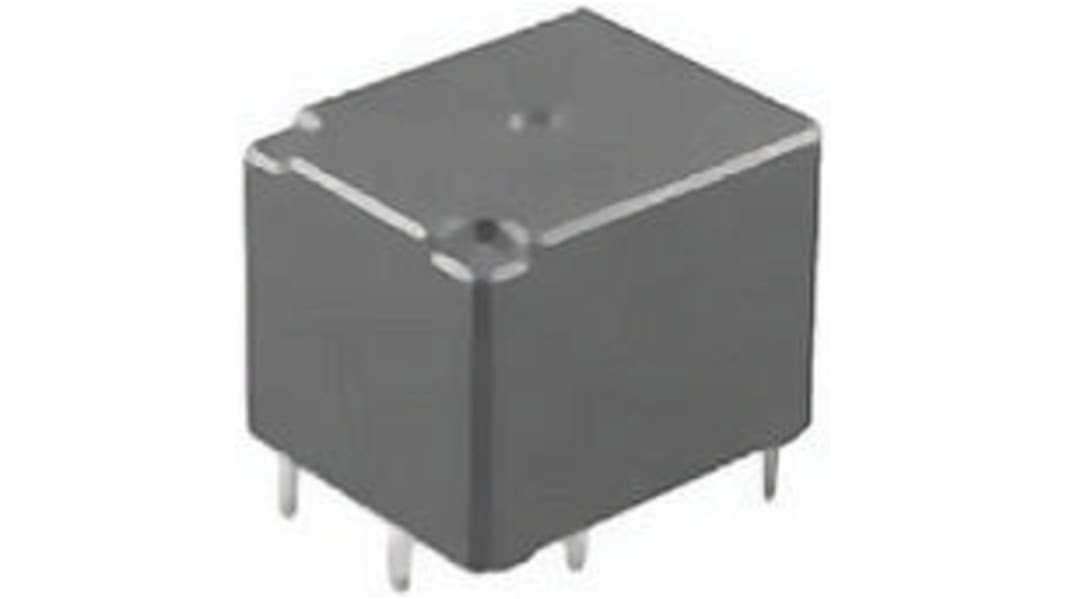

Panasonic PCB Mount Automotive Relay, 12V dc Coil Voltage, 30A Switching Current, DPDT
- RS Stock No.:
- 699-5733
- Mfr. Part No.:
- ACTP212
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 unit)*
£6.98
(exc. VAT)
£8.38
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 34 unit(s) shipping from 06 October 2025
- Plus 4 unit(s) shipping from 06 October 2025
- Plus 30 unit(s) shipping from 23 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 24 | £6.98 |
25 - 49 | £5.54 |
50 - 99 | £5.28 |
100 - 249 | £4.99 |
250 + | £4.46 |
*price indicative
- RS Stock No.:
- 699-5733
- Mfr. Part No.:
- ACTP212
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Panasonic | |
Coil Voltage | 12V dc | |
Coil Power | 1W | |
Coil Resistance | 144Ω | |
Contact Configuration | DPDT | |
Number of Poles | 2 | |
Switching Current | 30A | |
Maximum Switching Voltage DC | 14V dc | |
Mounting Type | PCB Mount | |
Terminal Type | Through Hole | |
Life | 1000000 (Mechanical) cycles, 50000 (Electrical) cycles | |
Length | 17.4mm | |
Depth | 14mm | |
Height | 13.5mm | |
Isolation Coil To Contact | 500V rms | |
Maximum Operating Temperature | +85°C | |
Contact Material | Silver Alloy | |
Minimum Operating Temperature | -40°C | |
Select all | ||
---|---|---|
Brand Panasonic | ||
Coil Voltage 12V dc | ||
Coil Power 1W | ||
Coil Resistance 144Ω | ||
Contact Configuration DPDT | ||
Number of Poles 2 | ||
Switching Current 30A | ||
Maximum Switching Voltage DC 14V dc | ||
Mounting Type PCB Mount | ||
Terminal Type Through Hole | ||
Life 1000000 (Mechanical) cycles, 50000 (Electrical) cycles | ||
Length 17.4mm | ||
Depth 14mm | ||
Height 13.5mm | ||
Isolation Coil To Contact 500V rms | ||
Maximum Operating Temperature +85°C | ||
Contact Material Silver Alloy | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- JP
Panasonic ACT Series Automotive Relays
These small, slim PCB mount automative relays have a silent operation and are sealed to enable automatic cleaning. Typical applications for these PCB automotive relays include power windows, powered seats, auto door locks, slide door closers and power sunroofs.
Features and Benefits
Maximum current 40A for 2 minutes, 25A for 1 hour at 20°C
Minimum switching capacity 1A 12Vdc
Nominal coil operating power 1,000mW
Silent operation
Sealed construction
Compact type suitable for automotive applications
Minimum switching capacity 1A 12Vdc
Nominal coil operating power 1,000mW
Silent operation
Sealed construction
Compact type suitable for automotive applications
