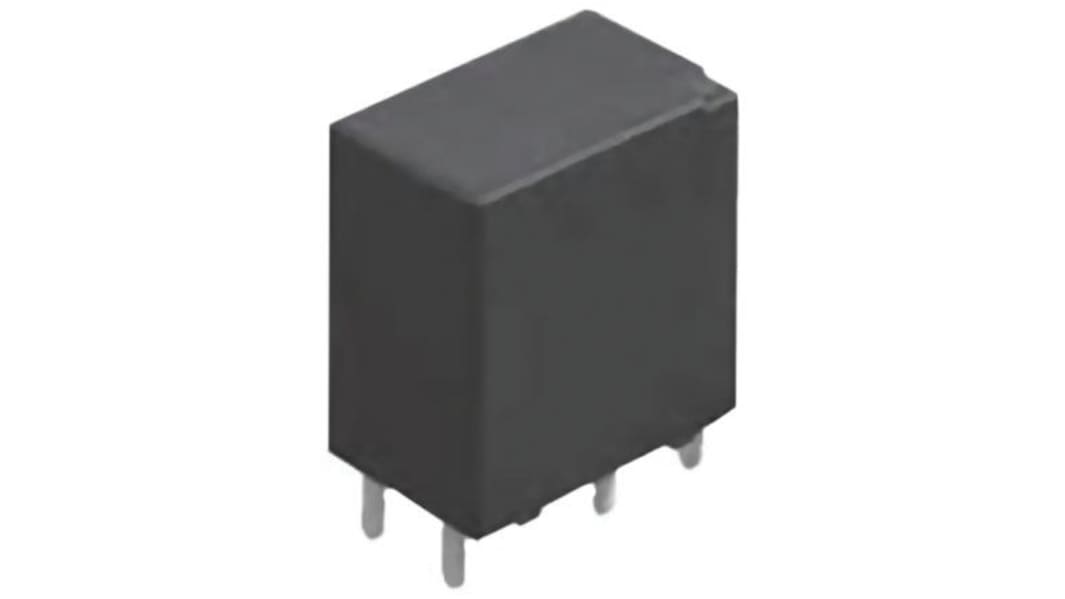

Panasonic PCB Automotive Relay, 12V dc Coil Voltage, 30A Switching Current, SPST
- RS Stock No.:
- 173-8809
- Mfr. Part No.:
- ACNH3212
- Brand:
- Panasonic
Subtotal (1 box of 50 units)*
£123.95
(exc. VAT)
£148.75
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 200 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 50 + | £2.479 | £123.95 |
*price indicative
- RS Stock No.:
- 173-8809
- Mfr. Part No.:
- ACNH3212
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Product Type | Automotive Relay | |
| Coil Power | 450mW | |
| Coil Resistance | 320Ω | |
| Contact Configuration | SPST | |
| Number of Poles | 1 | |
| Terminal Type | PCB Terminal | |
| Minimum Operating Temperature | -40°C | |
| Mount Type | PCB | |
| Maximum Operating Temperature | 110°C | |
| Length | 17mm | |
| Depth | 10.6mm | |
| Height | 18.3mm | |
| Series | ACNH | |
| Contact Material | Silver | |
| Isolation Coil To Contact | 500V | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Product Type Automotive Relay | ||
Coil Power 450mW | ||
Coil Resistance 320Ω | ||
Contact Configuration SPST | ||
Number of Poles 1 | ||
Terminal Type PCB Terminal | ||
Minimum Operating Temperature -40°C | ||
Mount Type PCB | ||
Maximum Operating Temperature 110°C | ||
Length 17mm | ||
Depth 10.6mm | ||
Height 18.3mm | ||
Series ACNH | ||
Contact Material Silver | ||
Isolation Coil To Contact 500V | ||
- COO (Country of Origin):
- JP
Panasonic ACNH Series High Load Automotive Relays
These PCB mount high load automotive relays are a space saving compact size and can be used to replace micro ISO terminal type relays. Typical applications for these PCB mount relays include head lamps, fog lamps, fan motors, defoggers and seat heaters.
Nominal switching capacity 30A at 14Vdc (resistive load)
Continuous current 20A at 14Vdc
Nominal operating power 450mW
PC board terminals
Sealed construction, small size
Suitable for automotive applications such as head lamps, fog lamps, fans
