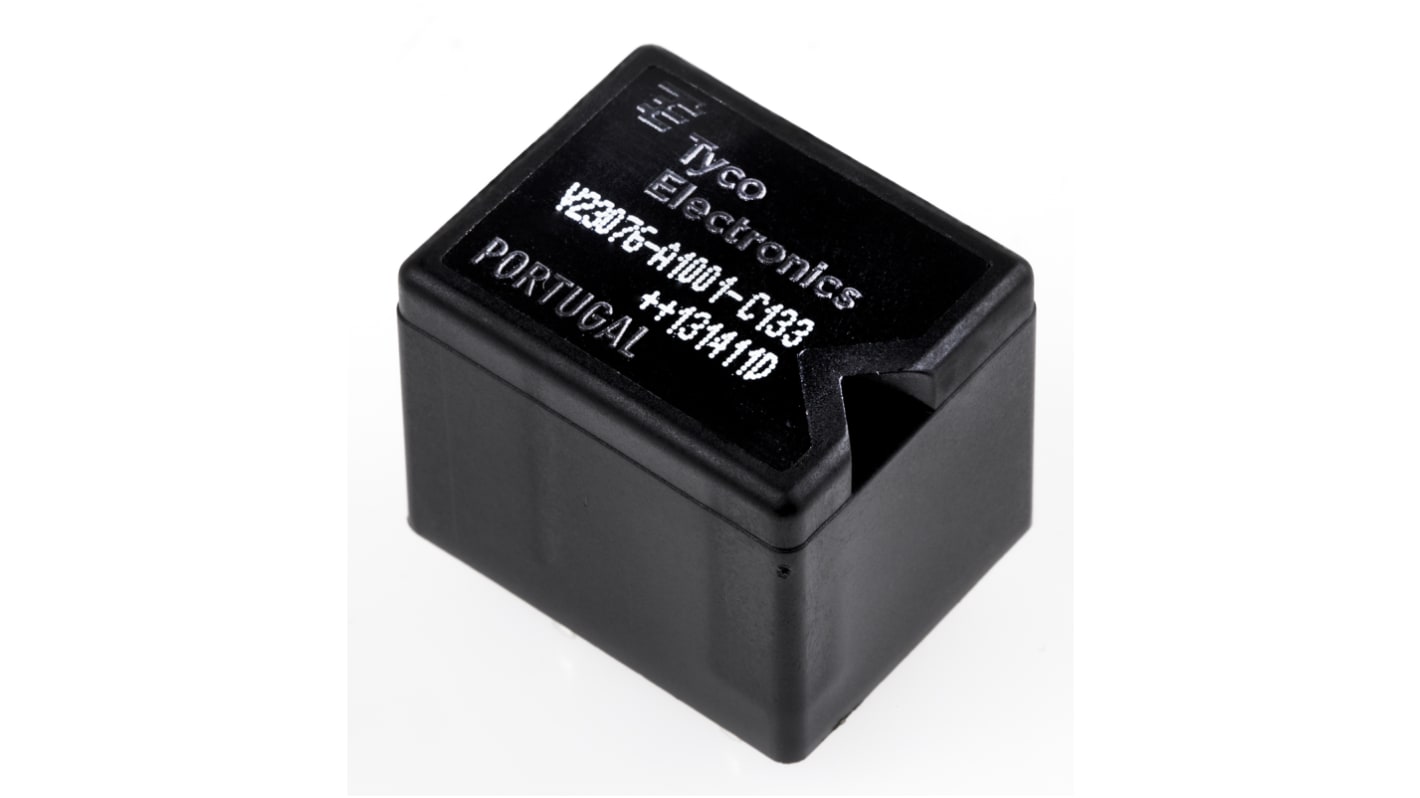

TE Connectivity PCB Mount Automotive Relay, 12V dc Coil Voltage, 30A Switching Current, SPDT
- RS Stock No.:
- 308-0633
- Distrelec Article No.:
- 300-11-960
- Mfr. Part No.:
- V23076A1001C133 1393277-4
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£4.96
(exc. VAT)
£5.95
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 158 unit(s) ready to ship
- Plus 24 unit(s) ready to ship from another location
- Plus 14 unit(s) shipping from 30 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £4.96 |
5 - 9 | £4.81 |
10 + | £4.57 |
*price indicative
- RS Stock No.:
- 308-0633
- Distrelec Article No.:
- 300-11-960
- Mfr. Part No.:
- V23076A1001C133 1393277-4
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Coil Voltage | 12V dc | |
Coil Resistance | 90Ω | |
Contact Configuration | SPDT | |
Number of Poles | 1 | |
Switching Current | 30A | |
Mounting Type | PCB Mount | |
Terminal Type | Through Hole | |
Maximum Operating Temperature | +125°C | |
Series | K | |
Minimum Operating Temperature | -40°C | |
Contact Material | Silver | |
Length | 26.5mm | |
Height | 21.5mm | |
Depth | 21.5mm | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Coil Voltage 12V dc | ||
Coil Resistance 90Ω | ||
Contact Configuration SPDT | ||
Number of Poles 1 | ||
Switching Current 30A | ||
Mounting Type PCB Mount | ||
Terminal Type Through Hole | ||
Maximum Operating Temperature +125°C | ||
Series K | ||
Minimum Operating Temperature -40°C | ||
Contact Material Silver | ||
Length 26.5mm | ||
Height 21.5mm | ||
Depth 21.5mm | ||
- COO (Country of Origin):
- PT
TE Connectivity K Series PCB Automotive Relays
TE Connectivity K series PCB automotive relays offer a wide voltage range and a limiting continuous current of 40 A. Typical applications include: lock control circuits, seat adjustment motors, window defoggers, starter solenoid switches, etc.
Features and Benefits
Resistive or Inductive load
One changeover contact
For PCB assembly
Immersion cleanable (protected to IP67)
Contact material: Ag
Operating temperature range: -40 °C to 85°C
One changeover contact
For PCB assembly
Immersion cleanable (protected to IP67)
Contact material: Ag
Operating temperature range: -40 °C to 85°C
