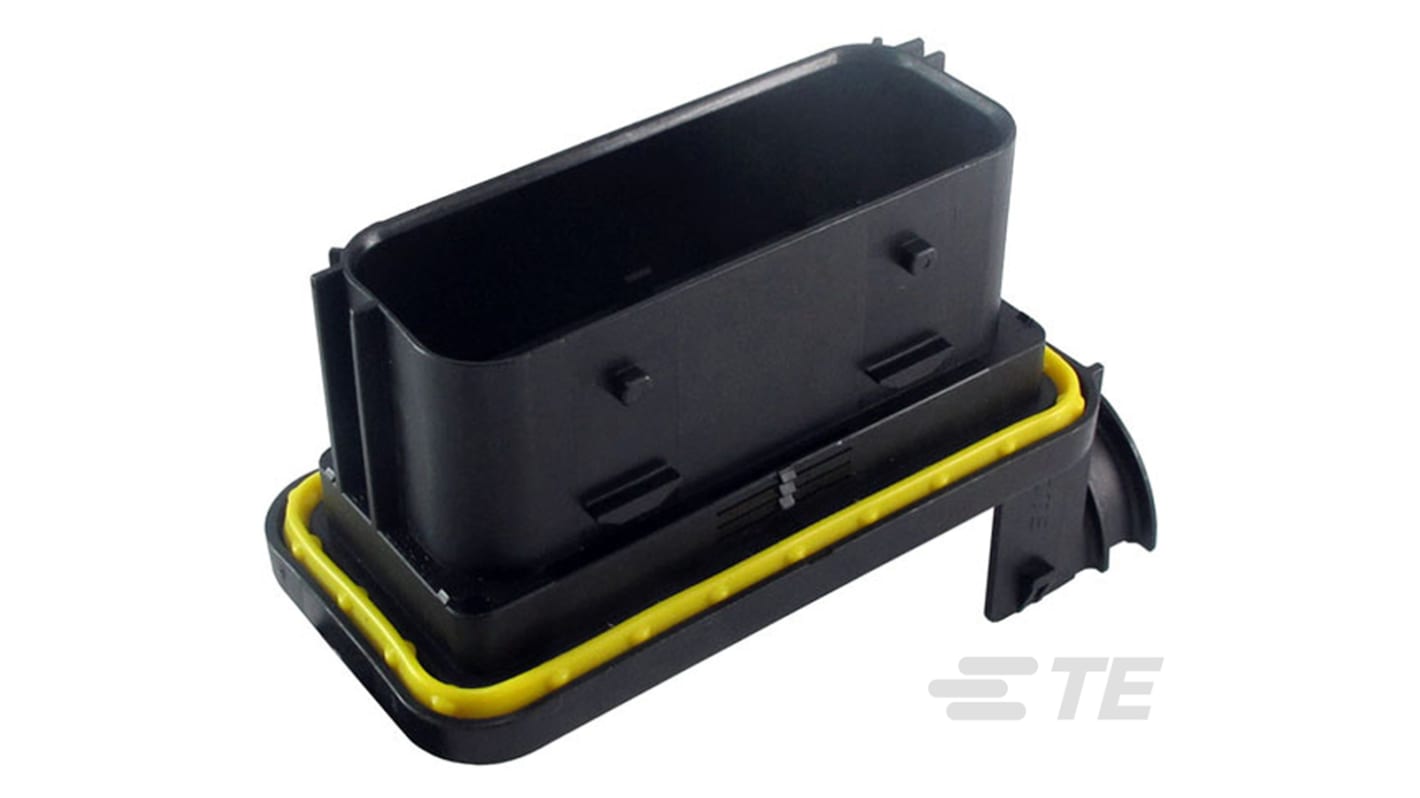

TE Connectivity, AMPSEAL Automotive Connector Socket Black Panel Mount 28 Way 2138846-1
- RS Stock No.:
- 188-1356
- Distrelec Article No.:
- 304-65-017
- Mfr. Part No.:
- 2138846-1
- Brand:
- TE Connectivity
Subtotal (1 tray of 10 units)*
£92.04
(exc. VAT)
£110.45
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 80 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
---|---|---|
10 + | £9.204 | £92.04 |
*price indicative
- RS Stock No.:
- 188-1356
- Distrelec Article No.:
- 304-65-017
- Mfr. Part No.:
- 2138846-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Type | Automotive connector housing | |
Number of Contacts | 28 | |
Gender | Female | |
Number of Rows | 4 | |
Mounting Type | Panel Mount | |
Series | AMPSEAL | |
Colour | Black | |
Height | 48.45mm | |
Width | 111.25mm | |
Depth | 72.75mm | |
Housing Material | PBT | |
Maximum Operating Temperature | +125°C | |
Minimum Operating Temperature | -55°C | |
Series Number | 2138846 | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Type Automotive connector housing | ||
Number of Contacts 28 | ||
Gender Female | ||
Number of Rows 4 | ||
Mounting Type Panel Mount | ||
Series AMPSEAL | ||
Colour Black | ||
Height 48.45mm | ||
Width 111.25mm | ||
Depth 72.75mm | ||
Housing Material PBT | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -55°C | ||
Series Number 2138846 | ||
AMPSEAL 16 hybrid lever housings feature a lever slide mechanism for mating and a slide in mounting clip. The mix of 24 size 16 and 4 size 12 terminals, carrying up to 13 or 25 amps each, adds design flexibility.
Accepts circular stamped and formed or screw machine terminals
Hybrid pin out arrangement, multiple terminal sizes in the same housing
Lever Slide mechanism for smooth mating and unmating
Sealed connector system, sealing to the wires, between connectors and to the panel
Tool less mounting and unmounting to the panel using the drop-and-slide mounting clip
Pre-staged TPA on the plug and cap assemblies
Tool less TPA removal on the plug assembly
Mechanical as well as Colour coded keying
Same wire cover can be used on the plug and cap assemblies
Different Colour mounting clips for Differnet panel thicknesses providing easy identifi cation and application
APPLICATIONS
Pass Through / Bulkhead
Wire to Wire / Bracket Mount
Hybrid pin out arrangement, multiple terminal sizes in the same housing
Lever Slide mechanism for smooth mating and unmating
Sealed connector system, sealing to the wires, between connectors and to the panel
Tool less mounting and unmounting to the panel using the drop-and-slide mounting clip
Pre-staged TPA on the plug and cap assemblies
Tool less TPA removal on the plug assembly
Mechanical as well as Colour coded keying
Same wire cover can be used on the plug and cap assemblies
Different Colour mounting clips for Differnet panel thicknesses providing easy identifi cation and application
APPLICATIONS
Pass Through / Bulkhead
Wire to Wire / Bracket Mount
