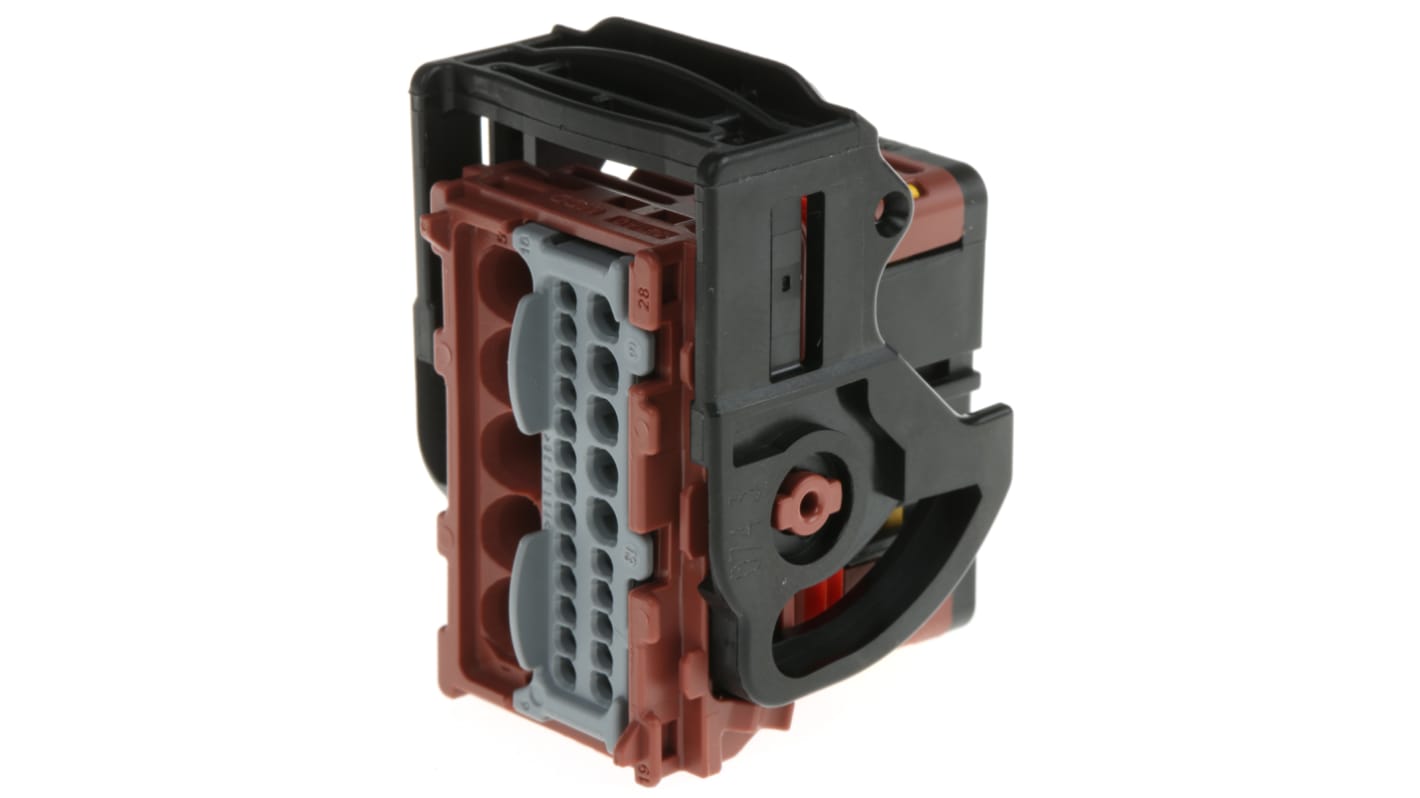

Molex, CMC Automotive Connector Socket Black Cable Mount 28 Way, Crimp Termination 64318-3011
- RS Stock No.:
- 774-8144
- Distrelec Article No.:
- 302-99-853
- Mfr. Part No.:
- 64318-3011
- Brand:
- Molex
Save 20% when you buy 50 units
Subtotal (1 unit)*
£11.06
(exc. VAT)
£13.27
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 38 unit(s) ready to ship
- Plus 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £11.06 |
| 10 - 49 | £9.81 |
| 50 + | £8.81 |
*price indicative
- RS Stock No.:
- 774-8144
- Distrelec Article No.:
- 302-99-853
- Mfr. Part No.:
- 64318-3011
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Number of Contacts | 28 | |
| Type | Automotive Connector | |
| Gender | Female | |
| Number of Rows | 3 | |
| Current Rating | 21A | |
| Mounting Type | Cable Mount | |
| Series | CMC | |
| Colour | Black | |
| Termination Method | Crimp | |
| Height | 40.1mm | |
| Width | 42mm | |
| Depth | 40.8mm | |
| Housing Material | PBT | |
| Maximum Operating Temperature | +125°C | |
| Series Number | 64318 | |
| Corded | No | |
| Minimum Operating Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand Molex | ||
Number of Contacts 28 | ||
Type Automotive Connector | ||
Gender Female | ||
Number of Rows 3 | ||
Current Rating 21A | ||
Mounting Type Cable Mount | ||
Series CMC | ||
Colour Black | ||
Termination Method Crimp | ||
Height 40.1mm | ||
Width 42mm | ||
Depth 40.8mm | ||
Housing Material PBT | ||
Maximum Operating Temperature +125°C | ||
Series Number 64318 | ||
Corded No | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- CN
Molex CMC Series Automotive Connector, 21 A Current Rating, Cable Mount - 64318-3011
This automotive connector from Molex is designed to meet the high current requirements for automotive applications. With 28 contacts, female gender, and part of the CMC series, this connector is a reliable choice.
Features & Benefits
• Black PBT housing material ensures durability
• Cable mount for easy installation
• Crimp termination method for secure connections
• Wide operating temperature range from -40°C to +125°C
• High current rating of 21A
• Modular design for flexibility in applications
• Cable mount for easy installation
• Crimp termination method for secure connections
• Wide operating temperature range from -40°C to +125°C
• High current rating of 21A
• Modular design for flexibility in applications
Applications
• Ideal for use in powertrain and body electronics in cars, trucks, and buses
• Suitable for wire-to-board connections
• Can be used for high-density and power applications
• Suitable for wire-to-board connections
• Can be used for high-density and power applications
Can it withstand extreme temperatures?
Yes, this automotive connector can operate in temperatures ranging from -40°C to +125°C.
Will it provide a secure connection in high-current applications?
Yes, with a current rating of 21A, this connector ensures a reliable power connection.
Is it easy to install?
Yes, the cable mount design makes installation quick and hassle-free.
Can it be used in modular connecting systems?
Yes, this connector is part of the CMC series, which is designed for modular applications.
Molex CMC Hybrid Connectors
