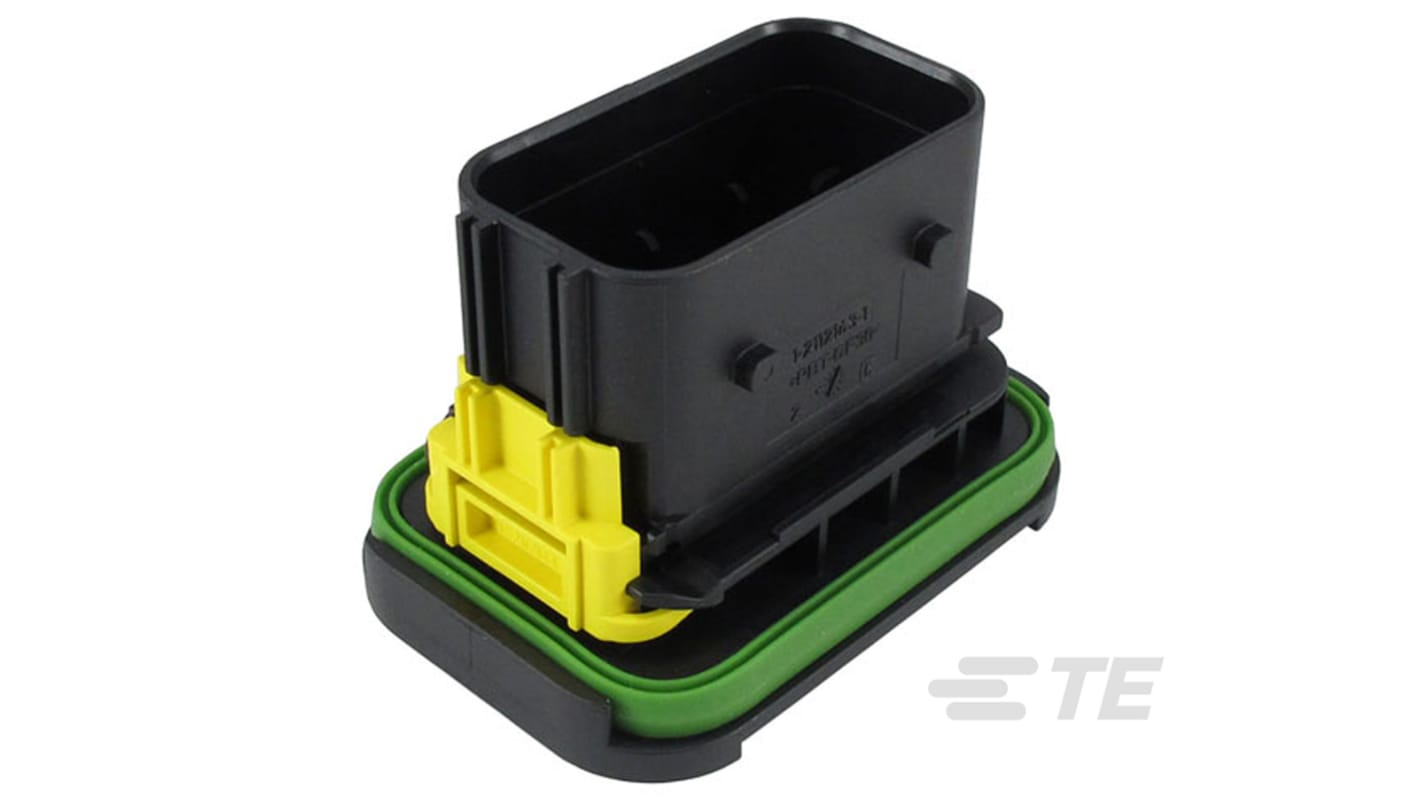

TE Connectivity Automotive Connector Socket Black Flange Mount 21 Way 1-2112162-1
- RS Stock No.:
- 183-9166
- Mfr. Part No.:
- 1-2112162-1
- Brand:
- TE Connectivity
Save 29% when you buy 50 units
Subtotal (1 unit)*
£14.17
(exc. VAT)
£17.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 77 unit(s) ready to ship
- Plus 131 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £14.17 |
10 - 49 | £11.76 |
50 + | £10.06 |
*price indicative
- RS Stock No.:
- 183-9166
- Mfr. Part No.:
- 1-2112162-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Number of Contacts | 21 | |
Type | Tab Housing | |
Gender | Female | |
Number of Rows | 3 | |
Current Rating | 40A | |
Mounting Type | Flange Mount | |
Colour | Black | |
IP Rating | IP67, IP6K9K | |
Height | 51.5mm | |
Width | 46.1mm | |
Depth | 66.6mm | |
Housing Material | Glass Filled PBT | |
Minimum Operating Temperature | -40°C | |
Contact Plating | Tin | |
Maximum Operating Temperature | +140°C | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Number of Contacts 21 | ||
Type Tab Housing | ||
Gender Female | ||
Number of Rows 3 | ||
Current Rating 40A | ||
Mounting Type Flange Mount | ||
Colour Black | ||
IP Rating IP67, IP6K9K | ||
Height 51.5mm | ||
Width 46.1mm | ||
Depth 66.6mm | ||
Housing Material Glass Filled PBT | ||
Minimum Operating Temperature -40°C | ||
Contact Plating Tin | ||
Maximum Operating Temperature +140°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- MA
LEAVYSEAL housings are heavy-duty, environmentally sealed connectors that are available in arrangements from 15 to 92 positions. These connectors are in six sizes, utilize a lever lock system for mating, and feature an integrated cable attachment. The housings accept AMP MCP 6.3/4.8K, 2.8, and 1.5K box and blade contacts and carry up to 40 amps.
