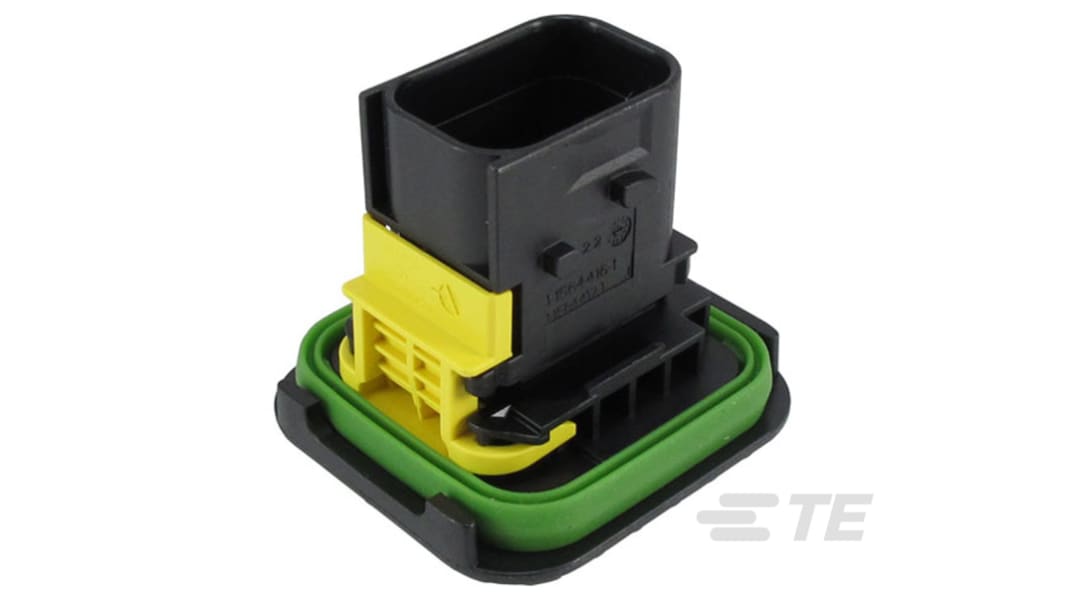

TE Connectivity, HDSCS Automotive Connector Socket Black Flange Mount 8 Way 1-1564416-1
- RS Stock No.:
- 183-9144
- Mfr. Part No.:
- 1-1564416-1
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 pack of 2 units)*
£6.30
(exc. VAT)
£7.56
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 80 unit(s) ready to ship
- Plus 46 unit(s) ready to ship from another location
- Plus 154 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 48 | £3.15 | £6.30 |
| 50 - 98 | £2.90 | £5.80 |
| 100 + | £2.645 | £5.29 |
*price indicative
- RS Stock No.:
- 183-9144
- Mfr. Part No.:
- 1-1564416-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Number of Contacts | 8 | |
| Type | Tab Housing | |
| Gender | Female | |
| Number of Rows | 2 | |
| Current Rating | 20A | |
| Mounting Type | Flange Mount | |
| Series | HDSCS | |
| Colour | Black | |
| IP Rating | IP67, IP6K9K | |
| Height | 27mm | |
| Width | 32.6mm | |
| Depth | 47.1mm | |
| Housing Material | Glass Filled PBT | |
| Maximum Operating Temperature | +140°C | |
| Minimum Operating Temperature | -40°C | |
| Contact Plating | Tin | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Number of Contacts 8 | ||
Type Tab Housing | ||
Gender Female | ||
Number of Rows 2 | ||
Current Rating 20A | ||
Mounting Type Flange Mount | ||
Series HDSCS | ||
Colour Black | ||
IP Rating IP67, IP6K9K | ||
Height 27mm | ||
Width 32.6mm | ||
Depth 47.1mm | ||
Housing Material Glass Filled PBT | ||
Maximum Operating Temperature +140°C | ||
Minimum Operating Temperature -40°C | ||
Contact Plating Tin | ||
RoHS Status: Exempt
HDSCS housings are heavy-duty, environmentally sealed connectors available in five sizes and arrangements from 2 to 18 cavities. These cable to cable and cable to device connectors have a slide lock for mating. They accept AMP MCP 6.3/4.8K, 2.8, and 1.5K contacts and carry up to 40 amps.
