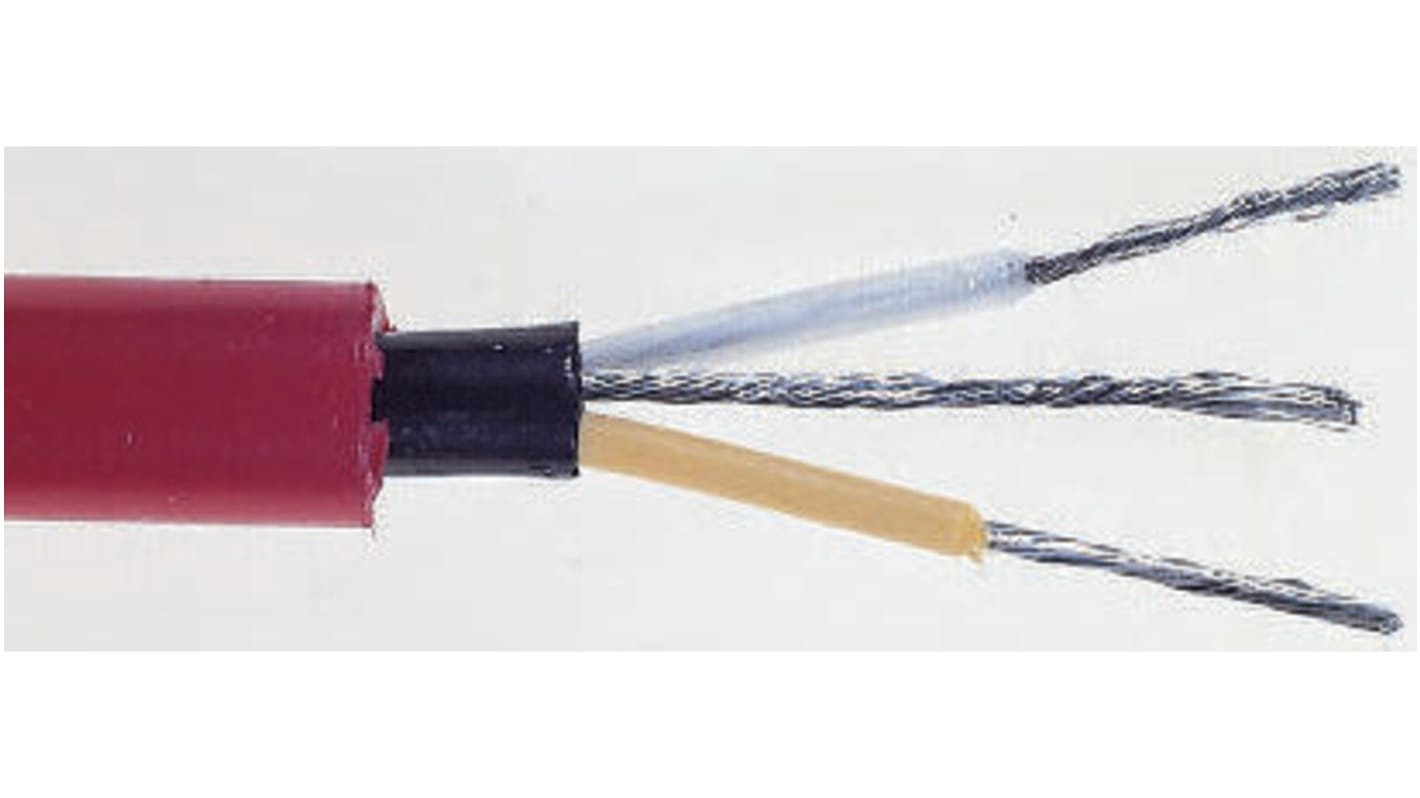

RS PRO 2 Core Screened, 6.6mm od, 100m, Red
- RS Stock No.:
- 783-2807
- Brand:
- RS PRO
Image representative of range
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£1.151
(exc. VAT)
£1.381
(inc. VAT)
- RS Stock No.:
- 783-2807
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Number of Cores | 2 | |
| Screened/Unscreened | Screened | |
| Insulation Material | PE | |
| Outer Diameter | 6.6mm | |
| Length | 100m | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +80°C | |
| Sheath Colour | Red | |
| Screen Type | Tinned Copper Braid | |
| Number of Strands | 32 | |
| Drain Wire | Yes | |
| Capacitance Core To Core | 165pF/m | |
| Size of Strands | 0.12 mm | |
| Voltage Rating | 60 V | |
| Conductor Material | Tinned Copper | |
| Cable Shape | Multicore | |
| Conductor Resistance | 55.5 Ω/km | |
| Sheath Material | Polyvinyl Chloride PVC | |
| Core Strands | 32/0.12 mm | |
| Conductor Strand Type | Stranded | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Number of Cores 2 | ||
Screened/Unscreened Screened | ||
Insulation Material PE | ||
Outer Diameter 6.6mm | ||
Length 100m | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +80°C | ||
Sheath Colour Red | ||
Screen Type Tinned Copper Braid | ||
Number of Strands 32 | ||
Drain Wire Yes | ||
Capacitance Core To Core 165pF/m | ||
Size of Strands 0.12 mm | ||
Voltage Rating 60 V | ||
Conductor Material Tinned Copper | ||
Cable Shape Multicore | ||
Conductor Resistance 55.5 Ω/km | ||
Sheath Material Polyvinyl Chloride PVC | ||
Core Strands 32/0.12 mm | ||
Conductor Strand Type Stranded | ||
- COO (Country of Origin):
- CN
