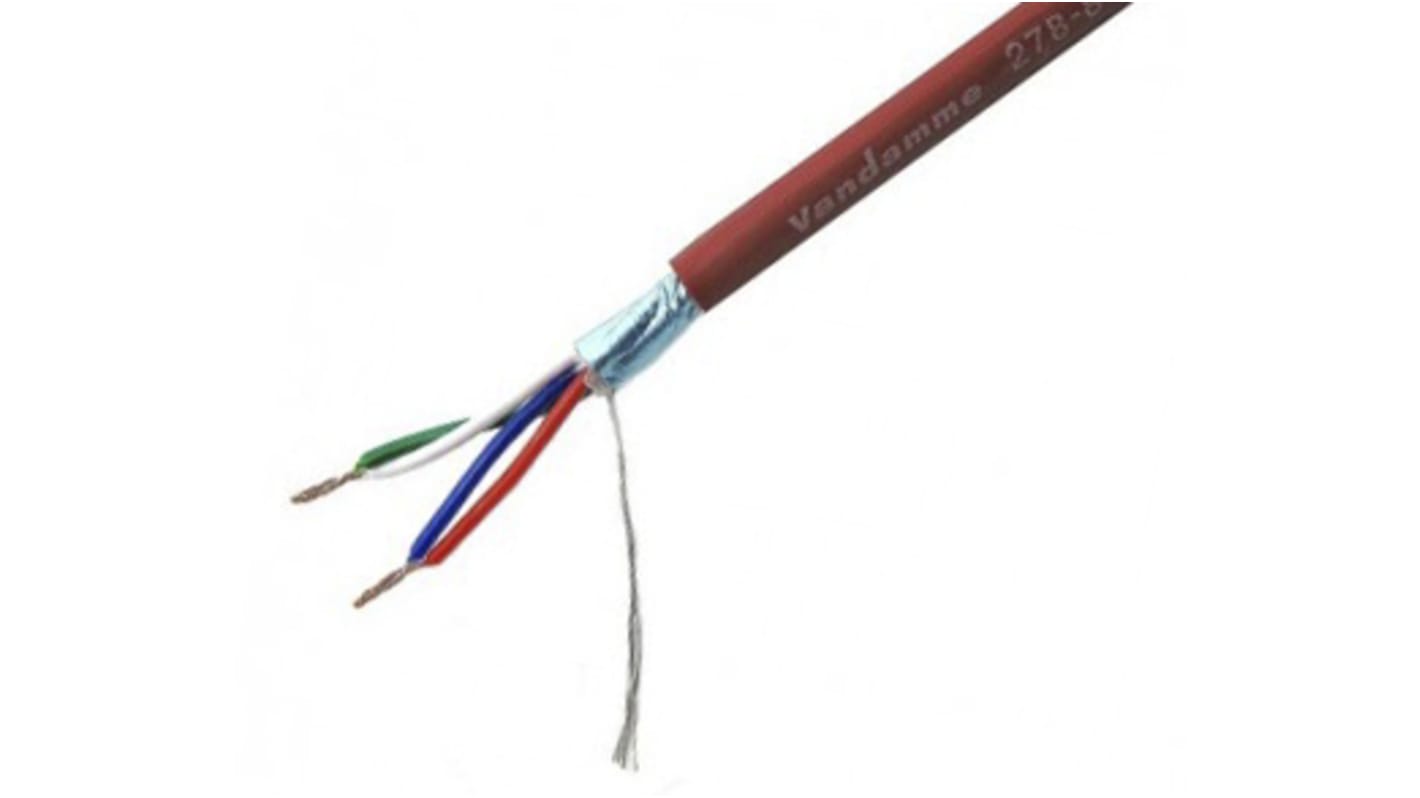

Van Damme Microphone Cable, 0.08 mm² CSA Screened, 3.7mm od, 100m, Brown
- RS Stock No.:
- 453-3841
- Mfr. Part No.:
- 278-801-000
- Brand:
- Van Damme
Subtotal (1 reel of 100 metres)*
£168.16
(exc. VAT)
£201.79
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 21 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £168.16 | £1.682 |
*price indicative
- RS Stock No.:
- 453-3841
- Mfr. Part No.:
- 278-801-000
- Brand:
- Van Damme
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Van Damme | |
| Audio Cable Type | Microphone Cable | |
| Cross Sectional Area | 0.08 mm² | |
| Screened/Unscreened | Screened | |
| Insulation Material | Polyolefin | |
| Outer Diameter | 3.7mm | |
| Length | 100m | |
| Fire Behaviour | Low Smoke Zero Halogen (LSZH) | |
| Sheath Colour | Brown | |
| American Wire Gauge | 28 AWG | |
| Screen Type | Aluminium/PET Foil | |
| Capacitance Core To Core | 48pF/m | |
| Size of Strands | 0.12 mm | |
| Conductor Material | Oxygen Free Copper | |
| Core Strands | 7 x 0.12 mm | |
| Conductor Resistance | 90 Ω/km | |
| Sheath Material | Low Smoke Zero Halogen (LSZH) | |
| Number of Strands | 7 | |
| Standards Met | IEC 60332-1 | |
| Cable Shape | Multicore | |
Select all | ||
|---|---|---|
Brand Van Damme | ||
Audio Cable Type Microphone Cable | ||
Cross Sectional Area 0.08 mm² | ||
Screened/Unscreened Screened | ||
Insulation Material Polyolefin | ||
Outer Diameter 3.7mm | ||
Length 100m | ||
Fire Behaviour Low Smoke Zero Halogen (LSZH) | ||
Sheath Colour Brown | ||
American Wire Gauge 28 AWG | ||
Screen Type Aluminium/PET Foil | ||
Capacitance Core To Core 48pF/m | ||
Size of Strands 0.12 mm | ||
Conductor Material Oxygen Free Copper | ||
Core Strands 7 x 0.12 mm | ||
Conductor Resistance 90 Ω/km | ||
Sheath Material Low Smoke Zero Halogen (LSZH) | ||
Number of Strands 7 | ||
Standards Met IEC 60332-1 | ||
Cable Shape Multicore | ||
- COO (Country of Origin):
- IT
Brown Series Ecoflex Starquad LSZH Cable
Designed and created due to the increasing demand for a quality range of OFC Cables. Stringent copper purity tests have resulted in a highly flexible yet extremely robust range of cables. This range of cable caters for the professional in audio recording or broadcast.
Miniature starquad balanced audio cable ideal for audio installations in harsh electrical environments
Starquad construction for greater rejection of EMI and RF electrical interference
Linear crystal oxygen free copper conductors for excellent signal integrity
Foil screen and outer jacket bonded for easy stripping and quick preparation time
Starquad construction for greater rejection of EMI and RF electrical interference
Linear crystal oxygen free copper conductors for excellent signal integrity
Foil screen and outer jacket bonded for easy stripping and quick preparation time
