Belden70045LV Series 2 Core Speaker Cable, 1.5 mm² CSA, 6.8mm od, 100m, Black
- RS Stock No.:
- 187-6121
- Mfr. Part No.:
- 70045LV.00100
- Brand:
- Belden
Subtotal (1 reel of 100 metres)*
£300.17
(exc. VAT)
£360.20
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 1 unit(s) shipping from 14 November 2025
- Plus 2 unit(s) shipping from 12 December 2025
- Plus 3 unit(s) shipping from 19 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £300.17 | £3.002 |
*price indicative
- RS Stock No.:
- 187-6121
- Mfr. Part No.:
- 70045LV.00100
- Brand:
- Belden
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Audio Cable Type | Speaker Cable | |
| Number of Cores | 2 | |
| Cross Sectional Area | 1.5 mm² | |
| Insulation Material | LSZH | |
| Outer Diameter | 6.8mm | |
| Length | 100m | |
| Minimum Operating Temperature | -5°C | |
| CPR Certification | B2ca | |
| Maximum Operating Temperature | +70°C | |
| Fire Behaviour | Flame Retardant | |
| Sheath Colour | Black | |
| Standards Met | Euroclass B2ca-s1 d1 a1 | |
| Cable Shape | Multicore | |
| Conductor Strand Type | Stranded | |
| Series | 70045LV | |
| Number of Strands | 30 | |
| Conductor Material | Bare Copper | |
| Voltage Rating | 300 V | |
| Conductor Resistance | 13 Ω/km | |
| Sheath Material | Low Smoke Zero Halogen (LSZH) | |
| Core Strands | 30/0.25 mm | |
Select all | ||
|---|---|---|
Brand Belden | ||
Audio Cable Type Speaker Cable | ||
Number of Cores 2 | ||
Cross Sectional Area 1.5 mm² | ||
Insulation Material LSZH | ||
Outer Diameter 6.8mm | ||
Length 100m | ||
Minimum Operating Temperature -5°C | ||
CPR Certification B2ca | ||
Maximum Operating Temperature +70°C | ||
Fire Behaviour Flame Retardant | ||
Sheath Colour Black | ||
Standards Met Euroclass B2ca-s1 d1 a1 | ||
Cable Shape Multicore | ||
Conductor Strand Type Stranded | ||
Series 70045LV | ||
Number of Strands 30 | ||
Conductor Material Bare Copper | ||
Voltage Rating 300 V | ||
Conductor Resistance 13 Ω/km | ||
Sheath Material Low Smoke Zero Halogen (LSZH) | ||
Core Strands 30/0.25 mm | ||
- COO (Country of Origin):
- NL

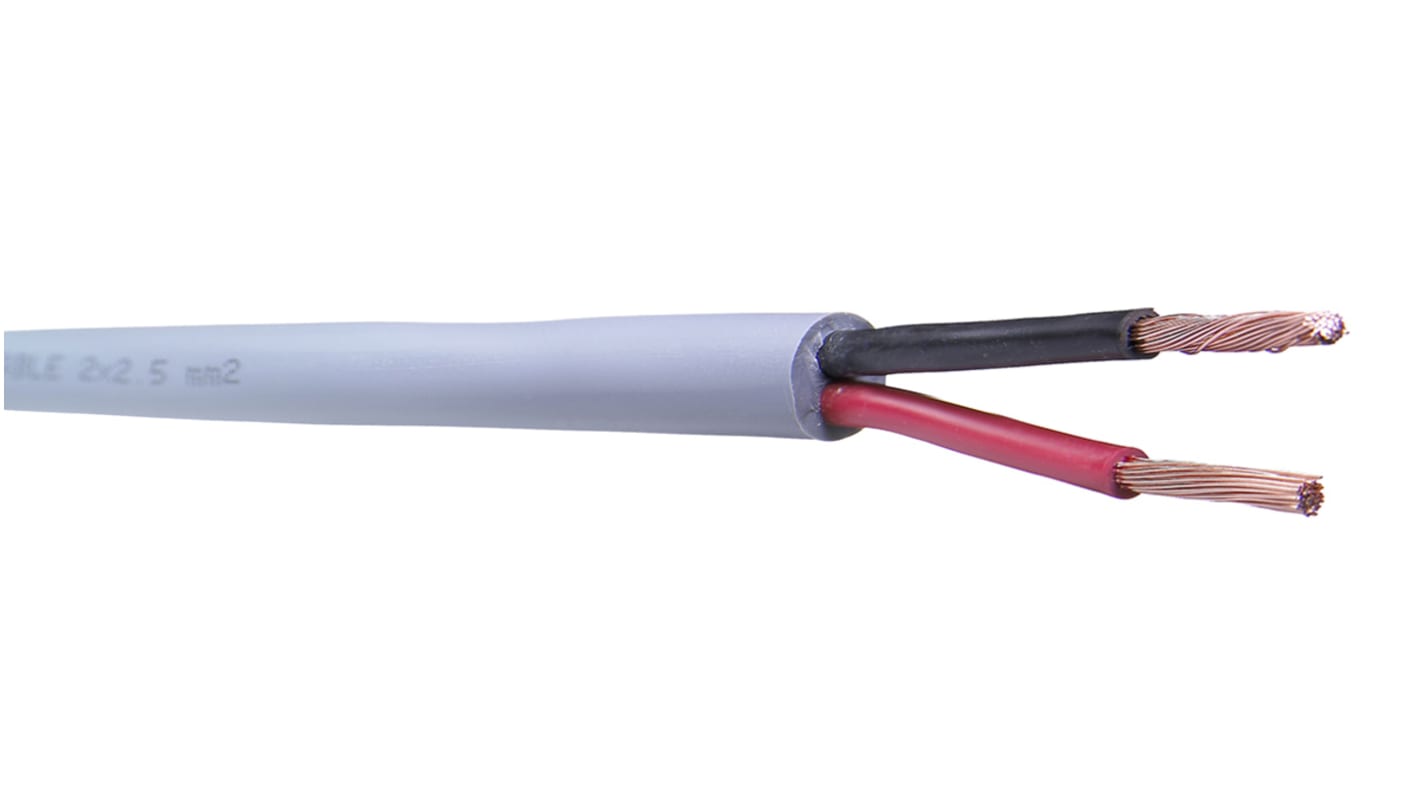

Belden Audio Cable, 2 Cores, 6.8mm OD - PB00179 Series - 70045LV.00100
Go for this audio cable from Belden to get your speakers into the groove of quality performance. With an outer diameter of only 6.8mm, it gets in and around complex setups with ease. As they're made using an upright shaft manufacturing process, the highly-conductive copper conductors deliver pure sounds ringing with clarity. This product's low-flame spread and heat-release properties make it a fire-safe option in any environment.
Features & Benefits
• Grey jacket colour for easy identification
• Flexible, so easily navigates bends around equipment
• 100-metre length for long runs or lots of smaller jobs
• Flexible, so easily navigates bends around equipment
• 100-metre length for long runs or lots of smaller jobs
Applications
• Media entertainment systems
• PA equipment
• Concert setups
• PA equipment
• Concert setups
Why does this audio cable have an LSZH sheath?
LSZH stands for low-smoke, zero-halogen and has to do with a product's fire safety. This means the cable jacket releases minimal smoke when it catches fire and contains no toxins that can harm you.
