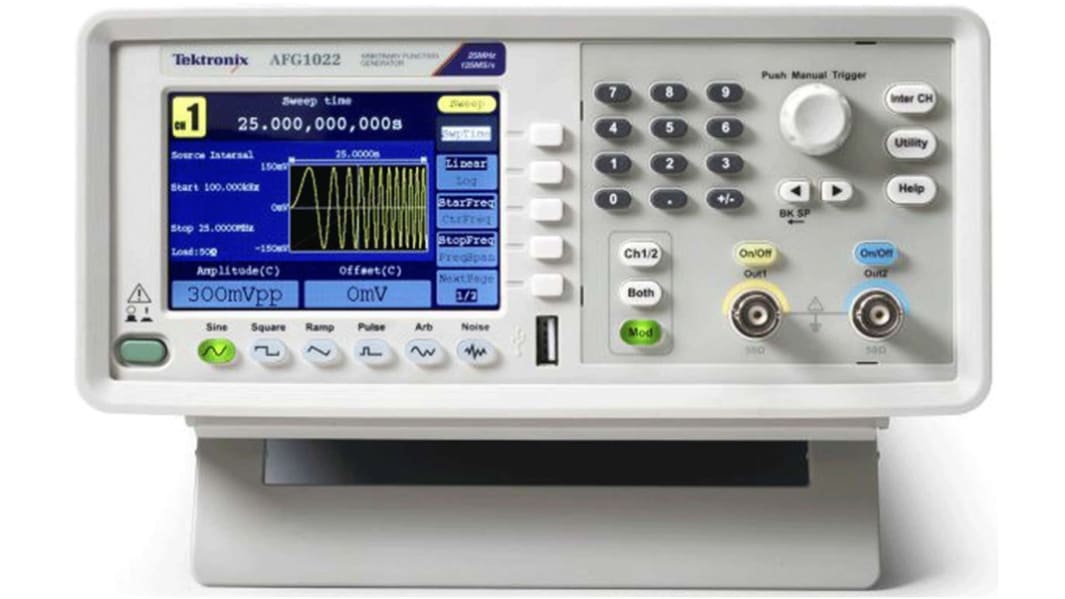

Tektronix AFG1022 Arbitrary Waveform Generator, 10MHz Max, 2-Channel, 1 μHz, 1 mHz Min - With RS Calibration

View this category

Subtotal (1 unit)*

£1,028.33

(exc. VAT)

£1,234.00

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2 unit(s) ready to ship
  • Plus 3 unit(s) shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£1,028.33

*price indicative

RS Stock No.:
192-5845
Mfr. Part No.:
AFG1022
Brand:
Tektronix
Find similar products by selecting one or more attributes.
Select all

Brand

Tektronix

Maximum Frequency

10 MHz, 12.5 MHz, 25MHz

Minimum Frequency

1 μHz, 1 mHz

Maximum Frequency Triangle Ramps

1MHz

Minimum Frequency Triangle Ramps

1µHz

Number of Channels

2

Maximum Sampling Frequency

125Msps

Resolution

12 Digit

Pulse Resolution

5Digit

Calibrated

RSCAL

Maximum Pulse Width

999000s

Minimum Pulse Width

40ns

Arbitrary Waveforms

Yes

Dimensions

235 x 295 x 110mm

Maximum Storage

50

Length

235mm

Model Number p

AFG1022

Sweep

Linear, Logarithmic

Rise - Fall Time

<10 ns, <12ns

Display Type

3.95 in TFT-LCD

Maximum Operating Temperature

+40°C

Minimum Operating Temperature

0°C

Interface Type

USB

Width

295mm

Weight

3.4kg

Connector Type

BNC

Inputs

Modulation In, Reference In, Trig In

Data Entry

Keypad

Height

110mm

COO (Country of Origin):
CN

Tektronix Arbitrary Function Generator Series AFG1000


The Tektronix arbitrary waveform generator is high tech with 2 channels supporting frequencies up to 25MHz. It is designed to appeal to educational institutions wanting to fit out their laboratories with modern, flexible test instrumentation capable of high-performance at an attractive price. Its key performance specifications include dual-channel, high bandwidth, 14-bit vertical resolution and 1μHz frequency resolution. The models offer 50 built-in standard function and arbitrary waveforms with continuous, modulation, sweep and burst modes to cover almost all test requirements in basic education laboratories. Its high resolution offers an easy and precise way of performing frequency, period, pulse width and duty cycle measurements. The models incorporate an intuitive user interface with a 3.95in TFT colour display, shortcut buttons and rotary knob for quick setting adjustments. The compact dual channel form saves cost and valuable bench space. This device has various applications that include electrical and electronics experiments, communications experiments, sensor simulation and functional test. It comes as standard 5 year warranty and free ArbExpress software.

Features and Benefits


• 5 year warranty included
• 125 MS/s sampling rate and 14-bit vertical resolution enable great signal fidelity
• 1 mVp-p to 10 Vp-p output amplitude over the whole frequency range
• 2 to 8,192-point length of memory for user-defined arbitrary waveforms
• 64-MByte internal non-volatile memory for arbitrary waveform storage
• Standard USB host/device for memory expansion and remote control
• Continuous, sweeping, burst and modulation modes
• Built-in 200 MHz counter with 6-digit resolution
• Compact form factor for stacking on other bench instruments to save valuable bench space
• Intuitive user interface shortens the learning curve for students and other users
• Free ArbExpress makes user defined waveforms editing extremely easy

Applications


• Automotive
• Battery Testing
• Embedded Design
• Power Measurements and Analysis
• Education
• Manufacturing test/troubleshooting
• Power Semiconductor Testing

Certifications


CE certified
ISO 9001
ISO 14001
