STMicroelectronics AEK-AUD-C1D9031, AVAS Solution Based on SPC582B60E1 Chorus Family MCU and FDA903D Class D Audio
- RS Stock No.:
- 217-3780
- Mfr. Part No.:
- AEK-AUD-C1D9031
- Brand:
- STMicroelectronics
Subtotal (1 unit)*
£88.16
(exc. VAT)
£105.79
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 22 left, ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £88.16 |
*price indicative
- RS Stock No.:
- 217-3780
- Mfr. Part No.:
- AEK-AUD-C1D9031
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | STMicroelectronics | |
Analogue Function | Audio Amplifier | |
Kit Classification | Evaluation Board | |
For Use With | FDA903D Class D Amplifier | |
Featured Device | SPC582B60E1 | |
Kit Name | AVAS Solution Based on SPC582B60E1 Chorus Family MCU and FDA903D Class D Audio Amplifier | |
Select all | ||
---|---|---|
Brand STMicroelectronics | ||
Analogue Function Audio Amplifier | ||
Kit Classification Evaluation Board | ||
For Use With FDA903D Class D Amplifier | ||
Featured Device SPC582B60E1 | ||
Kit Name AVAS Solution Based on SPC582B60E1 Chorus Family MCU and FDA903D Class D Audio Amplifier | ||
AVAS solution based on SPC582B60E1 Chorus family MCU and FDA903D Class D audio amplifier

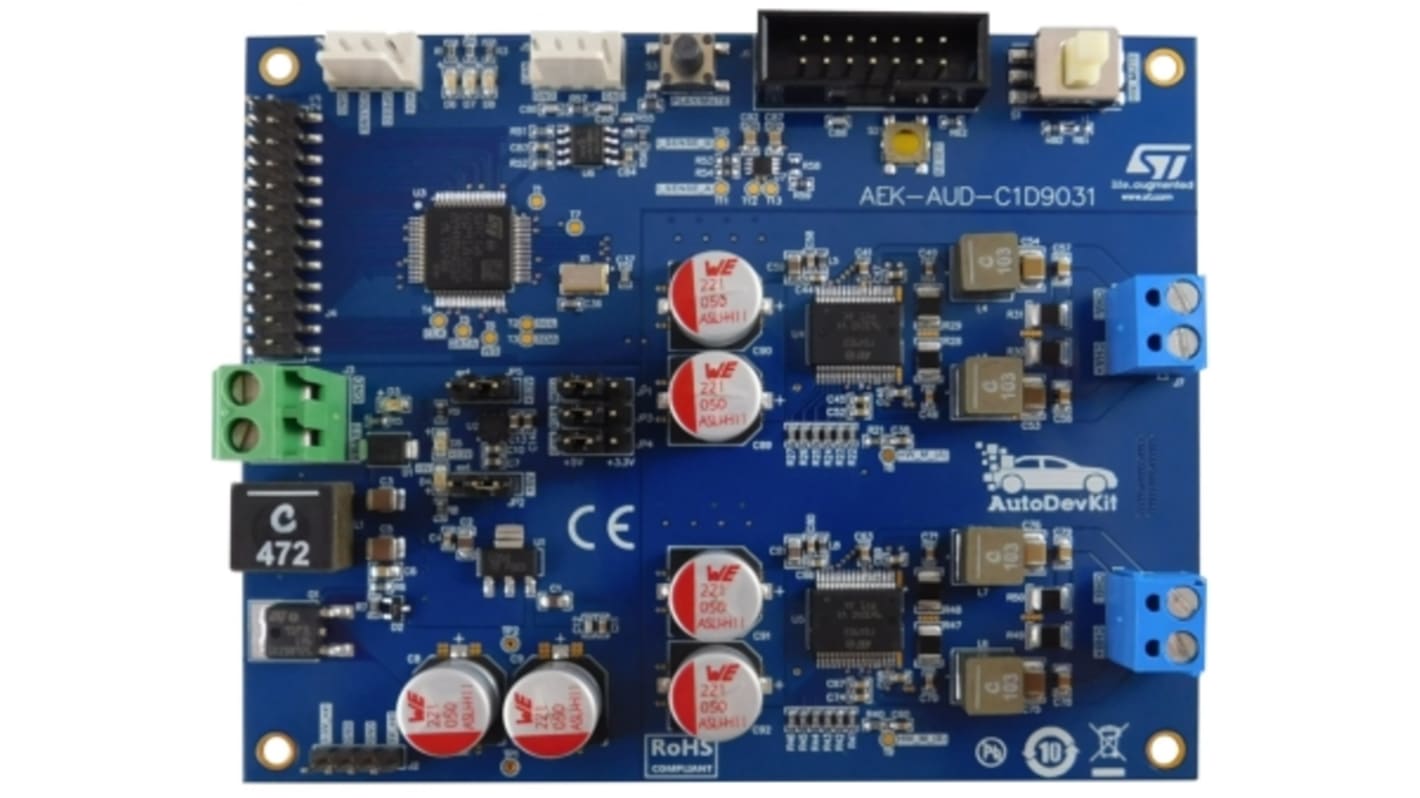

STMicroelectronics AEK-AUD-C1D9031 is a very compact AVAS solution based on SPC582B60E1 Chorus family MCU and FDA903D Class D audio amplifiers that emits warning sounds to alert pedestrians of the presence of e-vehicles.
The AEK-AUD-C1D9031 integrates two audio amplifiers in stereo mode or two separate audio channels. The board compact size allows the designer to strategically place different modules around the vehicle to ensure that warning sounds can be heard along the entire vehicle length. All the modules can be controlled by a central MCU via CAN interface.
The embedded SPC582B60E1 microcontroller monitors and controls the two Class-D FDA903D power amplifiers driving the loudspeakers; the MCU sends the audio samples via I2S bus and programs the amplifiers via I2C interface.
Key features
- Embeds two FDA903D class D automotive grade audio amplifiers and an SPC582B60E1 Chorus family MCU with 1 Mb flash
- Supports audio stream via I²S interface
- Supports CAN bus interface for remote control and diagnostics
- Dedicated DC diagnostic interrupt pin to signal malfunctions
- Dedicated MUTE pin
- Open load in play detection
- Short to Vᴄᴄ/GND diagnostics
- Output voltage and current detection
- Thermal protection
- Compact size: 110 mm x 90 mm
- WEEE and RoHS compliant
- Included in the AutoDevKit initiative
