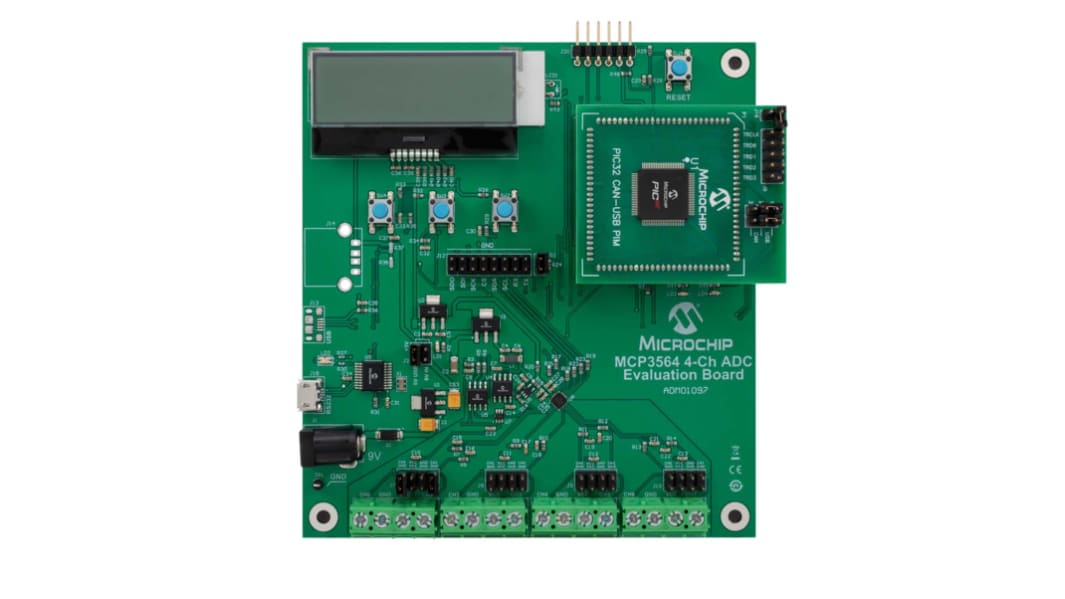

Microchip ADM01097, MCP3564 ADC Evaluation Board V2 for PIC32 MCUs Evaluation Board for PIC32 MCUs for MCP3564
- RS Stock No.:
- 204-2688
- Mfr. Part No.:
- ADM01097
- Brand:
- Microchip
Subtotal (1 unit)*
£176.76
(exc. VAT)
£212.11
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £176.76 |
*price indicative
- RS Stock No.:
- 204-2688
- Mfr. Part No.:
- ADM01097
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Microchip | |
Kit Classification | Evaluation Board | |
For Use With | PIC32 MCUs | |
Featured Device | MCP3564 | |
Kit Name | MCP3564 ADC Evaluation Board V2 for PIC32 MCUs | |
Select all | ||
---|---|---|
Brand Microchip | ||
Kit Classification Evaluation Board | ||
For Use With PIC32 MCUs | ||
Featured Device MCP3564 | ||
Kit Name MCP3564 ADC Evaluation Board V2 for PIC32 MCUs | ||
The Microchip MCP3564 ADC Evaluation Board V2 for PIC32 MCUs provides the ability to evaluate the performance of the MCP3564. It also provides a development platform for 32-bit PIC device based applications, using existing 100-pin PIC microcontroller Plug-in Module (PIM) systems that are compatible with the Explorer 16 and other high-pin count PIC32 device-based demo boards.
Programmable data rate of up to 153.6 kSP
Offers integrated features such as internal oscillator, temperature sensor and burnout sensor detection
Fully configurable with Oversampling Ratio (OSR) from 32 to 98304 and gain from 1/3X to 64X
Comes with a 20 MHz SPI-compatible serial interface
Offers integrated features such as internal oscillator, temperature sensor and burnout sensor detection
Fully configurable with Oversampling Ratio (OSR) from 32 to 98304 and gain from 1/3X to 64X
Comes with a 20 MHz SPI-compatible serial interface
