Microchip ADM00523 Evaluation Board Evaluation Kit for 16-Bit MCUs System

View all Analogue Development Tools

Subtotal (1 unit)*

£291.39

(exc. VAT)

£349.67

(inc. VAT)

Add to Basket
Select or type quantity
Orders below £50.00 (exc. VAT) cost £6.95.
Temporarily out of stock
  • Shipping from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£291.39

*price indicative

RS Stock No.:
598-095
Mfr. Part No.:
ADM00523
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Product Type

Development Board Enclosure

Analogue Function

Evaluation Board

Kit Classification

Evaluation Kit

For Use With

16-Bit MCUs System

Standards/Approvals

RoHS

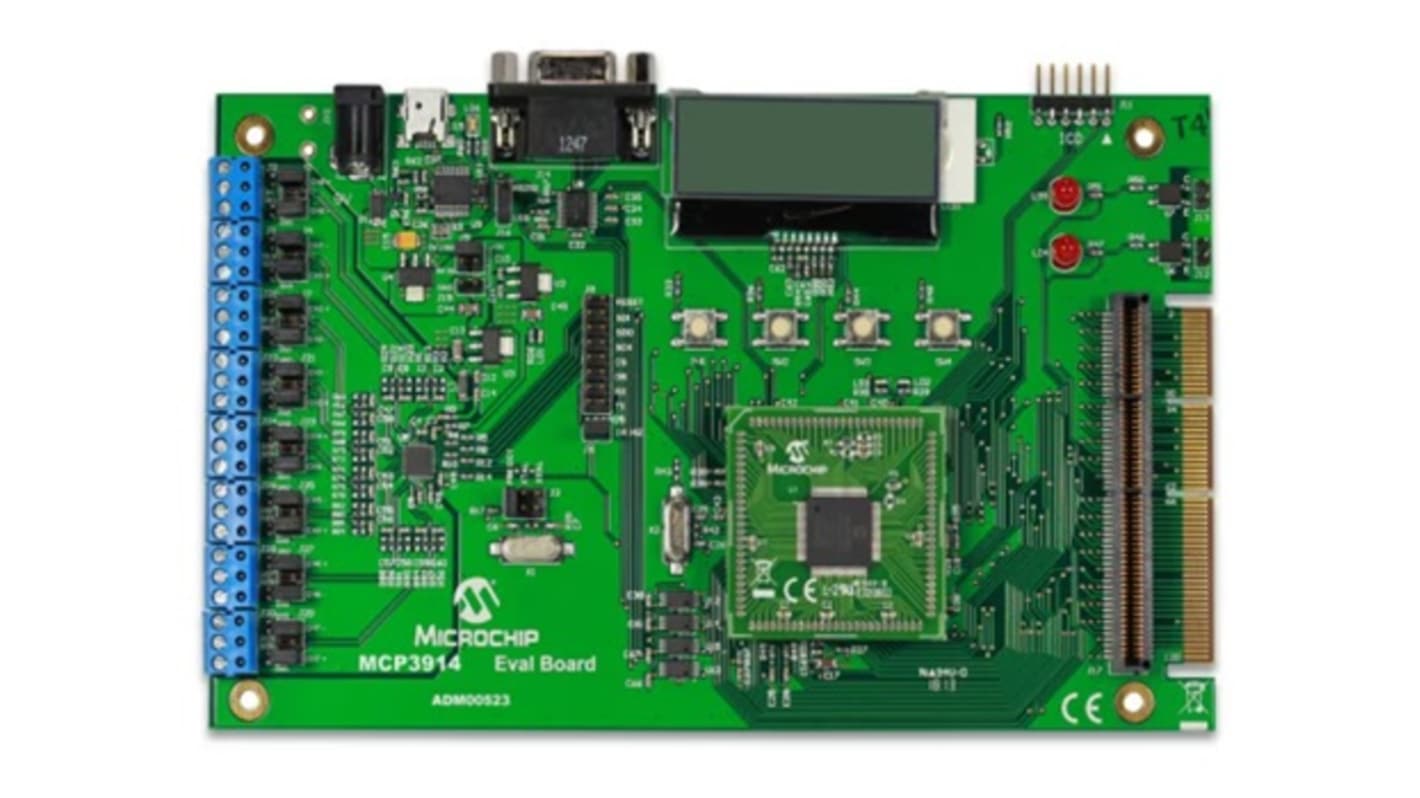

The Microchip Evaluation Board for 16-Bit MCUs system provides the opportunity to evaluate the performance of the MCP3914 eight-channel AFE. It also provides a development platform for 16-bit PIC based applications, using existing 100-pin PIC microcontroller Plug-in Module (PIM) systems that are compatible with the Explorer 16 and other high pin count PIC based demo boards. The system comes with a programmed PIC24FJ256GA110 PIM module that communicates with the Hi-Resolution ADC Utility (formerly the Energy Management Utility) software for data exchange and ADC setup via a USB connection to the board.

Eight channel ADC MCP3914 output display

System and ADC performance analysis through graphical PC software

Robust hardware design with analogue grounding and analogue/digital separation

PICtail Plus connectors for Explorer 16 daughter board compatibility
