Microchip ADM00845 Development Module for MIC28515 Syncronous Buck Switcher

View all Analogue Development Tools

Subtotal (1 box of 2 units)*

£170.42

(exc. VAT)

£204.50

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 18 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Box*
2 +£85.21£170.42

*price indicative

RS Stock No.:
599-066
Mfr. Part No.:
ADM00845
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Product Type

Voltage Regulator

Kit Classification

Development Module

For Use With

MIC28515 Syncronous Buck Switcher

Standards/Approvals

RoHS

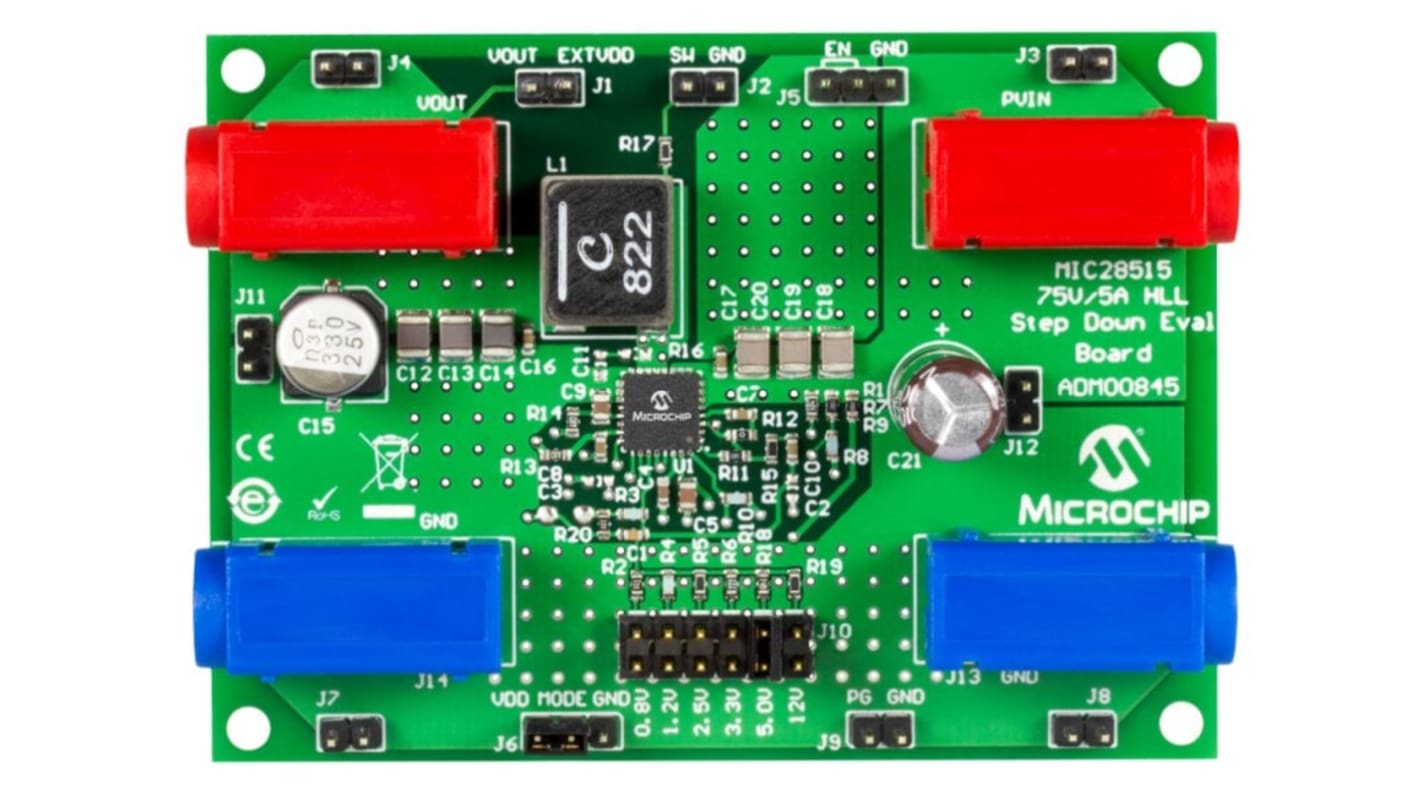

The Microchip MIC28515 75V/5A HLL Step Down Evaluation Board allows for the evaluation of the MIC28515 Synchronous Buck Switcher over an input supply range of 4.5V to 75V while providing 5A. The device operates with a programmable switching frequency from 270kHz to 800kHz and with two selectable modes CCM or HLL to improve efficiency at light loads.

MODE selection trough jumper J6

Open drain Power Good signal

Logic level Enable signal that can be used to enable or disable the controller
