Microchip ADM00317, MCP47X6 PICtail Plus Daughter Board Daughter Board Development Module for MCP4706, MCP4716, MCP4726
- RS Stock No.:
- 599-064
- Mfr. Part No.:
- ADM00317
- Brand:
- Microchip
Subtotal (1 box of 2 units)*
£107.47
(exc. VAT)
£128.964
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
---|---|---|
2 + | £53.735 | £107.47 |
*price indicative
- RS Stock No.:
- 599-064
- Mfr. Part No.:
- ADM00317
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Microchip | |
Analogue Function | Daughter Board | |
Kit Classification | Development Module | |
For Use With | MCP4706, MCP4716, MCP4726 | |
Featured Device | ADM00317 | |
Kit Name | MCP47X6 PICtail Plus Daughter Board | |
Select all | ||
---|---|---|
Brand Microchip | ||
Analogue Function Daughter Board | ||
Kit Classification Development Module | ||
For Use With MCP4706, MCP4716, MCP4726 | ||
Featured Device ADM00317 | ||
Kit Name MCP47X6 PICtail Plus Daughter Board | ||

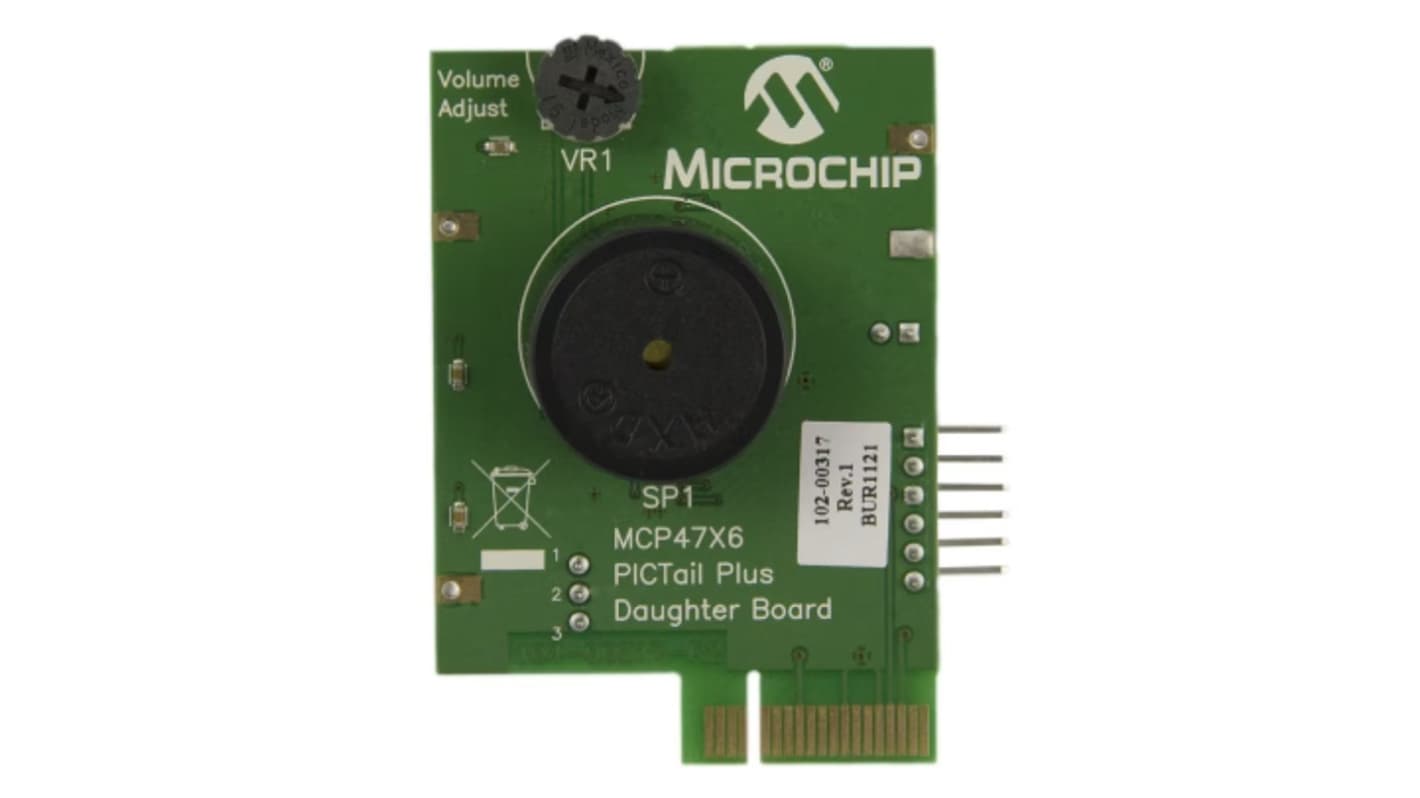

The Microchip MCP47X6 PICtail Plus Daughter Board allows customers to evaluate the capabilities of the MCP4726, MCP4716, and MCP4706 devices. This board can be controlled by the MCU of the Explorer 16 Development Board or by a PICkit Serial Analyser. The board also provides easy access via test points to desired signals to monitor device operation. A buzzer is supplied that is connected to the output of the MCP4726, which allows generation of an audible sound. The buzzer has a volume control.
Explorer 16 Development Board Interface and Firmware
PICkit Serial Analyser Interface
MCP4726, MCP4716, and MCP4706 devices
Easy access to desired signals of the MCP47x6 device
PICkit Serial Analyser Interface
MCP4726, MCP4716, and MCP4706 devices
Easy access to desired signals of the MCP47x6 device
