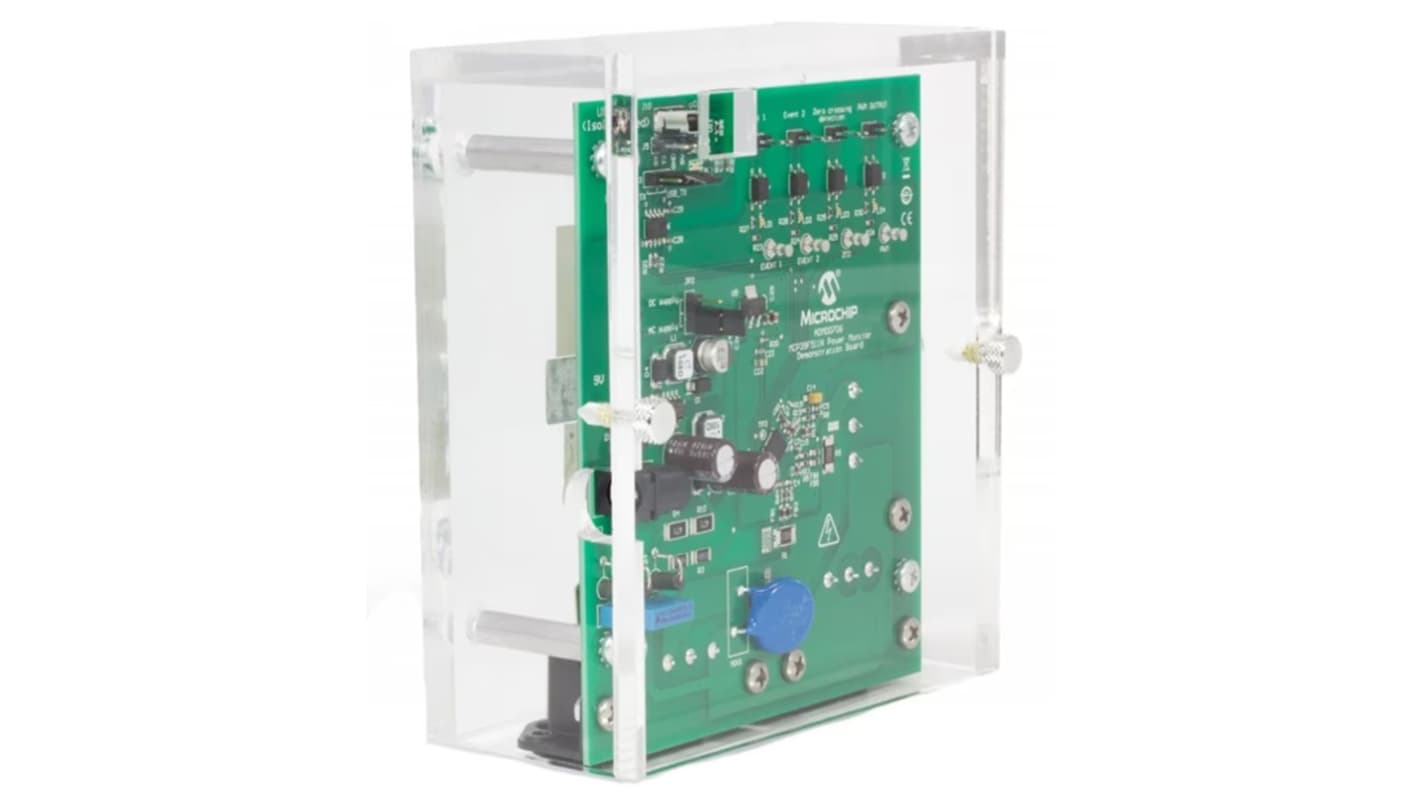

Microchip ADM00706, MCP39F511N Power Monitor Demonstration Board Power Monitor Development Module for AC/DC Power

View all Analogue Development Tools

Subtotal (1 unit)*

£252.30

(exc. VAT)

£302.76

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 21 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£252.30

*price indicative

RS Stock No.:
598-756
Mfr. Part No.:
ADM00706
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Analogue Function

Power Monitor

Kit Classification

Development Module

For Use With

AC/DC Power Supplies

Featured Device

ADM00706

Kit Name

MCP39F511N Power Monitor Demonstration Board

The Microchip MCP39F511N Power Monitor Demonstration Board is a fully functional dual channel single-phase power and energy monitoring system. The system calculates and displays active power, reactive power, RMS current, RMS voltage, active energy (both import and export), and four quadrant reactive energy), on 2 independent channels, simultaneously.

Programmable baud rate from 1200 to 115200 bps
Direct connect to 90V to 240VAC operation
15A maximum recommended load
