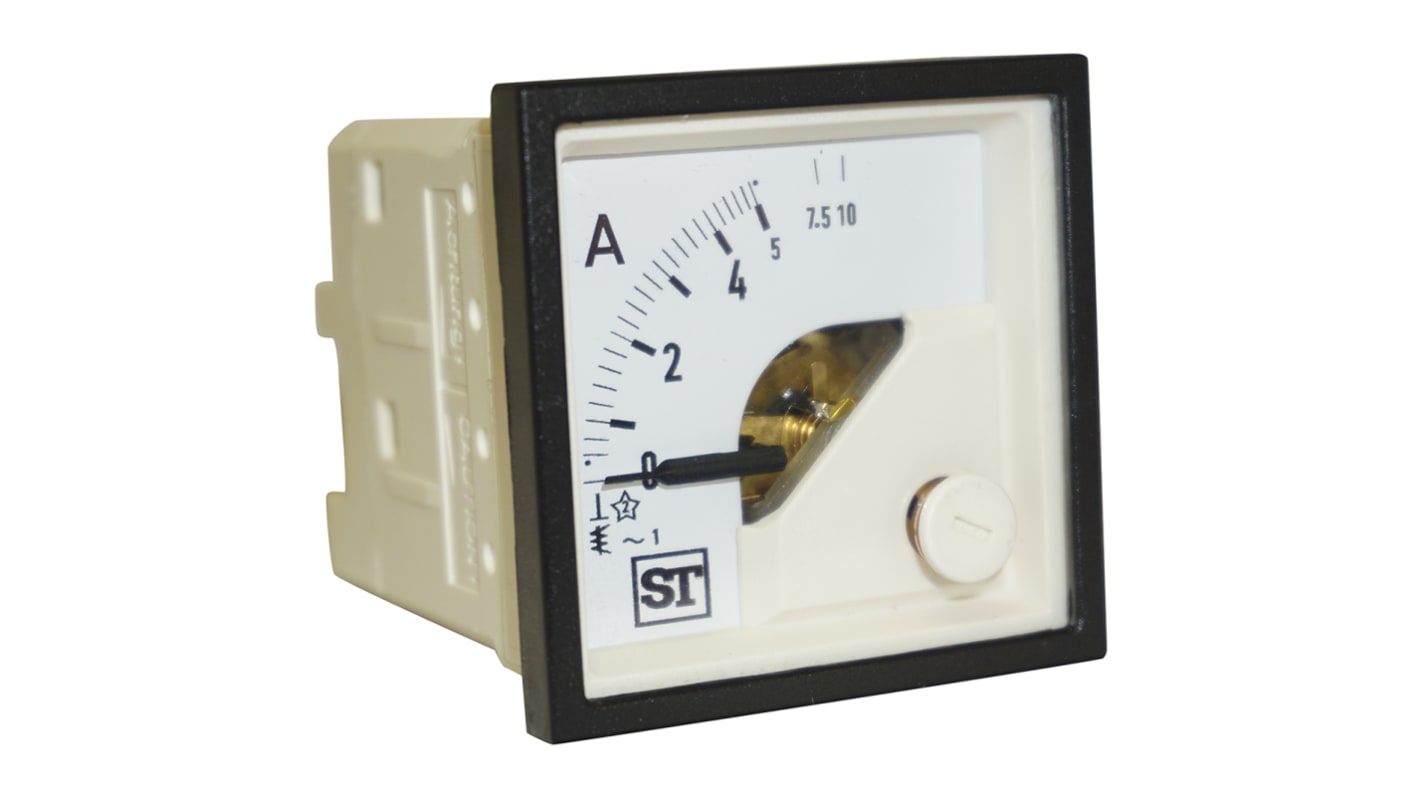

Sifam Tinsley Sigma Analogue Panel Ammeter 5A AC, 48mm x 48mm Moving Iron
- RS Stock No.:
- 886-1828
- Mfr. Part No.:
- EQ44-I1122N1CAW0ST
- Brand:
- Sifam Tinsley
Bulk discount available
Subtotal (1 unit)*
£12.54
(exc. VAT)
£15.05
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 79 unit(s) ready to ship
- Plus 302 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £12.54 |
5 - 9 | £12.03 |
10 + | £11.66 |
*price indicative
- RS Stock No.:
- 886-1828
- Mfr. Part No.:
- EQ44-I1122N1CAW0ST
- Brand:
- Sifam Tinsley
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Sifam Tinsley | |
Maximum Value | 5A | |
Current Type | AC | |
Moving Element | Moving Iron | |
Cutout Height | 48mm | |
Cutout Width | 48mm | |
Depth | 54mm | |
Minimum Temperature | -10°C | |
Maximum Temperature | +55°C | |
Measurement Range | 0 → 5A | |
Series | Sigma | |
Minimum Displayed Value | 0A | |
Approvals | 2004 / 108 / EC (EMC Directive), 2006 / 95 / EC (Low Voltage Directive) and Amendment 93 / 68 / EEC, CE, DIN 40050, DIN 43701, DIN 43718, DIN 43802, DIN 43807, DIN 46200, DIN 46282, DIN EN 60051, DIN IEC 61554, EC 51, EC 529, IEC 1010, IS:1248, IS:9249, U | |
Select all | ||
---|---|---|
Brand Sifam Tinsley | ||
Maximum Value 5A | ||
Current Type AC | ||
Moving Element Moving Iron | ||
Cutout Height 48mm | ||
Cutout Width 48mm | ||
Depth 54mm | ||
Minimum Temperature -10°C | ||
Maximum Temperature +55°C | ||
Measurement Range 0 → 5A | ||
Series Sigma | ||
Minimum Displayed Value 0A | ||
Approvals 2004 / 108 / EC (EMC Directive), 2006 / 95 / EC (Low Voltage Directive) and Amendment 93 / 68 / EEC, CE, DIN 40050, DIN 43701, DIN 43718, DIN 43802, DIN 43807, DIN 46200, DIN 46282, DIN EN 60051, DIN IEC 61554, EC 51, EC 529, IEC 1010, IS:1248, IS:9249, U | ||
Non Compliant
- COO (Country of Origin):
- IN
Sigma Series DE Panel Meter
These Sigma Series of DE moving iron panel meters are housed in moulded polycarbonate cases and are suitable for the measurement of AC currents for a frequency range of 15-400Hz and voltages in the frequency range of 15-100Hz.
Available in variety of sizes for both Ammeters & Voltmeters
Scale interchangeability
Near linear scale
Glass filled polycarbonate housing
Knife edge pointer
Easily replace able glass and bezel
Scale interchangeability
Near linear scale
Glass filled polycarbonate housing
Knife edge pointer
Easily replace able glass and bezel
Sifam Tinsley Moving Iron Panel Meters
