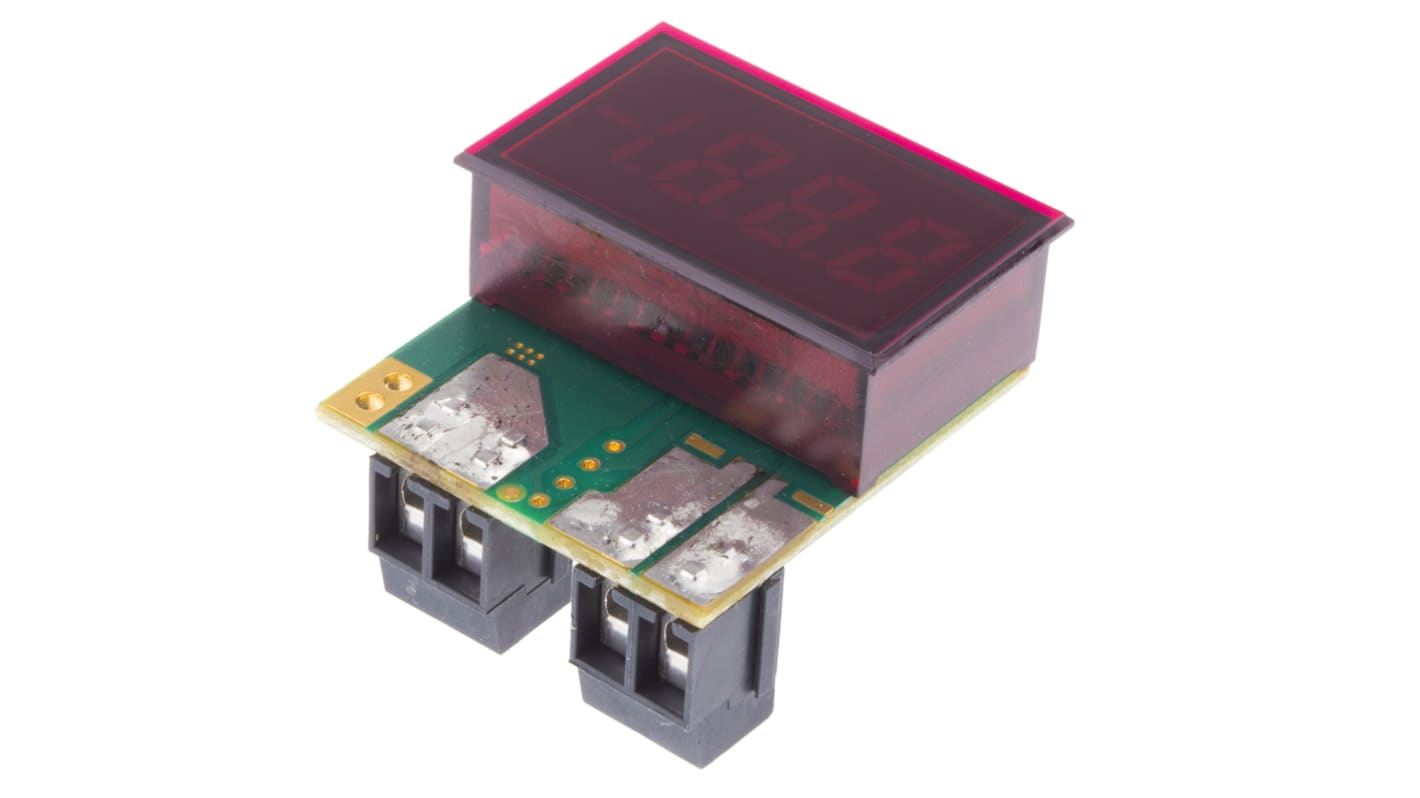

Murata Power Solutions Digital Ammeter DC, 21.29mm x 33.93mm, ±0.15 %

View all Ammeters
Bulk discount available

Subtotal (1 unit)*

£50.93

(exc. VAT)

£61.12

(inc. VAT)

Add to Basket
Select or type quantity
Being discontinued
  • Final 71 unit(s), ready to ship
Units
Per unit
1 - 4£50.93
5 +£48.90

*price indicative

RS Stock No.:
810-3309
Mfr. Part No.:
DCA-20PC-5-DC1-RL-C
Brand:
Murata Power Solutions
Find similar products by selecting one or more attributes.
Select all

Brand

Murata Power Solutions

Current Type

DC

Cutout Height

21.29mm

Cutout Width

33.93mm

Depth

26.4mm

Meter Accuracy

±0.15 %

Minimum Temperature

0°C

Maximum Temperature

+60°C

COO (Country of Origin):
CN

DCA-20PC - Subminiature DC Ammeters with LED Display and Built-In Shunts


The DCA-20PC Series are the first digital dc ammeters to include built-in shunts for measuring dc currents up to 20A. Six ranges provide for precision measurement of dc currents from 200uA to 20A. These ammeters are 100% self-contained; no calibration or user-supplied components are required. They even include terminal blocks for your external load circuit, a feature that enables simple 3-wire operation.

Large, easy-to-read, LED display with 9.4mm high digits
LED Colour is the “Low-Power Red” version
Built-in shunts for digitally measuring dc currents from 200μA to 20A
Functionally complete, no additional components required
Wide power supply inputs with a range from 5 to 40Vdc (non-isolated) or 8-36Vdc (isolated)
20mV internal shunt minimizes power loss
Includes load connections for easy 3 or 4-wire operation
High resolution; Factory calibrated to ±0.1% accuracy
Small package size: 35.1 x 22.4 x 26.4 mm
