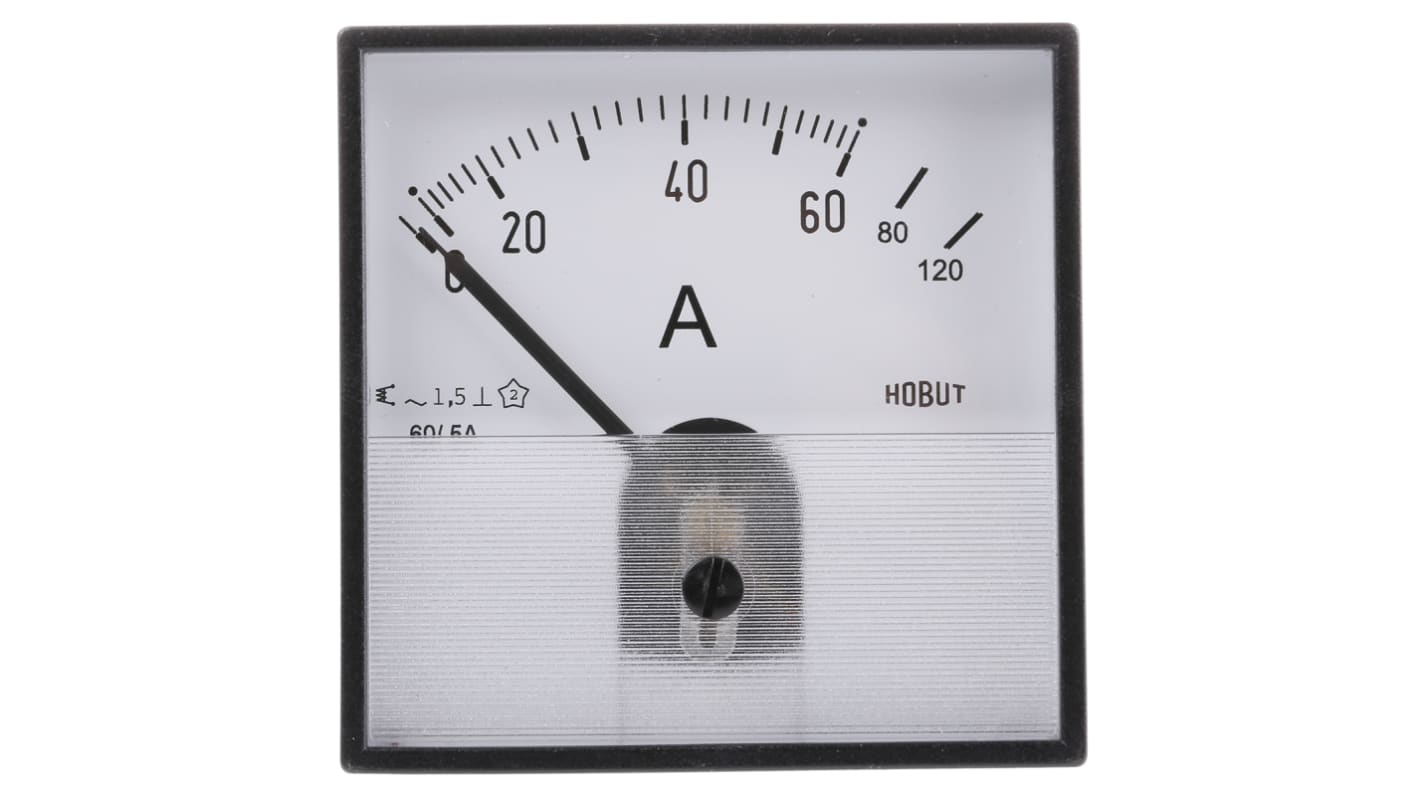

HOBUT Analogue Panel Ammeter 0/60/120A For 60/5A CT AC, 72mm x 72mm Moving Iron
- RS Stock No.:
- 287-2087
- Mfr. Part No.:
- PD72MIS5A2/2-001 0/60/120A
- Brand:
- HOBUT
19 In stock - FREE next working day delivery available
1 available from Europe for delivery within 1 working day(s).
Added
Price Each
£28.17
(exc. VAT)
£33.80
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £28.17 |
| 5 - 9 | £27.30 |
| 10 + | £26.70 |
- RS Stock No.:
- 287-2087
- Mfr. Part No.:
- PD72MIS5A2/2-001 0/60/120A
- Brand:
- HOBUT
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
AC Moving Iron Current and Voltage Meters
A series from 72 x 72 mm DIN sized panel meter with a horizontal scale, used widely in the panel building industry.
Panel Meter with integrated, horizontal 90° scale
Accuracy class 1.5 to BS89 IEC51
Scaled up to 40A direct connected
Flame retardant case to UL94V0
Protection Class IP52 (front of panel)
Fixing via single hole using ’U’ clamp (anti-rotation pin supplied), or 4-point M3
Note
Ammeter overload is twice current rating - shown within (brackets) in scale range .
Supplied with
mounting brackets
Specifications
Attribute | Value |
|---|---|
| Maximum Value | 0/60/120A For 60/5A CT |
| Current Type | AC |
| Moving Element | Moving Iron |
| Cutout Height | 72mm |
| Cutout Width | 72mm |
| Depth | 30.5mm |
| Meter Accuracy | Class 1.5 |
| Minimum Temperature | -25°C |
| Maximum Temperature | +40°C |
| Measurement Range | 0/60/120A For 60/5A CT |
- RS Stock No.:
- 287-2087
- Mfr. Part No.:
- PD72MIS5A2/2-001 0/60/120A
- Brand:
- HOBUT
