RS PRO RS PRO Analogue Panel Ammeter 100 A DC, 92 mm x 92 mm, 1 % Moving Coil

View all Ammeters
Bulk discount available

Subtotal (1 unit)*

£21.96

(exc. VAT)

£26.35

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 15 unit(s) shipping from 27 April 2026
  • Plus 5 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 4£21.96
5 - 9£20.87
10 +£19.78

*price indicative

RS Stock No.:
186-2501
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Product Type

Analogue Panel Ammeter

Current Type

DC

Moving Element

Moving Coil

Cutout Height

92mm

Cutout Width

92mm

Depth

54mm

Meter Accuracy

1 %

Maximum Operating Temperature

65°C

Maximum Ampere Value

100 A

Minimum Operating Temperature

-10°C

Standards/Approvals

UL 94 V-0, 2014/30/EC, ISO 20653:2006-08, VDE / VDI 3540, DIN 43701, DIN 43807, IEC 61010, EN 61010, 93/68/EEC, DIN 46200/46282, IEC51/DINEN60051, DIN 43802, CE, 2014/35/EC, DIN IEC 61554, VDE 0100-410:2018-10, DIN 43718, IEC 529

Maximum Measurement

1000 V ac, 600 V dc

Series

RS PRO

RoHS Status: Exempt

COO (Country of Origin):
IN

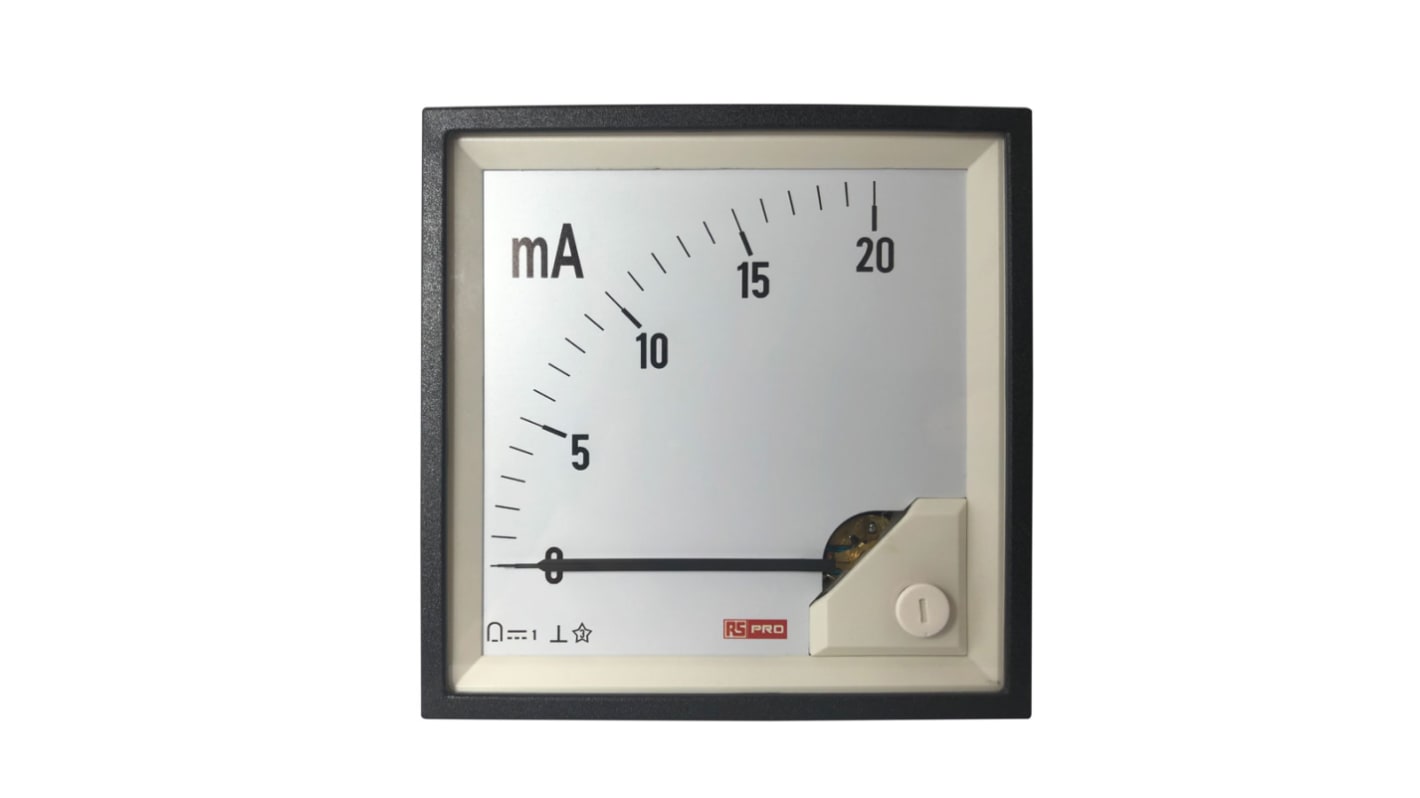

RS PRO DC Analogue Panel Ammeter


The RS PRO 92mm x 92mm cut-out DC analogue panel ammeter has a measurement range from 0mA to 20mA input. The DIN style panel meter comprises permanent magnet moving coil movement and indicates an average value. The movement consists of a magnet, an aluminium coil suspended on pivots, a hairspring and a jewel mechanism. The scales are linear and calibrated down to zero. High currents are measured with separate shunts attached to the rear side of the meter. The meter is housed in a moulded polycarbonate case.

Features and Benefits


• Operating temperature ranges between -10°C and 65°C

• Accuracy: 1%

• Pointer: Knife-edge type

• Pointer deflection: From 0° to 90°

• Nominal range of use: From 15μA to 100A

• Shock resistance: 15g for pulse duration 11 milliseconds

• Moulded square case suitable for mounting control/switchgear panels in machinery consoles

• Overload: 1.2 times nominal current (continuous)

• Relative humidity: Less than 75% annual average (noncondensing)

Certifications


• UL 94 V-0 approved

• 2014/30/EC (EMC directive)

• 2014/35/EC (low voltage directive)

• CE certified

• IP52 rated

• EN 61010

• VDE 0100-410: 2018-10 approved

• IEC 529

• IEC 61010

• ISO 20653: 2006-08
