RS PRO Analogue Panel Ammeter DC, 92mm x 92mm, 1 % Moving Coil
- RS Stock No.:
- 186-2509
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£21.48
(exc. VAT)
£25.78
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £21.48 |
5 - 9 | £20.40 |
10 + | £19.33 |
*price indicative
- RS Stock No.:
- 186-2509
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Current Type | DC | |
Moving Element | Moving Coil | |
Cutout Height | 92mm | |
Cutout Width | 92mm | |
Depth | 54 (<4 A) mm, 67 (5 → 60 A) mm, 67 (60 → 100 A) mm | |
Meter Accuracy | 1 % | |
Minimum Temperature | -10°C | |
Maximum Temperature | +65°C | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Current Type DC | ||
Moving Element Moving Coil | ||
Cutout Height 92mm | ||
Cutout Width 92mm | ||
Depth 54 (<4 A) mm, 67 (5 → 60 A) mm, 67 (60 → 100 A) mm | ||
Meter Accuracy 1 % | ||
Minimum Temperature -10°C | ||
Maximum Temperature +65°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IN

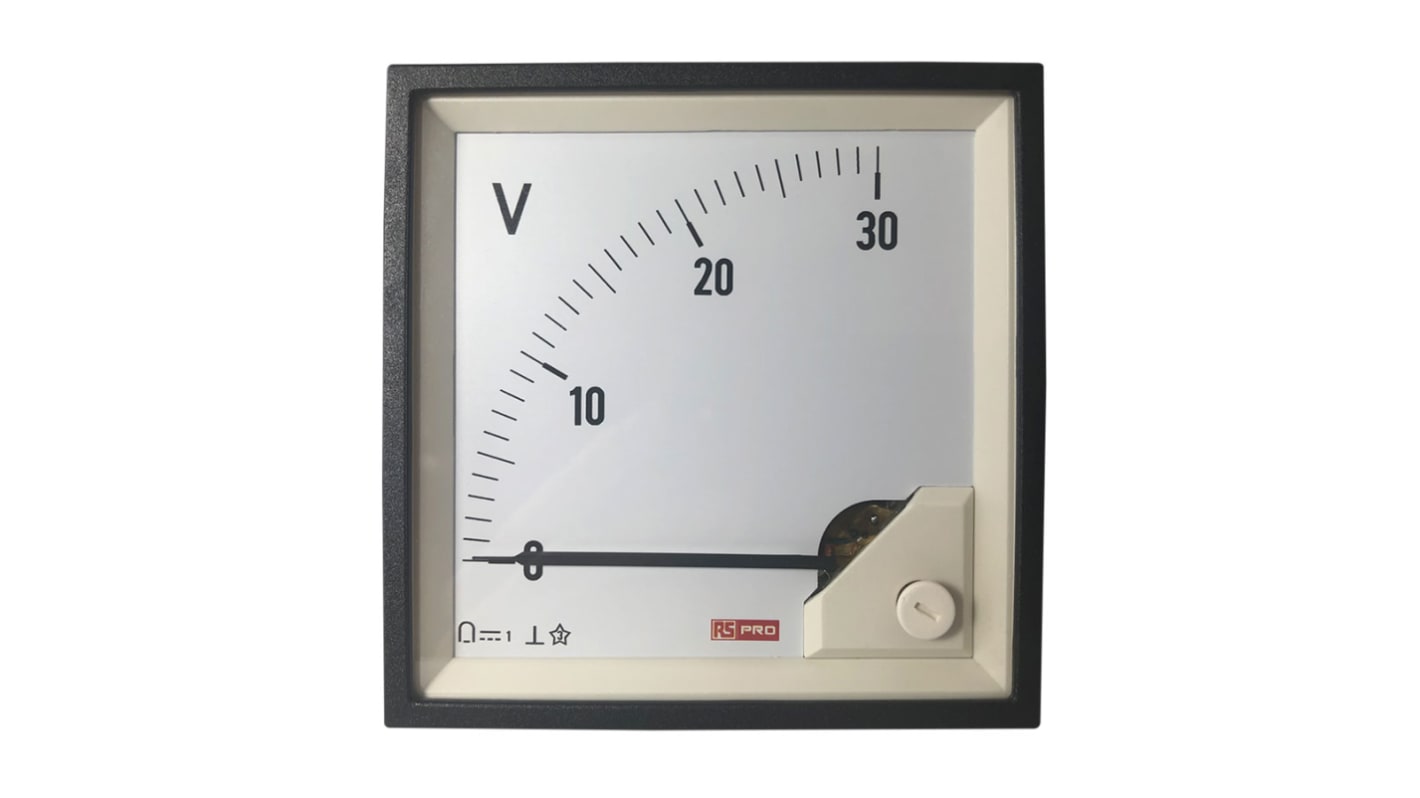

RS PRO DC Analogue Panel Voltmeter
The RS PRO 92mm x 92mm cut-out DC analogue panel voltmeter has a measurement range from 0VDC to 30VDC input. The DIN 96 style panel meter comprise permanent magnet moving coil movement and indicates average value. The movement consists of a magnet, an aluminium coil suspended on pivots, a hairspring and a jewel mechanism. The scales are linear and calibrated down to zero. High currents are measured with separate shunts attached to the rear side of the meter. The meter is housed in a moulded polycarbonate case.
Features and Benefits
• Operating temperature ranges between -10°C and 65°C
• Accuracy: 1%
• Pointer: Knife-edge type
• Pointer deflection: From 0° to 90°
• Nominal range of use: 15mV to 600VDC
• Shock resistance: 15g for pulse duration 11 milliseconds
• Moulded square case suitable for mounting control/switchgear panels in machinery consoles
• Overload: 1.2 times nominal voltage (continuous)
• Relative humidity: Less than 75% annual average (noncondensing)
• Accuracy: 1%
• Pointer: Knife-edge type
• Pointer deflection: From 0° to 90°
• Nominal range of use: 15mV to 600VDC
• Shock resistance: 15g for pulse duration 11 milliseconds
• Moulded square case suitable for mounting control/switchgear panels in machinery consoles
• Overload: 1.2 times nominal voltage (continuous)
• Relative humidity: Less than 75% annual average (noncondensing)
Certifications
• UL 94 V-0 approved
• 2014/30/EC (EMC directive)
• 2014/35/EC (low voltage directive)
• CE certified
• IP52 rated
• EN 61010
• VDE 0100-410: 2018-10 approved
• IEC 529
• IEC 61010
• ISO 20653: 2006-08
• 2014/30/EC (EMC directive)
• 2014/35/EC (low voltage directive)
• CE certified
• IP52 rated
• EN 61010
• VDE 0100-410: 2018-10 approved
• IEC 529
• IEC 61010
• ISO 20653: 2006-08
