RS PRO Analogue Panel Ammeter 20 (Input)mA DC, 68mm x 68mm, 1 % Moving Coil
- RS Stock No.:
- 186-2489
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£22.58
(exc. VAT)
£27.10
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 10 unit(s) shipping from 03 October 2025
- Plus 10 unit(s) shipping from 07 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £22.58 |
| 5 - 9 | £21.44 |
| 10 + | £20.32 |
*price indicative
- RS Stock No.:
- 186-2489
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Maximum Value | 20 (Input)mA | |
| Current Type | DC | |
| Moving Element | Moving Coil | |
| Cutout Height | 68mm | |
| Cutout Width | 68mm | |
| Depth | 54 (<4 A)mm | |
| Meter Accuracy | 1 % | |
| Minimum Temperature | -10°C | |
| Maximum Temperature | +65°C | |
| Measurement Range | 4 → 20 (Input)mA | |
| Minimum Displayed Value | 4 (Input)mA | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Maximum Value 20 (Input)mA | ||
Current Type DC | ||
Moving Element Moving Coil | ||
Cutout Height 68mm | ||
Cutout Width 68mm | ||
Depth 54 (<4 A)mm | ||
Meter Accuracy 1 % | ||
Minimum Temperature -10°C | ||
Maximum Temperature +65°C | ||
Measurement Range 4 → 20 (Input)mA | ||
Minimum Displayed Value 4 (Input)mA | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IN

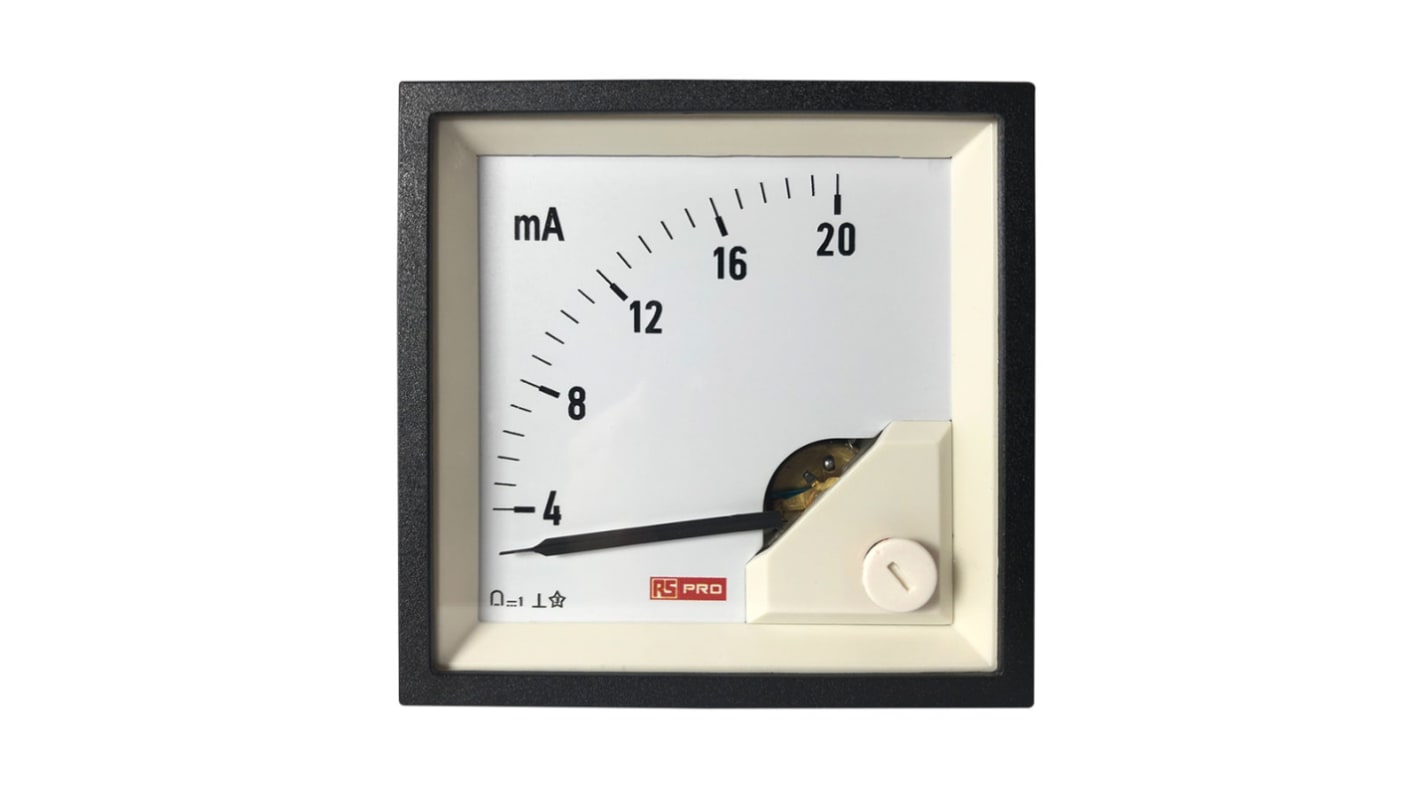

RS PRO DC Analogue Panel Ammeter
The RS PRO 68mm x 68mm cut-out DC analogue panel ammeter has a measurement range of 4mA to 20mA input. The DIN style panel meter comprises permanent magnet moving coil movements and it indicates an average value. The moving coil movement consists of a magnet, an aluminium coil suspended on pivots, a hairspring, and a jewel mechanism. The scales are linear and calibrated down to zero. High currents are measured with separate shunts attached on the rear side of the meter. The meter is housed in a moulded polycarbonate case.
Features and Benefits
• Operating temperature ranges between -10°C and 65°C
• Accuracy: 1%
• Pointer: Knife-edge type
• Pointer deflection: 0° to 90°
• Nominal range of use: 15uA to 100A
• Shock resistance: 15g for pulse duration 11 milliseconds
• Moulded square case suitable for mounting control/switchgear panels in machinery consoles
• Overload: 1.2 times nominal current (continuous)
• Relative humidity: Less than 75% annual average (noncondensing)
• Accuracy: 1%
• Pointer: Knife-edge type
• Pointer deflection: 0° to 90°
• Nominal range of use: 15uA to 100A
• Shock resistance: 15g for pulse duration 11 milliseconds
• Moulded square case suitable for mounting control/switchgear panels in machinery consoles
• Overload: 1.2 times nominal current (continuous)
• Relative humidity: Less than 75% annual average (noncondensing)
Certifications
• UL 94 V-0 approved
• 2014/30/EC (EMC directive)
• 2014/35/EC (low voltage directive)
• CE certified
• IP52 rated
• EN 61010
• VDE 0100-410: 2018-10 approved
• IEC 529
• IEC 61010
• ISO 20653: 2006-08
• 2014/30/EC (EMC directive)
• 2014/35/EC (low voltage directive)
• CE certified
• IP52 rated
• EN 61010
• VDE 0100-410: 2018-10 approved
• IEC 529
• IEC 61010
• ISO 20653: 2006-08
