RS PRO RS PRO Analogue Panel Ammeter 100 A AC, 45 mm x 45 mm, 1 % Moving Iron
- RS Stock No.:
- 186-2412
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£14.46
(exc. VAT)
£17.35
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 13 unit(s) ready to ship
- Plus 8 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £14.46 |
| 5 - 9 | £13.76 |
| 10 + | £13.03 |
*price indicative
- RS Stock No.:
- 186-2412
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Analogue Panel Ammeter | |
| Current Type | AC | |
| Moving Element | Moving Iron | |
| Cutout Height | 45mm | |
| Cutout Width | 45mm | |
| Depth | 54mm | |
| Meter Accuracy | 1 % | |
| Maximum Operating Temperature | 65°C | |
| Maximum Ampere Value | 100 A | |
| Minimum Operating Temperature | -10°C | |
| Standards/Approvals | 2014/30/EC (EMC )), DIN 43807, IEC 61010, ISO 20653:2006-08, 93/68/EEC (CE )), UL 94 V-0, DIN 43802, 2014/35/EC (low voltage )), DIN 43718, EN 61010, IEC51/DINEN60051, VDE 0100-410:2018-10, IEC 529, DIN 43701, DIN 46200/46282, VDE / VDI 3540, DIN IEC 61554 | |
| Series | RS PRO | |
| Maximum Measurement | 600 V dc, 1000 V ac | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Analogue Panel Ammeter | ||
Current Type AC | ||
Moving Element Moving Iron | ||
Cutout Height 45mm | ||
Cutout Width 45mm | ||
Depth 54mm | ||
Meter Accuracy 1 % | ||
Maximum Operating Temperature 65°C | ||
Maximum Ampere Value 100 A | ||
Minimum Operating Temperature -10°C | ||
Standards/Approvals 2014/30/EC (EMC )), DIN 43807, IEC 61010, ISO 20653:2006-08, 93/68/EEC (CE )), UL 94 V-0, DIN 43802, 2014/35/EC (low voltage )), DIN 43718, EN 61010, IEC51/DINEN60051, VDE 0100-410:2018-10, IEC 529, DIN 43701, DIN 46200/46282, VDE / VDI 3540, DIN IEC 61554 | ||
Series RS PRO | ||
Maximum Measurement 600 V dc, 1000 V ac | ||
RoHS Status: Exempt

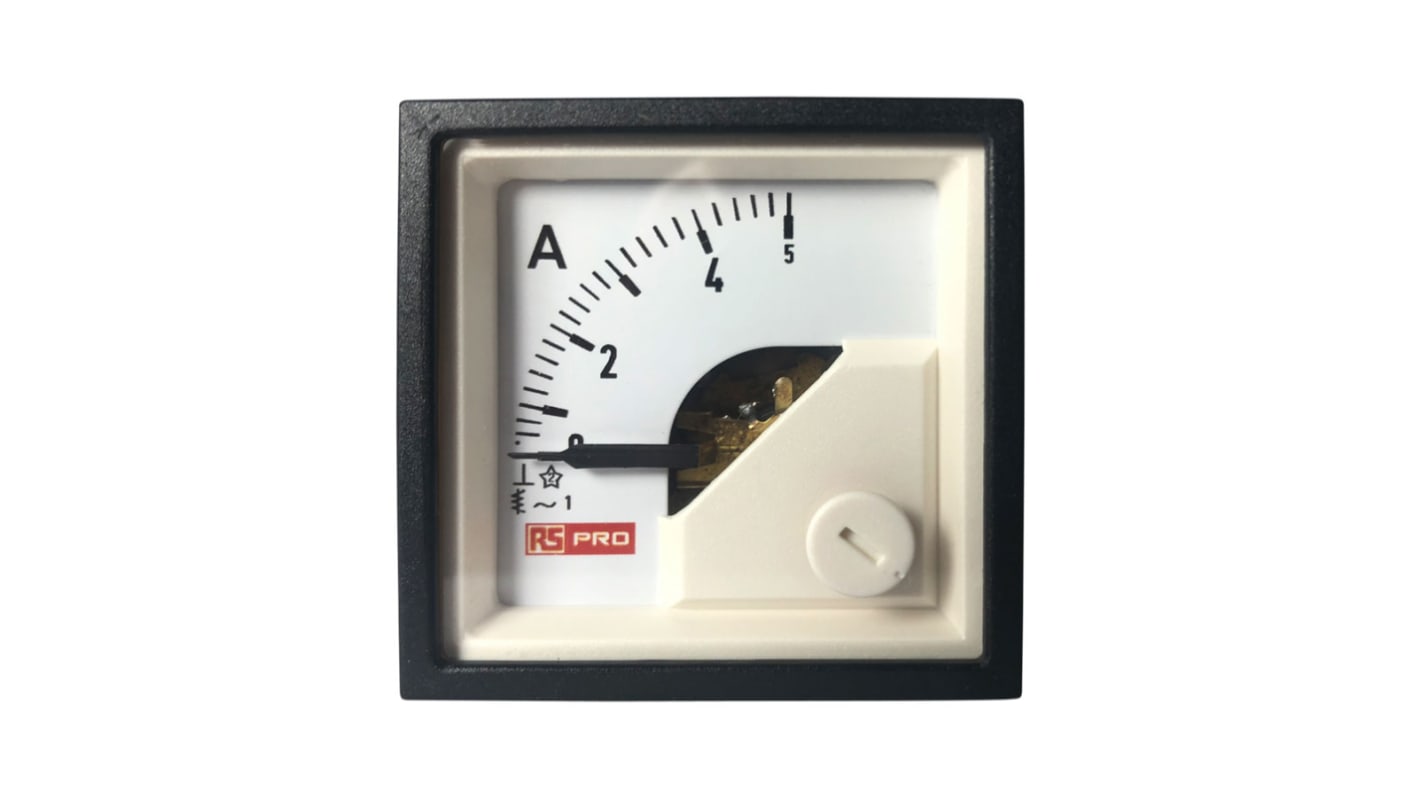

RS PRO AC Analogue Panel Ammeter
The RS PRO 45mm x 45mm cut-out AC analogue panel ammeter has a measurement range of 0A to 5A input and 0A to 5A scale. The DIN style panel meter comprises a moving iron movement. It indicates true RMS value and is substantially independent of system waveform. The scales are calibrated down to 10% and can have overload scales of X2, X3, X5, or X6 to measure motor inrush current. The meter is housed in a moulded polycarbonate case and is suitable for measurement of AC currents for the frequency range of 15Hz to 400Hz.
Features and Benefits
• Operating temperature ranges between -10°C and 65°C
• Accuracy: 1%
• Pointer: Knife-edge type
• Pointer deflection: 0° to 90°
• AC Ammeter nominal range: 100mA to 100A direct connection
• Shock resistance: 15g for pulse duration of 11 milliseconds
• Moulded square case suitable for mounting control/switchgear panels in machinery consoles
• Overload: 2 times nominal current (continuous)
• Relative humidity: Less than 75% annual average (noncondensing)
Certifications
• UL 94 V-0 approved
• 2014/30/EC (EMC directive)
• 2014/35/EC (low voltage directive)
• CE certified
• IP52 rated
• EN 61010
• VDE 0100-410: 2018-10 approved
• IEC 529
• IEC 61010
• ISO 20653: 2006-08
