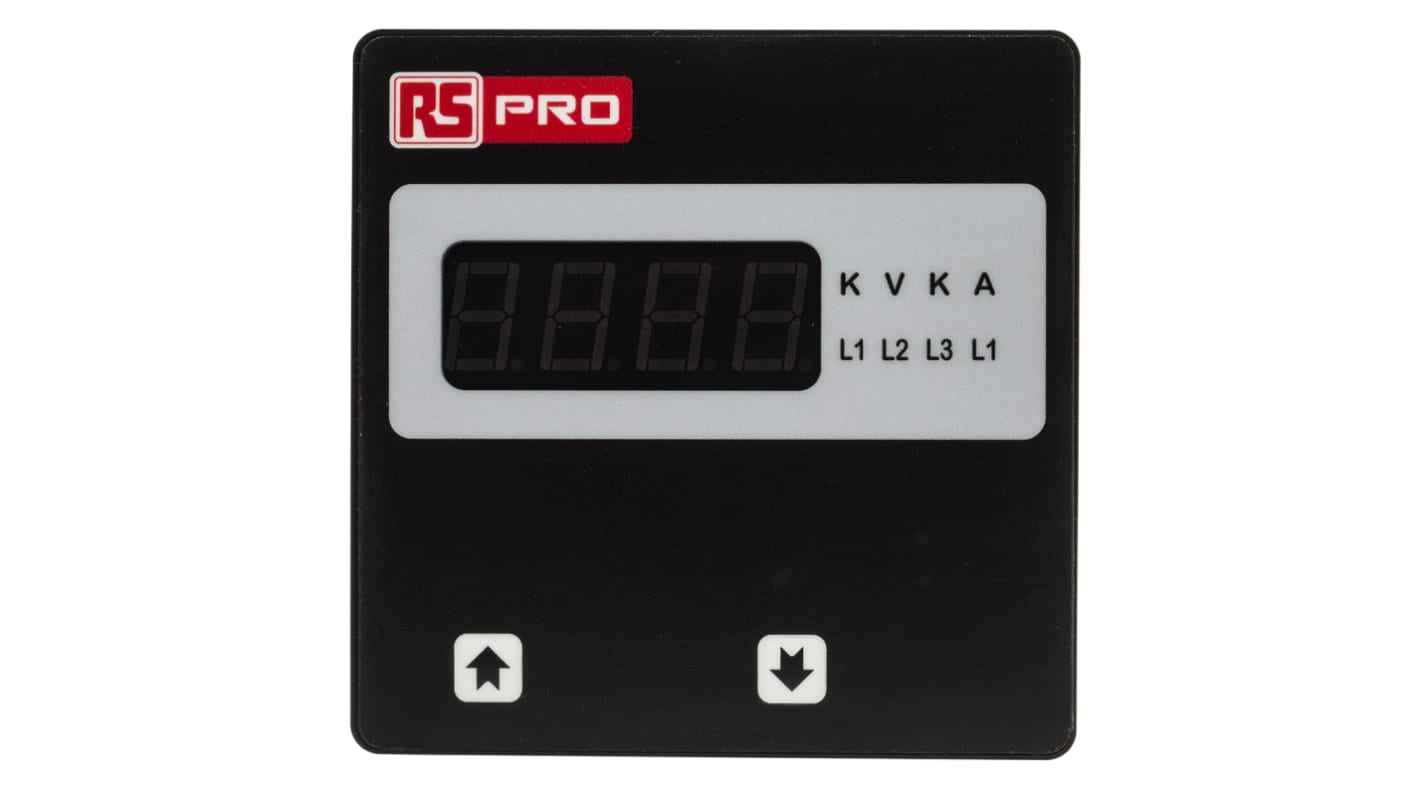

RS PRO Digital Ammeter AC, 92mm x 92mm, ±0.5% + 1 Digit

View all Ammeters

Subtotal (1 unit)*

£50.40

(exc. VAT)

£60.48

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 14 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£50.40

*price indicative

RS Stock No.:
136-5391
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Current Type

AC

Cutout Height

92mm

Cutout Width

92mm

Depth

55mm

Meter Accuracy

±0.5% + 1 Digit

Minimum Temperature

0°C

Maximum Temperature

+50°C

Measurement Range

1 → 5 (Input)A

Approvals

IEC 60529, IEC 61010-1-2001, IEC 61326-1:2005

Series

BT144

COO (Country of Origin):
IN

RS Pro Digital Ammeter- 3 Phase


RS Pro digital ammeters designed for use in industrial applications which require precise and onsite adjustment of the display range. The ammeters measure important electrical parameters in 3 phase 4-wire, 3 phase three wire and single phase network. RS Pro meters can be used in industrial automation and for laboratory uses.

Features and Benefits


4-digits ultra-bright LED display (up to 9999)
Fast and easy installation (clip-in mounting for 96 x 96 model only)
True RMS measurement
On-site programmable CT/PT ratios
User selectable CT secondary 1A/5A
User selectable PT secondary from 100 VLL to 500 VLL
User selectable 3 ph 3 wire/ 3 ph 4 wire/ single phase network
Wide auxiliary power supply which can accept any input between 40 V-300 V ac/dc
Storage of MIN/MAX values
