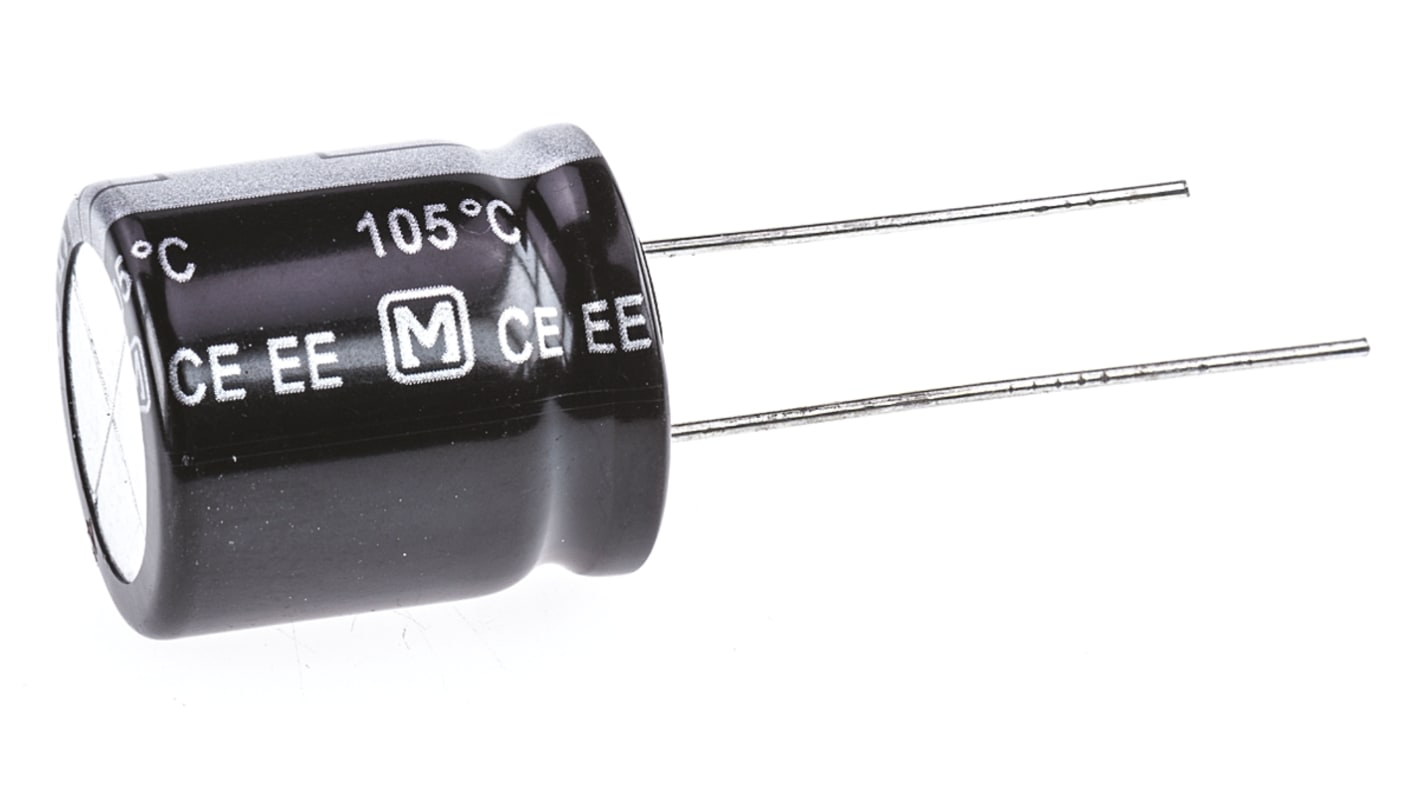

Panasonic 82μF Aluminium Electrolytic Capacitor 250V dc, Radial, Through Hole - EEUEE2E820S

RS Stock No.:: 921-3224
Mfr. Part No.:: EEUEE2E820S
Brand:: Panasonic

Panasonic 82μF Aluminium Electrolytic Capacitor 250V dc, Radial, Through Hole - EEUEE2E820S

60 In stock - FREE next working day delivery available

Price Each (In a Bag of 50)

£1.24

(exc. VAT)

£1.49

(inc. VAT)

Units	Per unit	Per Bag*
50 - 50	£1.24	£62.00
100 - 200	£1.054	£52.70
250 - 450	£0.973	£48.65
500 - 1950	£0.947	£47.35
2000 +	£0.923	£46.15

*price indicative

RS Stock No.:: 921-3224
Mfr. Part No.:: EEUEE2E820S
Brand:: Panasonic

Technical Reference

Legislation and Compliance

COO (Country of Origin):: MY

Product Details

EE Series

Panasonic EE Series Type A electrolytic capacitors feature endurance between 8000 and 10000 hours(dependent on case size). These radial capacitors offer 40% higher ripple current at high frequency than the Panasonic ED series.

High ripple current
Excellent endurance
Low impedance

Applications

Panasonic EE Series Type A electrolytic capacitors are suitable for use in industrial instruments due to their high reliability.

Specifications

Attribute	Value
Capacitance	82µF
Voltage	250V dc
Mounting Type	Radial, Through Hole
Technology	Aluminium Electrolytic
Dimensions	18 (Dia.) x 20mm
Height	20mm
Minimum Operating Temperature	-25°C
Diameter	18mm
Maximum Operating Temperature	+105°C
Lead Pitch	7.5mm
Lifetime	10000h
Series	EE RADIAL
Tolerance	±20%
Ripple Current	1.68A
Polarised	Polar
