Cornell-Dubilier 6800μF Aluminium Capacitor 63V dc - SLPX682M063E7P3

View all Aluminium Capacitors
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
Nichicon 6800μF Aluminium Electrolytic Capacitor 63V dc, Snap-In - LLS1J682MELB
RS Stock No.
846-7120

Each

£3.98

(exc. VAT)

£4.78

(inc. VAT)

RS Stock No.:
871-2714
Mfr. Part No.:
SLPX682M063E7P3
Brand:
Cornell-Dubilier
Find similar products by selecting one or more attributes.
Select all

Brand

Cornell-Dubilier

Capacitance

6800µF

Voltage

63V dc

Dimensions

30 x 40mm

Length

40mm

Minimum Operating Temperature

-40°C

Diameter

30mm

Maximum Operating Temperature

+85°C

Lead Pitch

10mm

Lifetime

1000 (Shelf) h, 3000 (Endurance) h

Tolerance

±20%

Equivalent Series Resistance

44 mΩ @ 20 kHz, 59 mΩ @ 120 Hz

Ripple Current

4.55 Arms @ 120 Hz, 5.69 Arms @ 20 kHz

Series

SLPX

COO (Country of Origin):
CN

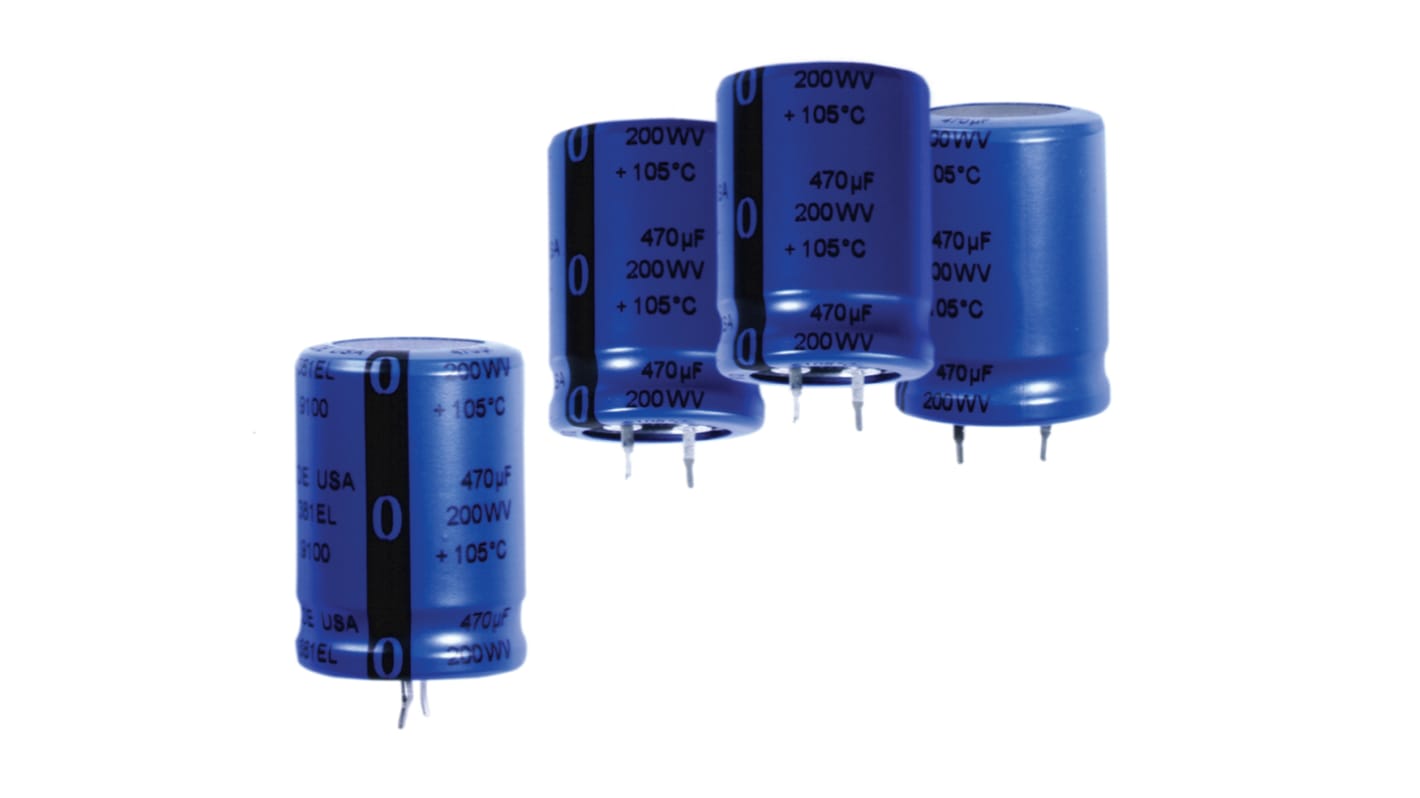

Cornell-Dubilier SLPX Series


Cornell-Dubilier SLPX series snap-In aluminium electrolytic capacitors are general purpose small cased capacitors that offer high ripple current and wide temperature range. The SLPX series is designed for DC filtering and power supply applications where long life and high ripple capability are needed.

Features and Benefits:
3000 h ripple load life at rated voltage
Small case size with high capacitance
Suitable for switching power supplies
10 mm lead spacing
High ripple current
Cost effective
22 mm to 35 mm diameter
