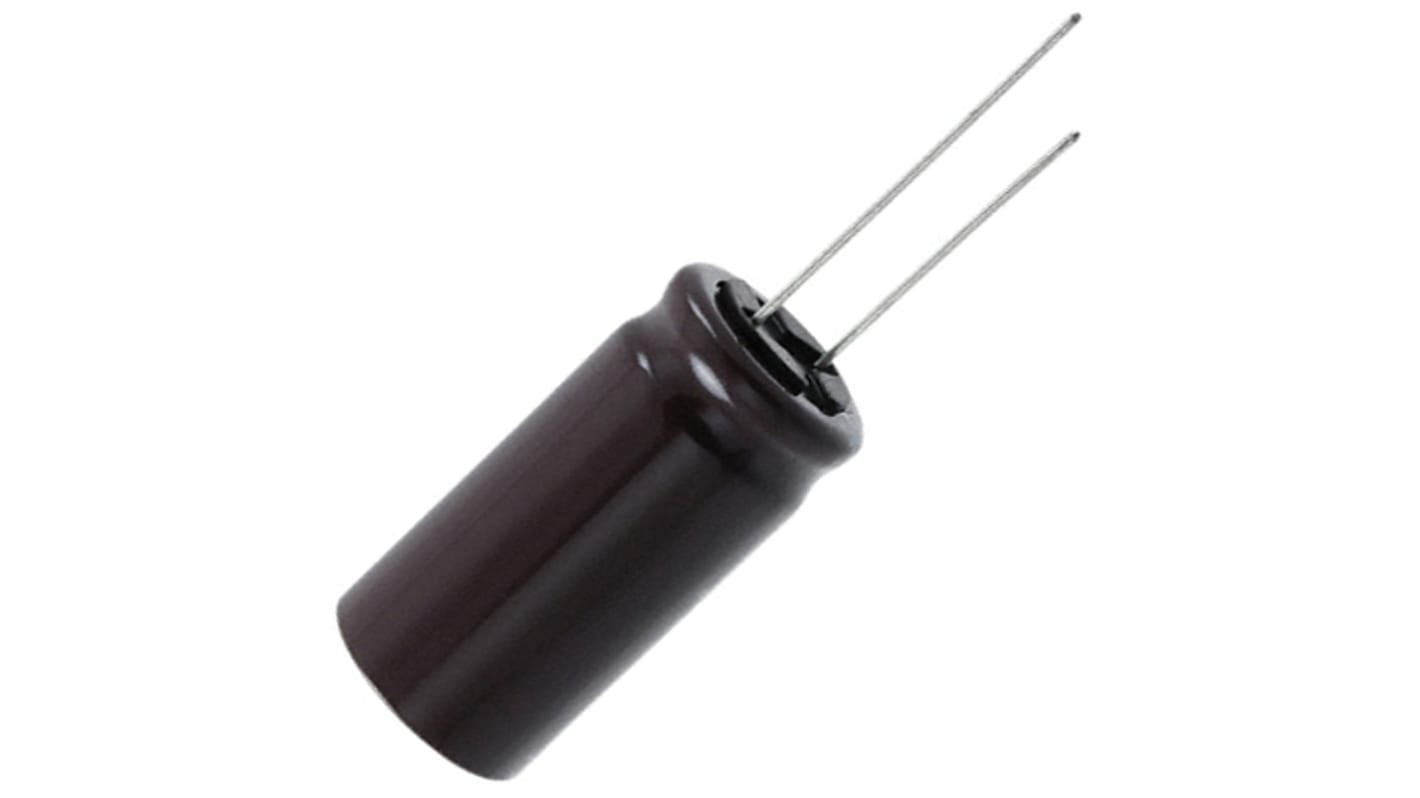

Nichicon 150μF Aluminium Electrolytic Capacitor 420V dc, Radial, Through Hole - UCPW6151MHD

View all Aluminium Capacitors
Bulk discount available

Subtotal (1 unit)*

£3.98

(exc. VAT)

£4.78

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 92 unit(s) ready to ship
  • Plus 17 unit(s) ready to ship from another location
  • Plus 250 unit(s) shipping from 15 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 24£3.98
25 - 49£3.34
50 - 99£3.16
100 +£2.71

*price indicative

RS Stock No.:
851-4197
Mfr. Part No.:
UCPW6151MHD
Brand:
Nichicon
Find similar products by selecting one or more attributes.
Select all

Brand

Nichicon

Capacitance

150µF

Voltage

420V dc

Mounting Type

Radial, Through Hole

Technology

Aluminium Electrolytic

Dimensions

18 x 35.5mm

Height

35.5mm

Minimum Operating Temperature

-25°C

Diameter

18mm

Maximum Operating Temperature

+105°C

Lead Pitch

7.5mm

Lifetime

10000h

Ripple Current

920mArms

Leakage Current

2620 μA

Tolerance

±20%

Series

CP

Nichicon CP Series


Nichicon CP Series Aluminium Electrolytic Capacitors are high reliability, miniature size products that have a 10000-hour load life. The CP series features a wide temperature range, a wide rated voltage range, and high ripple current.

Features & Benefits:


High reliability
High ripple current
Long life up to 10,000 hours
