Panasonic 33μF Aluminium Electrolytic Capacitor 25V dc, Surface Mount - EEEFK1E330AP
- RS Stock No.:
- 747-8961
- Mfr. Part No.:
- EEEFK1E330AP
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 reel of 1000 units)*
£130.00
(exc. VAT)
£160.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1000 - 1000 | £0.13 | £130.00 |
| 2000 - 4000 | £0.127 | £127.00 |
| 5000 - 9000 | £0.123 | £123.00 |
| 10000 + | £0.12 | £120.00 |
*price indicative
- RS Stock No.:
- 747-8961
- Mfr. Part No.:
- EEEFK1E330AP
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Capacitance | 33µF | |
| Voltage | 25V dc | |
| Mounting Type | Surface Mount | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 6.3 (Dia.) x 5.8mm | |
| Height | 5.8mm | |
| Minimum Operating Temperature | -55°C | |
| Diameter | 6.3mm | |
| Maximum Operating Temperature | +105°C | |
| Lifetime | 2000h | |
| Series | FK SMD | |
| Tolerance | ±20% | |
| Ripple Current | 240mA | |
| Automotive Standard | AEC-Q200 | |
| Leakage Current | 3 μA | |
| Polarised | Polar | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Capacitance 33µF | ||
Voltage 25V dc | ||
Mounting Type Surface Mount | ||
Technology Aluminium Electrolytic | ||
Dimensions 6.3 (Dia.) x 5.8mm | ||
Height 5.8mm | ||
Minimum Operating Temperature -55°C | ||
Diameter 6.3mm | ||
Maximum Operating Temperature +105°C | ||
Lifetime 2000h | ||
Series FK SMD | ||
Tolerance ±20% | ||
Ripple Current 240mA | ||
Automotive Standard AEC-Q200 | ||
Leakage Current 3 μA | ||
Polarised Polar | ||
- COO (Country of Origin):
- MY

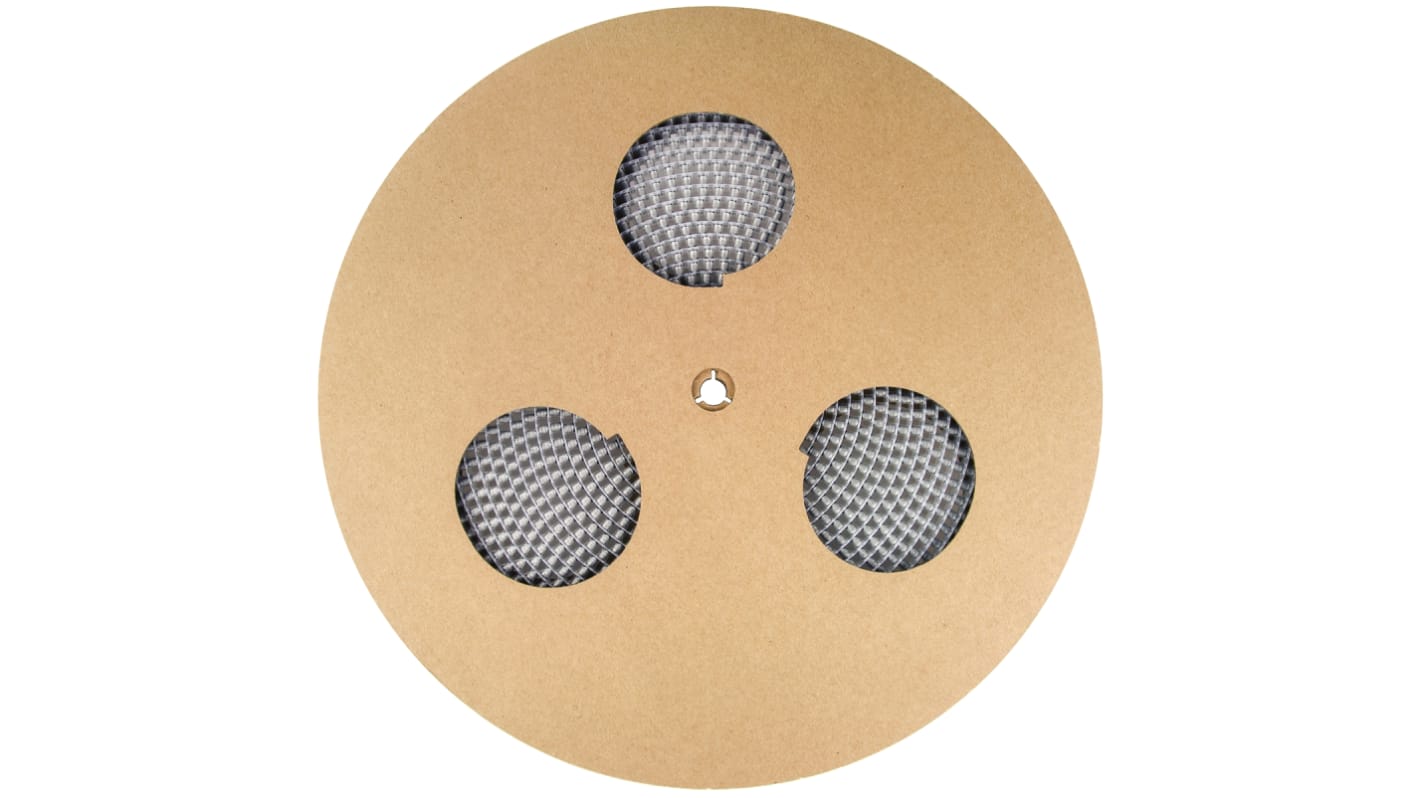

FK Series reels
Offered in a full reel, the FK series of aluminium electrolytic capacitors from Panasonic are a miniaturised version of the FC series, featuring impedance values 40-60% less than the FC series. These electrolytic capacitors have a long life of up to 5000 hours and are AEC-Q200 qualified, making them suitable for automotive applications. Part numbers with an A* suffix are able to withstand high reflow temperatures for extended periods.
