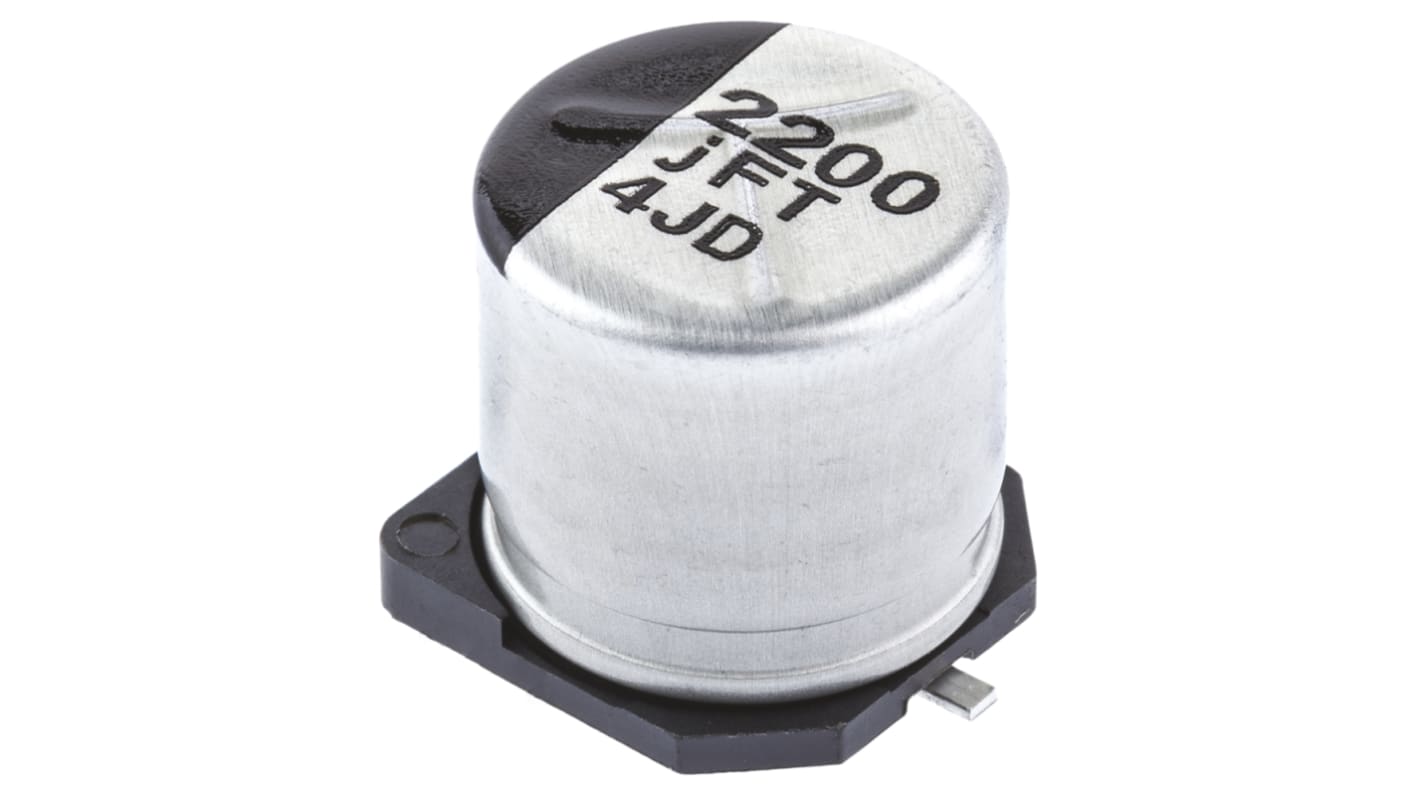

Panasonic 2200μF Aluminium Electrolytic Capacitor 6.3V dc, Surface Mount - EEEFT0J222AP
- RS Stock No.:
- 747-2468
- Mfr. Part No.:
- EEEFT0J222AP
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 pack of 5 units)*
£4.12
(exc. VAT)
£4.945
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 15 unit(s) ready to ship
- Plus 8,570 unit(s) shipping from 09 September 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | £0.824 | £4.12 |
| 25 - 120 | £0.65 | £3.25 |
| 125 - 245 | £0.488 | £2.44 |
| 250 + | £0.464 | £2.32 |
*price indicative
- RS Stock No.:
- 747-2468
- Mfr. Part No.:
- EEEFT0J222AP
- Brand:
- Panasonic
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Capacitance | 2200µF | |
| Voltage | 6.3V dc | |
| Mounting Type | Surface Mount | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 10 (Dia.) x 10.2mm | |
| Height | 10.2mm | |
| Minimum Operating Temperature | -55°C | |
| Diameter | 10mm | |
| Maximum Operating Temperature | +105°C | |
| Lifetime | 2000h | |
| Lead Pitch | 4.6mm | |
| Equivalent Series Resistance | 60mΩ | |
| Series | FT SMD | |
| Tolerance | ±20% | |
| Leakage Current | 138.6 μA | |
| Ripple Current | 1.19A | |
| Automotive Standard | AEC-Q200 | |
| Polarised | Polar | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Capacitance 2200µF | ||
Voltage 6.3V dc | ||
Mounting Type Surface Mount | ||
Technology Aluminium Electrolytic | ||
Dimensions 10 (Dia.) x 10.2mm | ||
Height 10.2mm | ||
Minimum Operating Temperature -55°C | ||
Diameter 10mm | ||
Maximum Operating Temperature +105°C | ||
Lifetime 2000h | ||
Lead Pitch 4.6mm | ||
Equivalent Series Resistance 60mΩ | ||
Series FT SMD | ||
Tolerance ±20% | ||
Leakage Current 138.6 μA | ||
Ripple Current 1.19A | ||
Automotive Standard AEC-Q200 | ||
Polarised Polar | ||
