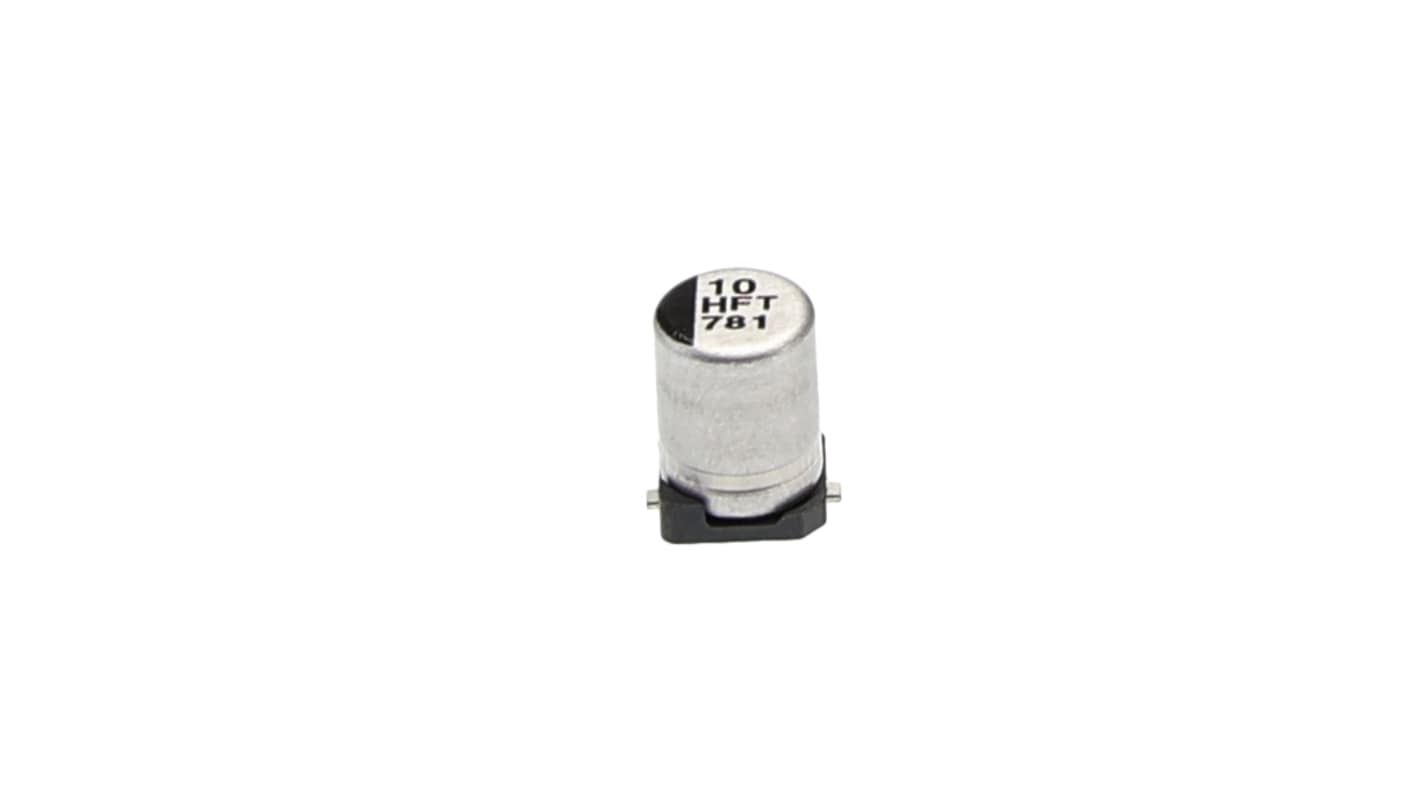

Panasonic 10 μF Aluminium Electrolytic Capacitor 50V dc, Surface Mount Solder - EEEFTH100UAR 2000

View all Aluminium Capacitors
Bulk discount available

Subtotal (1 pack of 10 units)*

£1.78

(exc. VAT)

£2.14

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later

Units
Per unit
Per Pack*
10 - 90£0.178£1.78
100 - 490£0.097£0.97
500 - 990£0.088£0.88
1000 - 1990£0.085£0.85
2000 +£0.084£0.84

*price indicative

Packaging Options:
RS Stock No.:
729-6283
Mfr. Part No.:
EEEFTH100UAR
Brand:
Panasonic
Find similar products by selecting one or more attributes.
Select all

Brand

Panasonic

Capacitance

10μF

Product Type

Aluminium Electrolytic Capacitor

Voltage

50V dc

Mount Type

Surface Mount

Packaging

Carrier Tape

Polarity

Polar

Height

5.8mm

Length

5.8mm

Package/Case

2000

Minimum Operating Temperature

-55°C

Diameter

4mm

Pin Count

2

Termination Type

Solder

Maximum Operating Temperature

105°C

Lifetime

2000 h

Standards/Approvals

RoHS

Equivalent Series Resistance ESR

2.3Ω

Series

FT

Leakage Current

5μA

Automotive Standard

AEC-Q200

Ripple Current

85mA

Tolerance ±

20%

Dissipation Factor

200%

Panasonic Series FT Aluminium Electrolytic Capacitor, 10μF Capacitance, 50V DC Voltage - EEEFTH100UAR


This aluminium electrolytic capacitor is designed for surface mount applications. With a capacitance of 10 μF and a voltage rating of 50V DC, it measures 4mm in diameter and 5.8mm in height. Its Compact size makes it suitable for various electronic circuits while adhering to AEC-Q200 automotive standards.

Features & Benefits


• Offers a capacitance Value of 10 μF for versatile applications

• Designed for surface mount technology, simplifying assembly

• Supports voltages up to 50V DC for reliable performance

• Exhibits low equivalent series resistance of 2.3Ω, enhancing efficiency

• Operates effectively across a temperature range of -55 °C to +105 °C

• Features a lifetime of 2000 hours, ensuring long-term stability

Applications


• Used in automotive electronic control units

• Commonly found in power supply circuits

• Utilised in signal processing

• Applied in audio equipment for sound regulation

What input voltages are suitable for this component?


It is designed to handle input voltages up to 50V DC safely, making it Ideal for various electronic applications.

How does the low equivalent series resistance benefit circuit design?


The low ESR improves efficiency by reducing power loss during operation, allowing for better performance in demanding applications.

What is the significance of the component adhering to AEC-Q200 standards?


This ensures the capacitor meets high reliability and performance standards required in automotive environments, assuring users of its durability.

Can this component withstand extreme temperatures?


Yes, it functions effectively within a temperature range of -55 °C to +105 °C, making it suitable for harsh operating conditions.

How does the capacitor's polarised nature affect circuit design?


Being polarised, it must be installed in the correct orientation in circuits, as reversing the polarity can lead to failure or damage.
