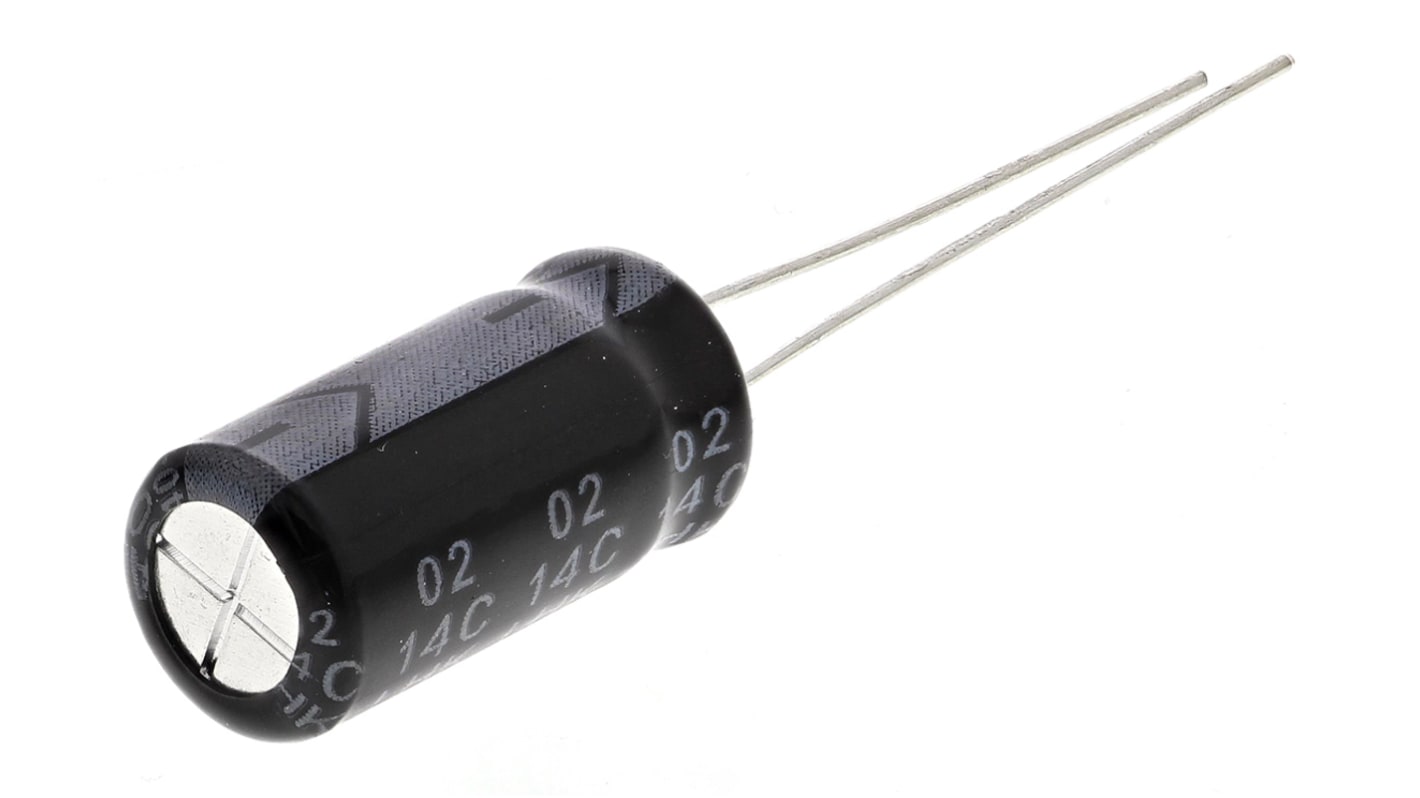

RS PRO 1000μF Aluminium Electrolytic Capacitor 16V dc, Radial, Through Hole
- RS Stock No.:
- 711-0977
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 pack of 25 units)*
£4.55
(exc. VAT)
£5.45
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 950 unit(s) shipping from 20 October 2025
- Plus 175 unit(s) shipping from 20 October 2025
- Plus 750 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 75 | £0.182 | £4.55 |
| 100 - 225 | £0.169 | £4.23 |
| 250 - 475 | £0.155 | £3.88 |
| 500 - 975 | £0.142 | £3.55 |
| 1000 + | £0.13 | £3.25 |
*price indicative
- RS Stock No.:
- 711-0977
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Capacitance | 1000µF | |
| Voltage | 16V dc | |
| Mounting Type | Radial, Through Hole | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 8 (Dia.) x 16mm | |
| Height | 16mm | |
| Length | 16mm | |
| Minimum Operating Temperature | -40°C | |
| Diameter | 8mm | |
| Maximum Operating Temperature | 105°C | |
| Lifetime | 2000h | |
| Lead Pitch | 3.5mm | |
| Polarised | Polar | |
| Leakage Current | <=0.01 CV or 3 μA @ 1 min | |
| Ripple Current | 570mA | |
| Series | RS | |
| Tolerance | ±20% | |
| Dissipation Factor | 16% | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Capacitance 1000µF | ||
Voltage 16V dc | ||
Mounting Type Radial, Through Hole | ||
Technology Aluminium Electrolytic | ||
Dimensions 8 (Dia.) x 16mm | ||
Height 16mm | ||
Length 16mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 8mm | ||
Maximum Operating Temperature 105°C | ||
Lifetime 2000h | ||
Lead Pitch 3.5mm | ||
Polarised Polar | ||
Leakage Current <=0.01 CV or 3 μA @ 1 min | ||
Ripple Current 570mA | ||
Series RS | ||
Tolerance ±20% | ||
Dissipation Factor 16% | ||
- COO (Country of Origin):
- TW
General Purpose Radial 6.3 to 16V
Axial RS Aluminium Capacitors, LHK Series 105°C
Safety vent construction design
Applications include communication equipment and switching power supply
Applications include communication equipment and switching power supply
