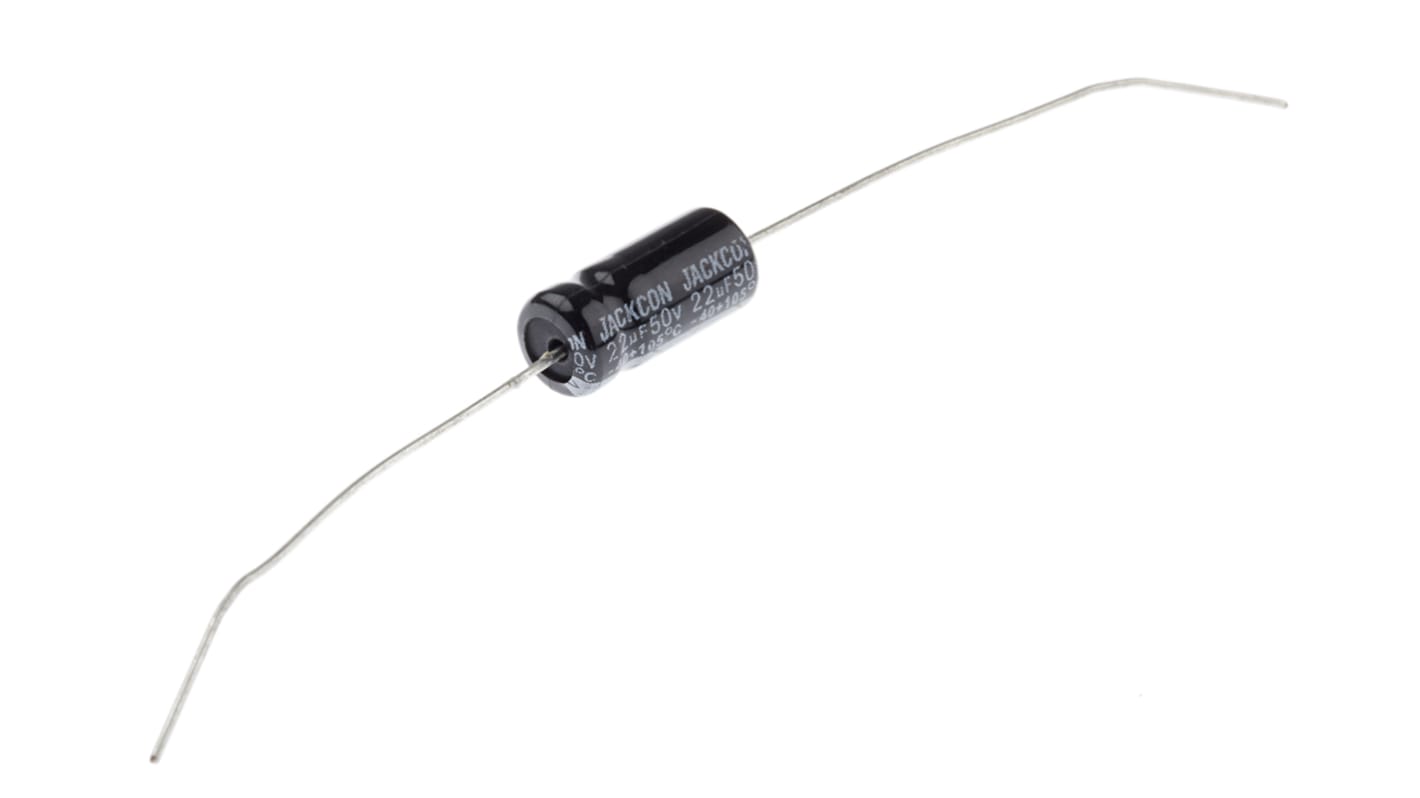

RS PRO 22μF Aluminium Electrolytic Capacitor 50V dc, Axial, Through Hole
- RS Stock No.:
- 707-6436
- Distrelec Article No.:
- 304-25-721
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 pack of 25 units)*
£10.225
(exc. VAT)
£12.275
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 800 unit(s) ready to ship
- Plus 75 unit(s) ready to ship from another location
- Plus 350 unit(s) shipping from 31 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 75 | £0.409 | £10.23 |
| 100 - 225 | £0.38 | £9.50 |
| 250 - 475 | £0.351 | £8.78 |
| 500 - 975 | £0.335 | £8.38 |
| 1000 + | £0.302 | £7.55 |
*price indicative
- RS Stock No.:
- 707-6436
- Distrelec Article No.:
- 304-25-721
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Capacitance | 22µF | |
| Voltage | 50V dc | |
| Mounting Type | Axial, Through Hole | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 6 (Dia.) x 13mm | |
| Height | 13mm | |
| Length | 13mm | |
| Minimum Operating Temperature | -40°C | |
| Diameter | 6mm | |
| Maximum Operating Temperature | 105°C | |
| Lifetime | 1000h | |
| Ripple Current | 62mA | |
| Leakage Current | <=0.02 CV or 3 μA @ 5 min | |
| Tolerance | ±20% | |
| Series | RS | |
| Polarised | Polar | |
| Dissipation Factor | 10% | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Capacitance 22µF | ||
Voltage 50V dc | ||
Mounting Type Axial, Through Hole | ||
Technology Aluminium Electrolytic | ||
Dimensions 6 (Dia.) x 13mm | ||
Height 13mm | ||
Length 13mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 6mm | ||
Maximum Operating Temperature 105°C | ||
Lifetime 1000h | ||
Ripple Current 62mA | ||
Leakage Current <=0.02 CV or 3 μA @ 5 min | ||
Tolerance ±20% | ||
Series RS | ||
Polarised Polar | ||
Dissipation Factor 10% | ||
- COO (Country of Origin):
- TW
RS Aluminium Axial Capacitors
General Purpose Axial RS Aluminium Capacitors, LAK Series 105°C
Safety vent construction design
Applications include communication equipment and switching power supply
Applications include communication equipment and switching power supply
