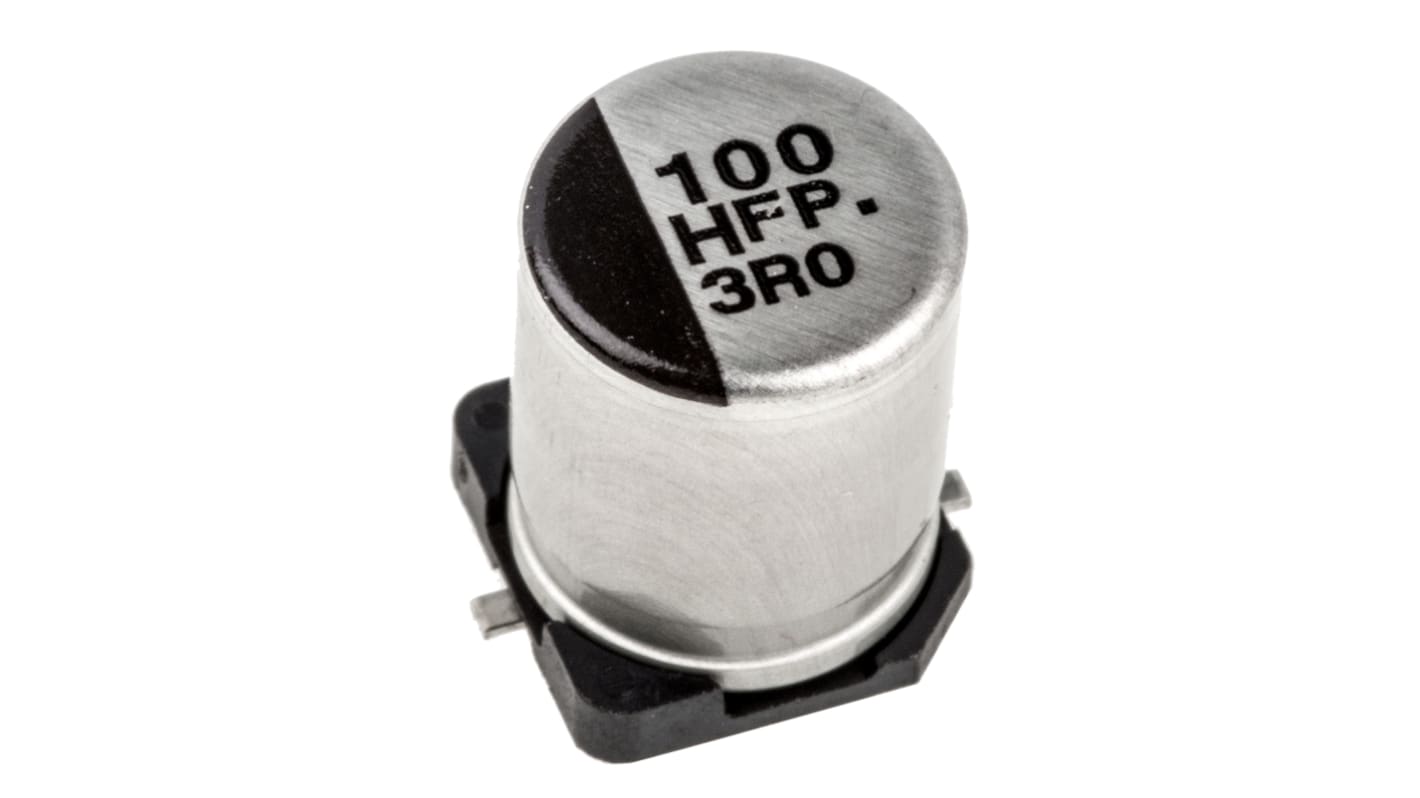

Panasonic 100 μF Aluminium Electrolytic Capacitor 50V dc, Surface Mount Solder - EEEFP1H101AP 500

View all Aluminium Capacitors
Bulk discount available

Subtotal (1 pack of 5 units)*

£4.09

(exc. VAT)

£4.91

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later

Units
Per unit
Per Pack*
5 - 45£0.818£4.09
50 - 95£0.766£3.83
100 - 245£0.722£3.61
250 - 495£0.668£3.34
500 +£0.608£3.04

*price indicative

Packaging Options:
RS Stock No.:
698-9101
Distrelec Article No.:
304-43-748
Mfr. Part No.:
EEEFP1H101AP
Brand:
Panasonic
Find similar products by selecting one or more attributes.
Select all

Brand

Panasonic

Capacitance

100μF

Product Type

Aluminium Electrolytic Capacitor

Voltage

50V dc

Mount Type

Surface Mount

Packaging

Carrier Tape

Polarity

Polar

Height

10.2mm

Length

10.2mm

Package/Case

500

Minimum Operating Temperature

-55°C

Diameter

8mm

Termination Type

Solder

Pin Count

2

Maximum Operating Temperature

105°C

Standards/Approvals

RoHS

Lifetime

2000 h

Leakage Current

3μA

Ripple Current

670mA

Equivalent Series Resistance ESR

180mΩ

Tolerance ±

20%

Series

FP

Automotive Standard

AEC-Q200

Dissipation Factor

200%

Panasonic Series FP Aluminium Electrolytic Capacitor, 100μF Capacitance, 50V DC Voltage - EEEFP1H101AP


This aluminium electrolytic capacitor is designed for efficient performance in various electronic applications. With a capacitance of 100 μF and a voltage rating of 50V DC, it provides reliable energy storage. Measuring 8mm in diameter and 10.2mm in height, this component is suitable for surface mount installation, making it ideal for compact electronic devices. The capacitor ensures a long lifetime of up to 2000 hours under optimal conditions.

Features & Benefits


• Designed for surface mount technology, enhancing design flexibility

• Polarised configuration ensures proper installation and efficiency

• High ripple current rating of 670 mA supports robust performance

• Low Equivalent Series Resistance (180 mΩ) minimises power loss

• Wide operating temperature range of -55 °C to +105 °C suits diverse environments

• Tolerance of ±20% provides reliable capacitance under varying conditions

Applications


• Used for power supply filtering in industrial automation

• Ideal for signal coupling and decoupling in electronic circuits

• Employed in consumer electronics for energy storage needs

• Utilised in automotive for stability control systems

What is the expected performance and longevity of this component?


The capacitor is rated for a lifetime of 2000 hours, operating effectively within a temperature range of -55 °C to +105 °C, ensuring it can endure demanding environments.

How does the polarised design impact its usage?


The polarised design aids in correct installation, allowing the capacitor to function optimally by preventing reverse polarity connections that could lead to failure.

What applications benefit from this capacitor’s high ripple current rating?


The high ripple current rating of 670 mA makes it particularly useful in circuits where frequent voltage fluctuations occur, such as in power supply systems and motor drives.
