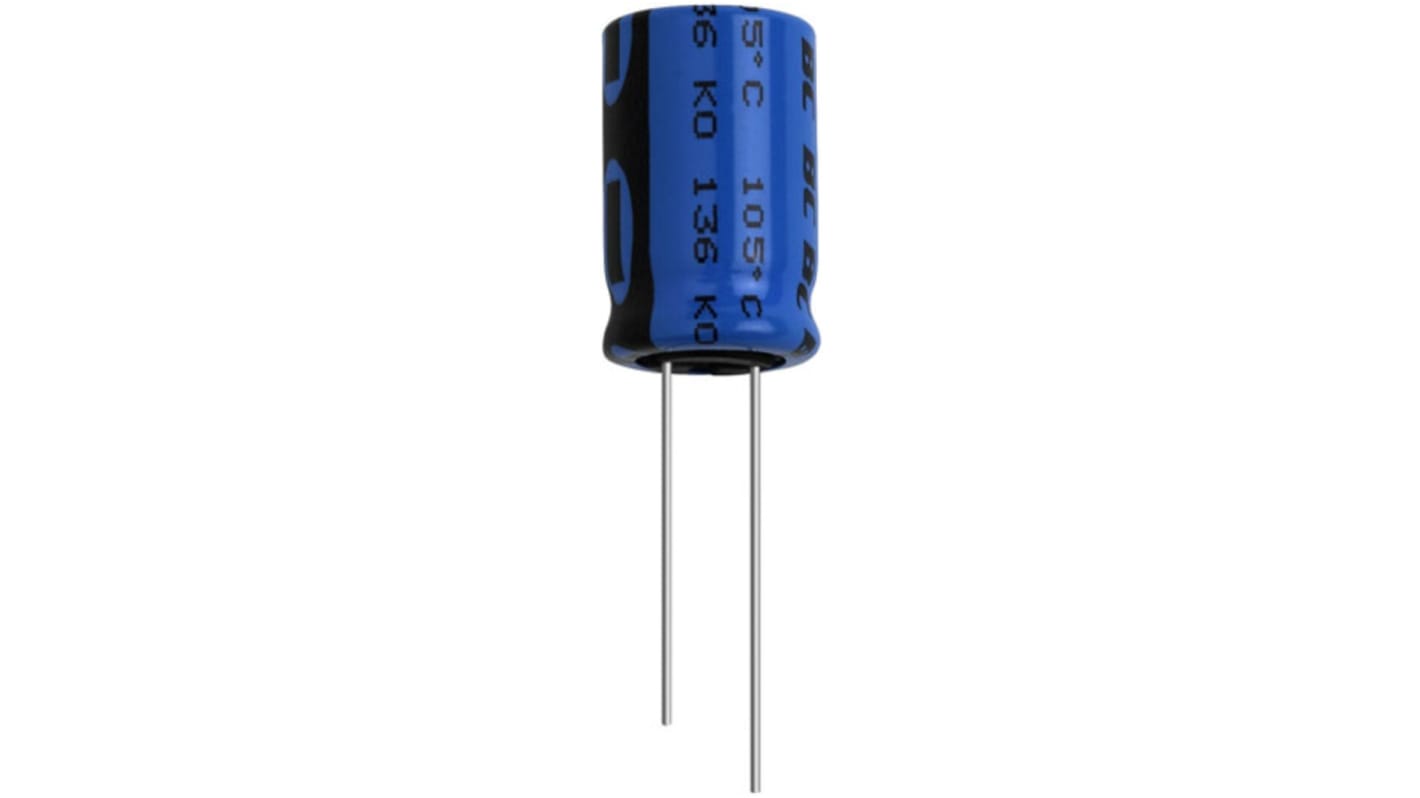

Vishay 100 μF Capacitor 50V dc, Through Hole - MAL213661101E3 Radial
- RS Stock No.:
- 280-6740
- Mfr. Part No.:
- MAL213661101E3
- Brand:
- Vishay
Get a bulk buy discount
Add 50 more to save £2.05
View bulk pricing optionsSubtotal (1 bag of 10 units)*
£7.59
(exc. VAT)
£9.11
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 110 unit(s) shipping from 16 November 2026
- Plus 560 unit(s) shipping from 23 November 2026
- Plus 2,000 unit(s) shipping from 09 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* | Saving |
|---|---|---|---|
| 10 - 40 | £0.759 | £7.59 | - |
| 50 - 90 | £0.718 | £7.18 | £2.05 |
| 100 - 240 | £0.615 | £6.15 | £14.40 |
| 250 + | £0.513 | £5.13 | £61.50 |
*price indicative
- RS Stock No.:
- 280-6740
- Mfr. Part No.:
- MAL213661101E3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Capacitance | 100μF | |
| Product Type | Capacitor | |
| Voltage | 50V dc | |
| Mount Type | Through Hole | |
| Polarity | Polar | |
| Minimum Operating Temperature | -55°C | |
| Diameter | 10mm | |
| Termination Type | Radial | |
| Capacitor Ripple Current | 480mA | |
| Pin Count | 2 | |
| Maximum Operating Temperature | 105°C | |
| Lifetime | 10000 h | |
| Lead Pitch | 5mm | |
| Standards/Approvals | IEC 60384-4/EN130300 | |
| Series | 136 RVI | |
| Automotive Standard | No | |
| Tolerance | ±20 % | |
| Leakage Current | 50μA | |
| Dissipation Factor | 0.1% | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Capacitance 100μF | ||
Product Type Capacitor | ||
Voltage 50V dc | ||
Mount Type Through Hole | ||
Polarity Polar | ||
Minimum Operating Temperature -55°C | ||
Diameter 10mm | ||
Termination Type Radial | ||
Capacitor Ripple Current 480mA | ||
Pin Count 2 | ||
Maximum Operating Temperature 105°C | ||
Lifetime 10000 h | ||
Lead Pitch 5mm | ||
Standards/Approvals IEC 60384-4/EN130300 | ||
Series 136 RVI | ||
Automotive Standard No | ||
Tolerance ±20 % | ||
Leakage Current 50μA | ||
Dissipation Factor 0.1% | ||
- COO (Country of Origin):
- AT
The Vishay aluminium electrolytic capacitors has radial very low impedance. That comes with radial leads, cylindrical aluminium case with pressure relief and insulated with a blue sleeve. Used for general industrial, EDP, audio video and telecommunications applications.
Charge and discharge proof
Very low impedance and low ESR
