Vishay 1000 μF Capacitor 400V dc, Through Hole - MAL229956102E3
- RS Stock No.:
- 280-0461
- Mfr. Part No.:
- MAL229956102E3
- Brand:
- Vishay
Get a bulk buy discount
Add 5 more to save 3%
View bulk pricing optionsSubtotal (1 unit)*
£33.58
(exc. VAT)
£40.30
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 101 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Saving |
|---|---|---|
| 1 - 4 | £33.58 | - |
| 5 - 9 | £32.24 | 3% |
| 10 - 19 | £29.55 | 12% |
| 20 + | £26.86 | 20% |
*price indicative
- RS Stock No.:
- 280-0461
- Mfr. Part No.:
- MAL229956102E3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Capacitance | 1000μF | |
| Product Type | Capacitor | |
| Voltage | 400V dc | |
| Mount Type | Through Hole | |
| Packaging | Cardboard Box | |
| Polarity | Polar | |
| Length | 70mm | |
| Minimum Operating Temperature | -40°C | |
| Diameter | 35mm | |
| Termination Type | Snap-In | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | IEC 60062, IEC 60384-4/EN 130300, RoHS | |
| Lifetime | 5000 h | |
| Tolerance | ±20 % | |
| Equivalent Series Resistance ESR | 100mΩ | |
| Automotive Standard | No | |
| Series | 299 PHL-4TSI | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Capacitance 1000μF | ||
Product Type Capacitor | ||
Voltage 400V dc | ||
Mount Type Through Hole | ||
Packaging Cardboard Box | ||
Polarity Polar | ||
Length 70mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 35mm | ||
Termination Type Snap-In | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals IEC 60062, IEC 60384-4/EN 130300, RoHS | ||
Lifetime 5000 h | ||
Tolerance ±20 % | ||
Equivalent Series Resistance ESR 100mΩ | ||
Automotive Standard No | ||
Series 299 PHL-4TSI | ||
- COO (Country of Origin):
- AT

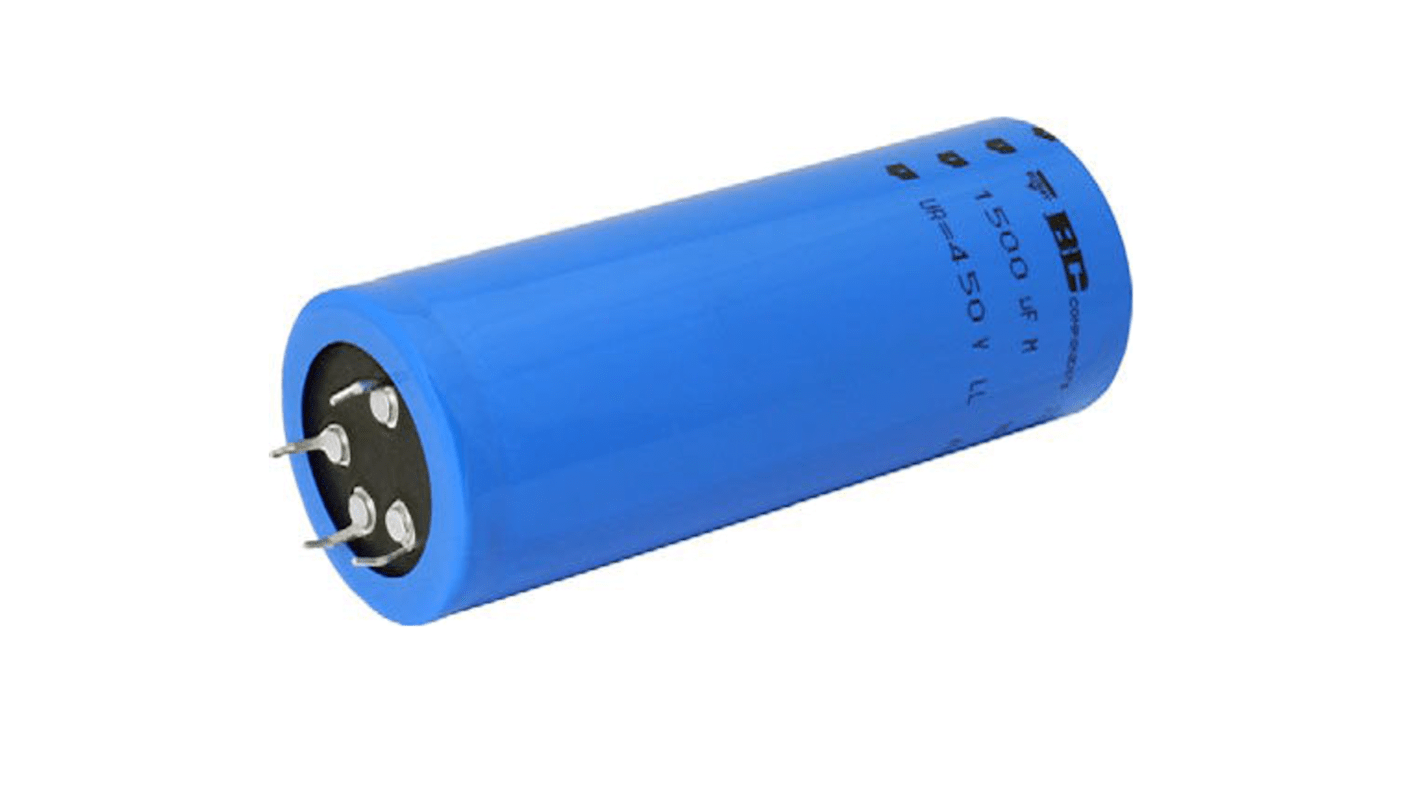

The Vishay Aluminium electrolytic capacitors are built in cylindrical aluminium case with 4 terminal snap in version. This aluminium electrolytic capacitor has a long useful life and high ripple current capability.
Lead free
RoHS compliant
Insulated with a blue sleeve
High ripple current capability
Stable mounting and keyed polarity
Pressure relief on the side of the aluminium case
