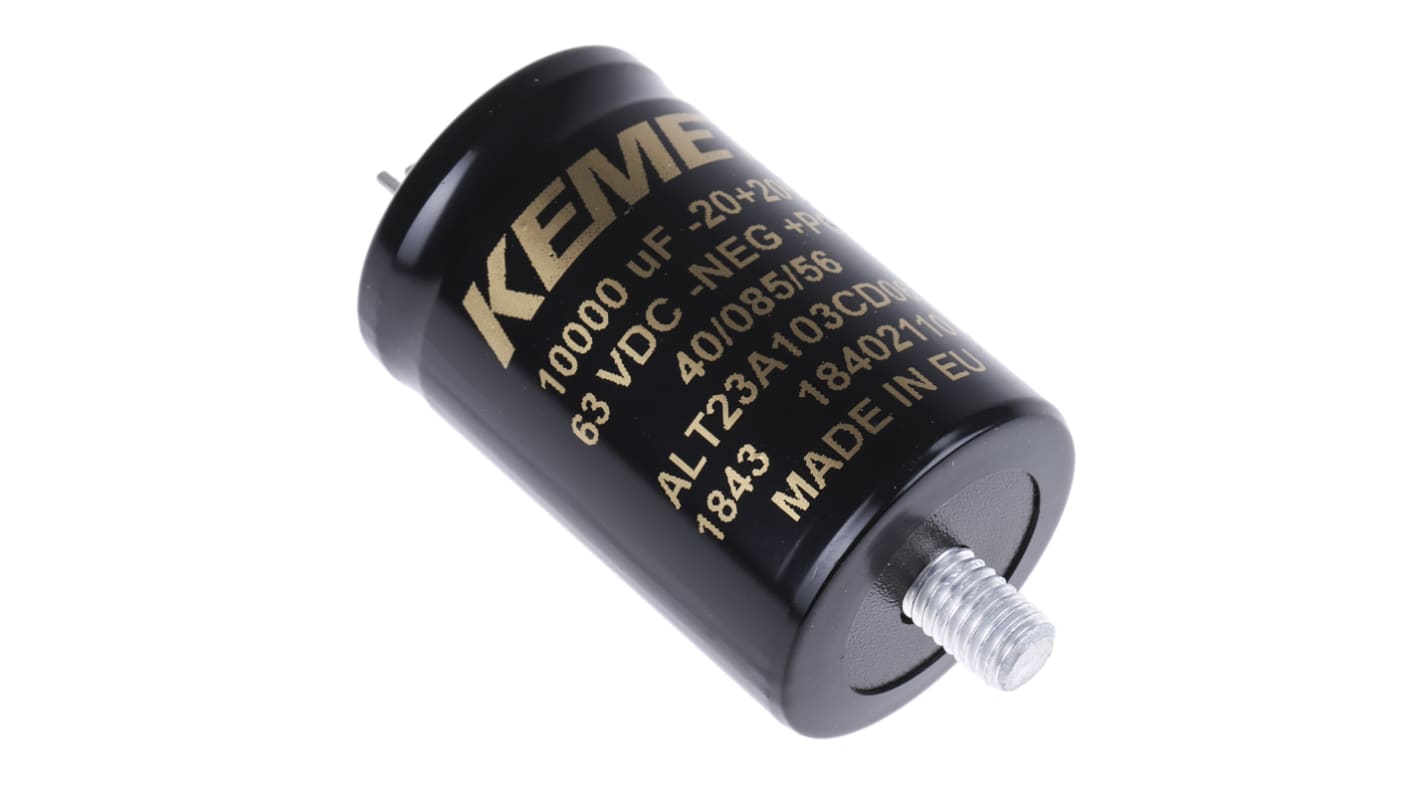

KEMET 10000μF Aluminium Electrolytic Capacitor 63V dc, Stud Mount - ALT23A103CD063
- RS Stock No.:
- 228-0488
- Mfr. Part No.:
- ALT23A103CD063
- Brand:
- KEMET
Bulk discount available
Subtotal (1 unit)*
£20.34
(exc. VAT)
£24.41
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 38 unit(s) shipping from 27 October 2025
- Plus 11 unit(s) shipping from 27 October 2025
- Plus 784 unit(s) shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £20.34 |
| 10 - 24 | £19.12 |
| 25 - 49 | £17.90 |
| 50 - 99 | £16.68 |
| 100 + | £15.15 |
*price indicative
- RS Stock No.:
- 228-0488
- Mfr. Part No.:
- ALT23A103CD063
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Capacitance | 10000µF | |
| Voltage | 63V dc | |
| Mounting Type | Stud Mount | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 35 (Dia.) x 55mm | |
| Length | 55mm | |
| Minimum Operating Temperature | -40°C | |
| Diameter | 35mm | |
| Maximum Operating Temperature | +85°C | |
| Lifetime | 18000 h @ +85 °C/63V dc/Ir | |
| Polarised | Polar | |
| Tolerance | ±20% | |
| Leakage Current | 3.78 mA | |
| Series | ALT23 | |
| Ripple Current | 4.93 A @ 100Hz | |
Select all | ||
|---|---|---|
Brand KEMET | ||
Capacitance 10000µF | ||
Voltage 63V dc | ||
Mounting Type Stud Mount | ||
Technology Aluminium Electrolytic | ||
Dimensions 35 (Dia.) x 55mm | ||
Length 55mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 35mm | ||
Maximum Operating Temperature +85°C | ||
Lifetime 18000 h @ +85 °C/63V dc/Ir | ||
Polarised Polar | ||
Tolerance ±20% | ||
Leakage Current 3.78 mA | ||
Series ALT23 | ||
Ripple Current 4.93 A @ 100Hz | ||
ALT23A Series - Stud mounting
Long-life stud mounting solder tag aluminium electrolytic capacitors
For industrial applications which require long term stability and reliability
For industrial applications which require long term stability and reliability
Note
Stud fixing nut not supplied. The can will be at the negative terminal potential.
Clamp & Stud Fixing 85°C
